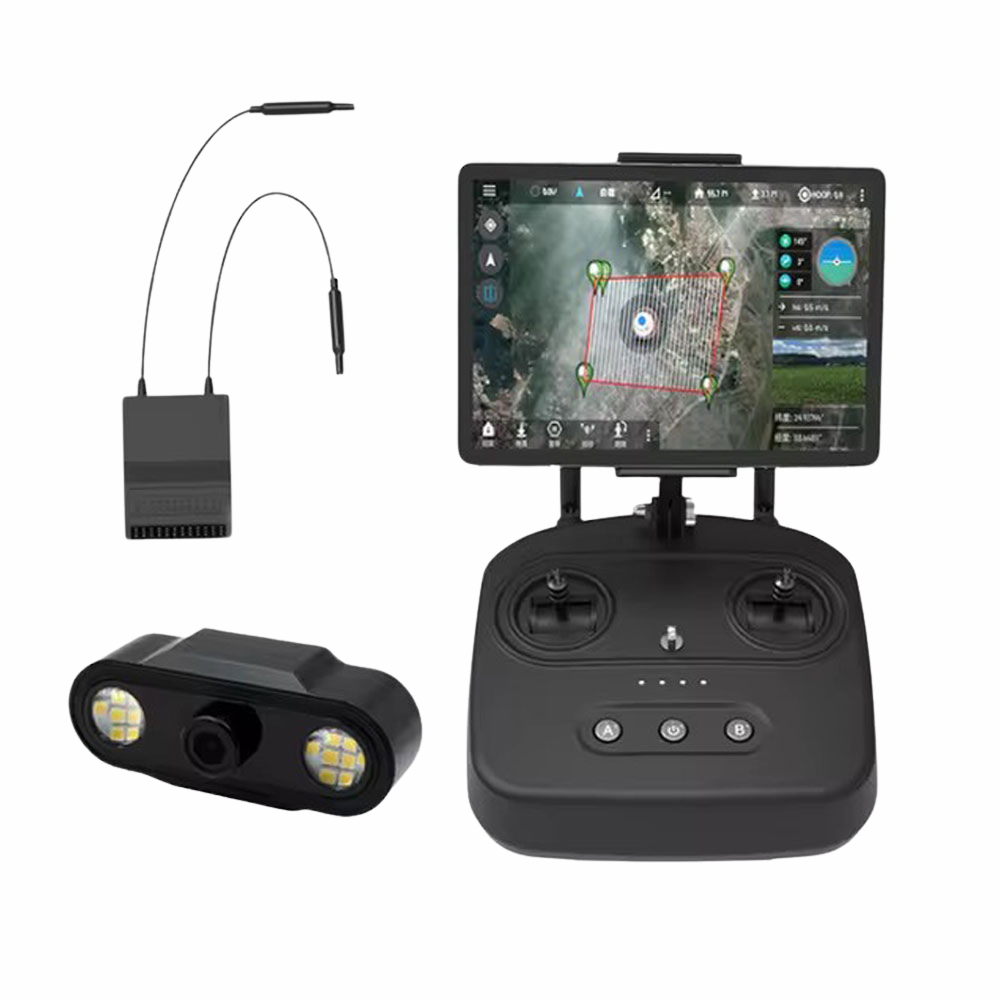

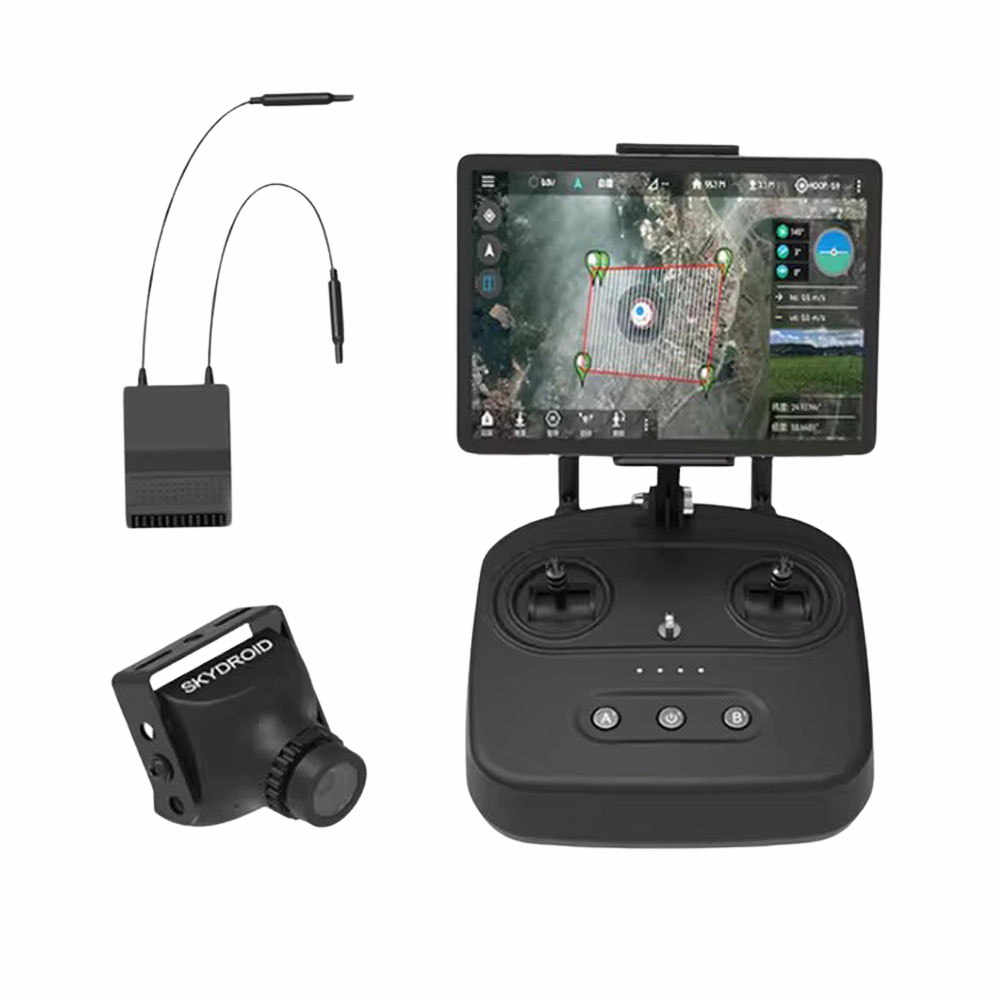

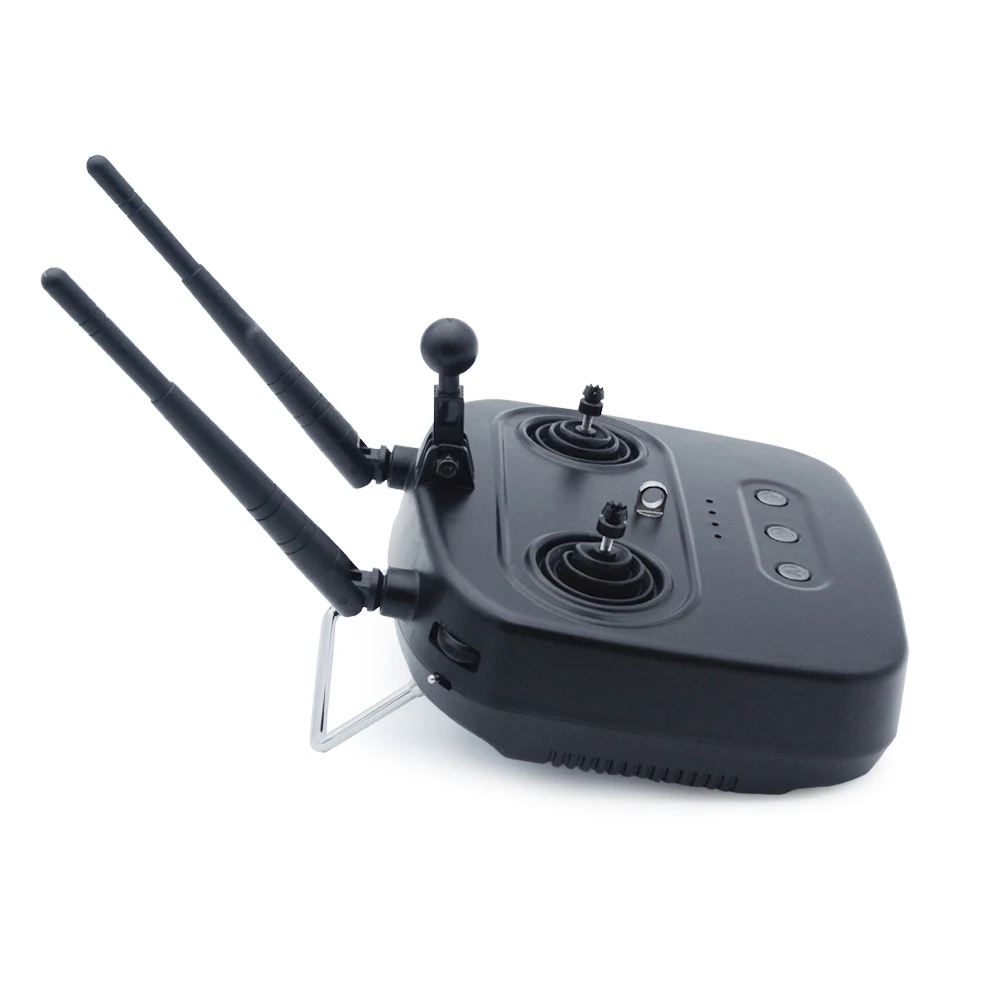

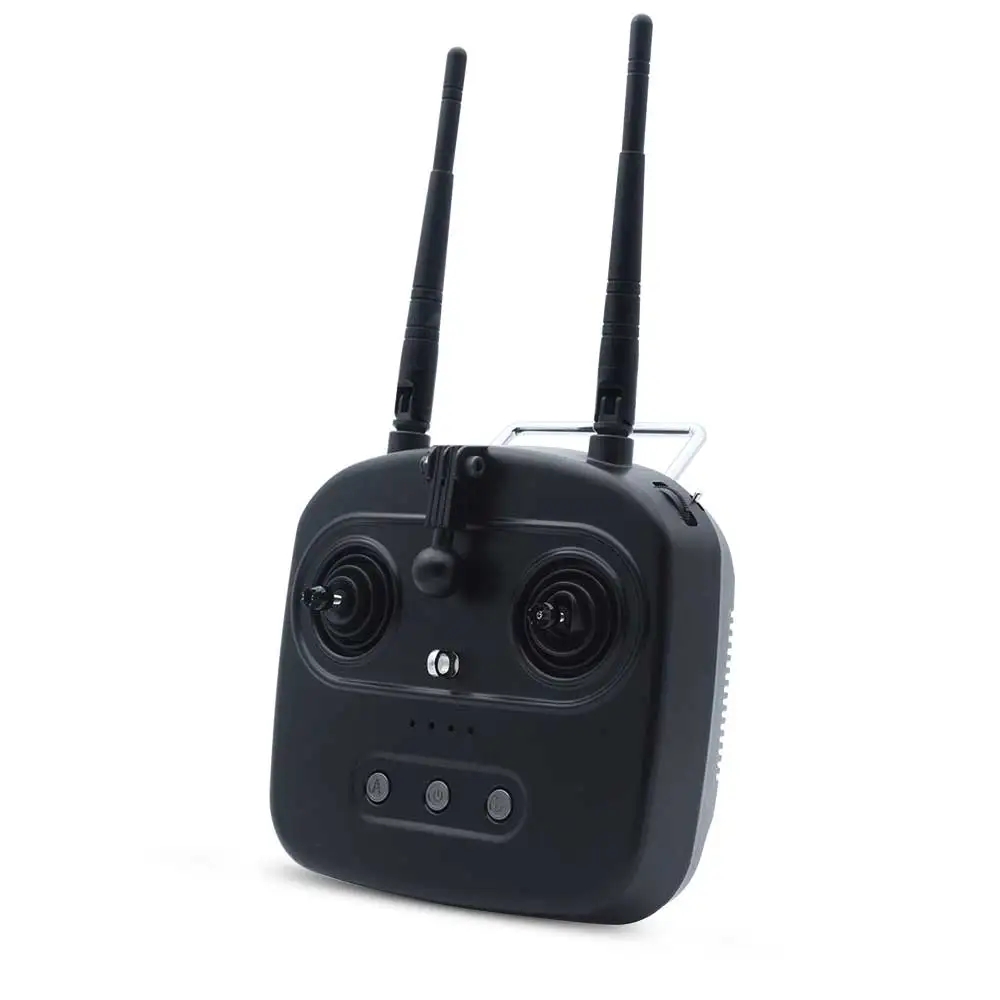

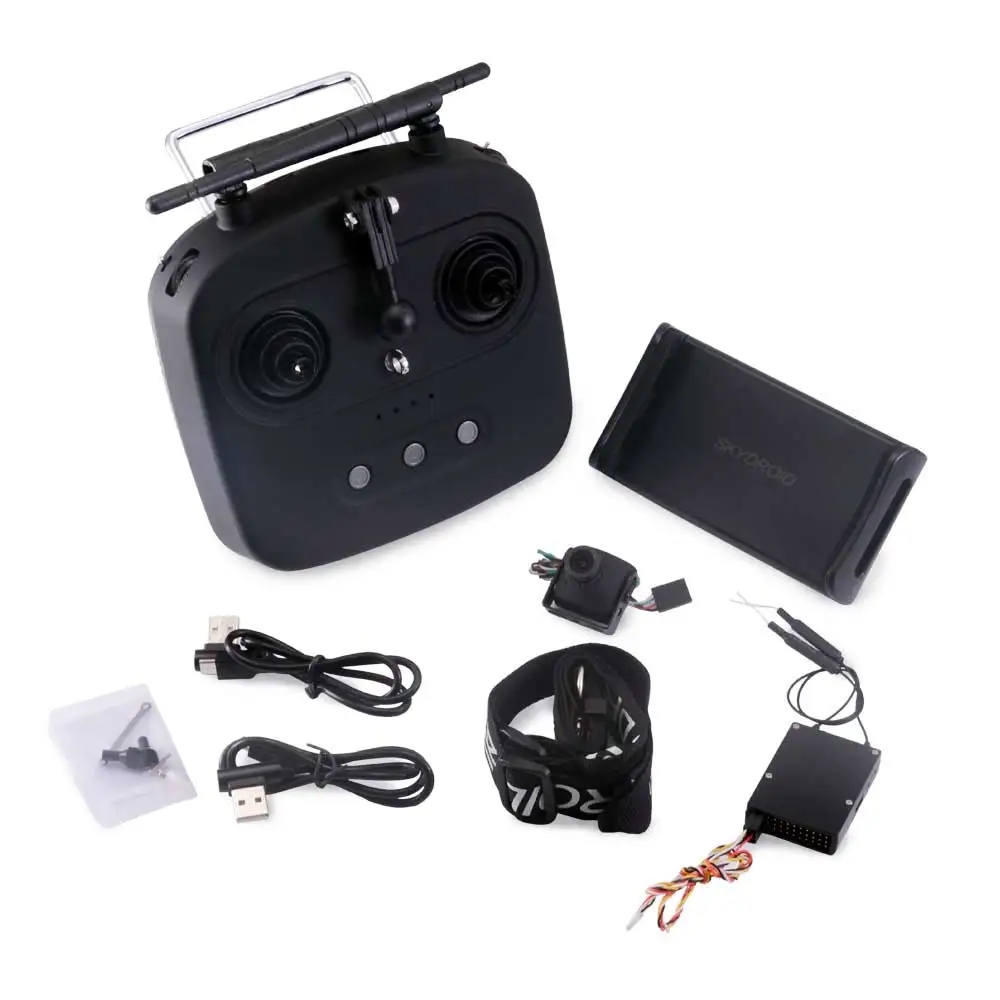

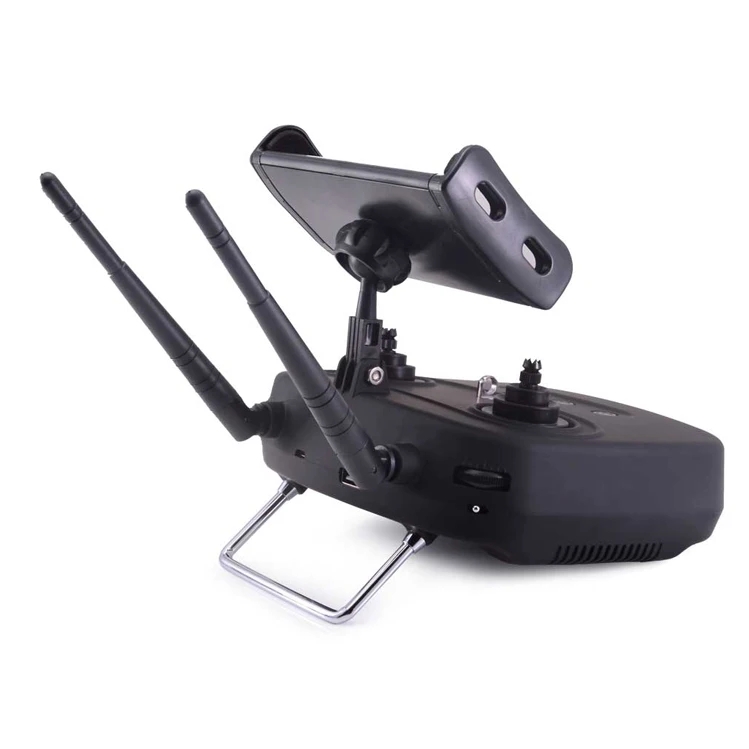

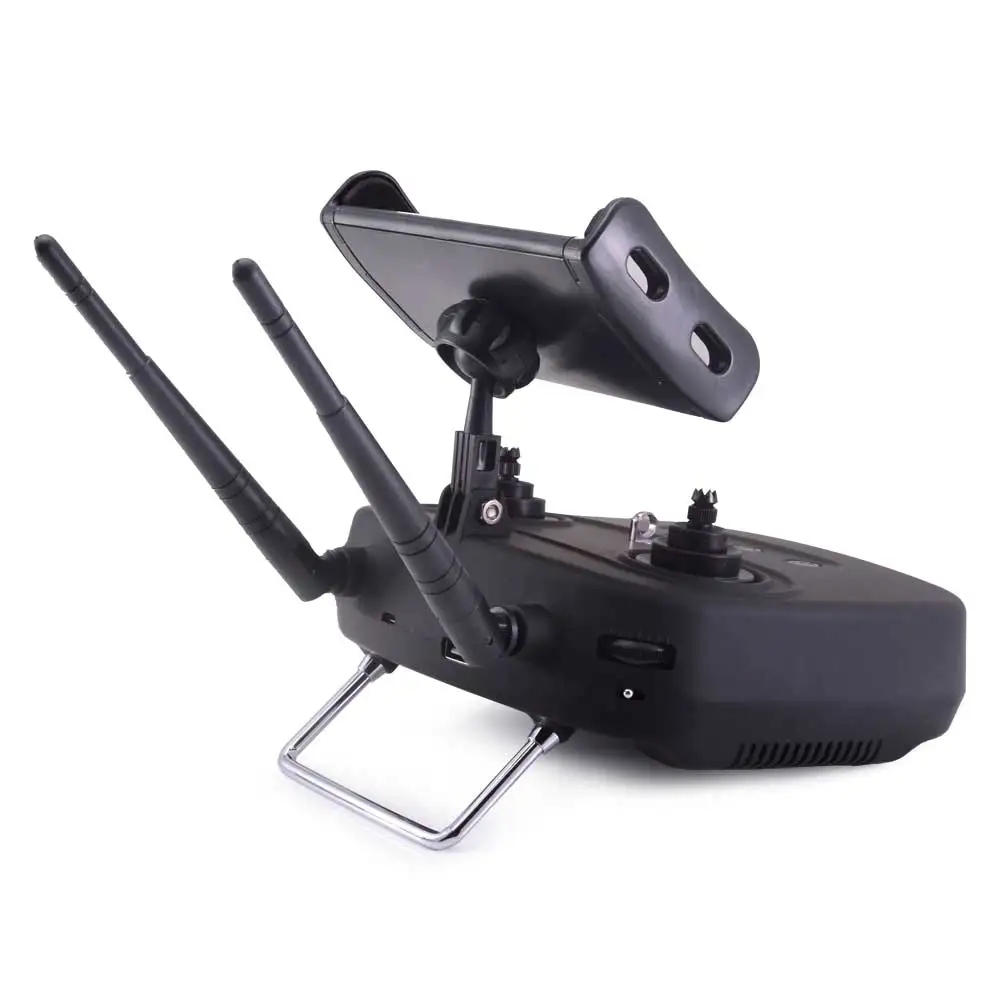

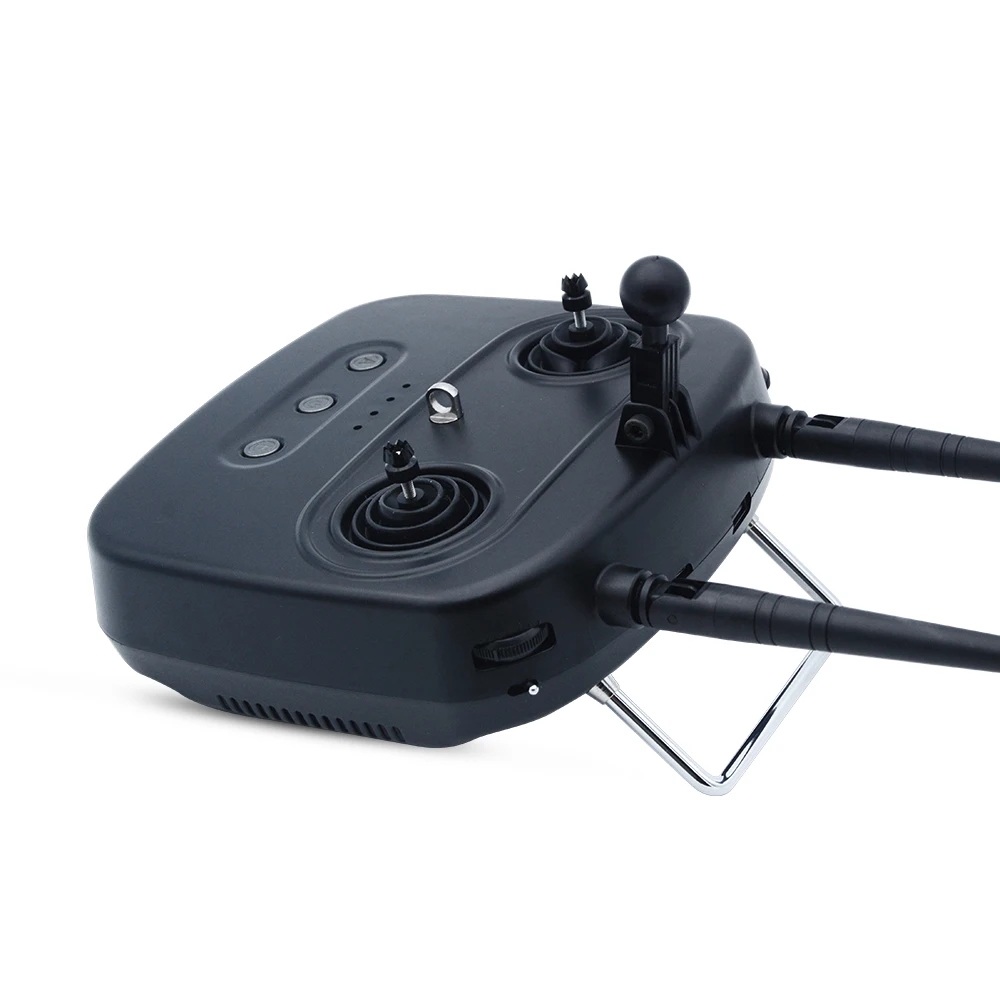

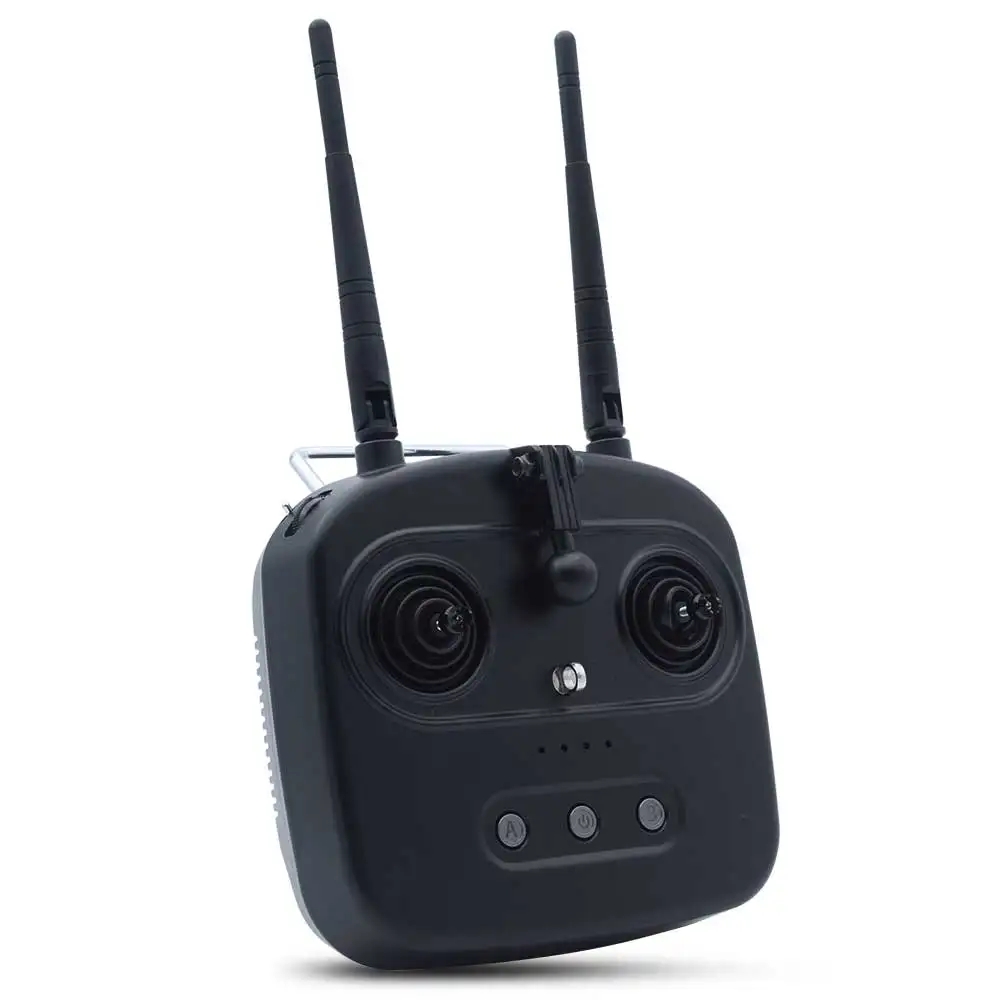

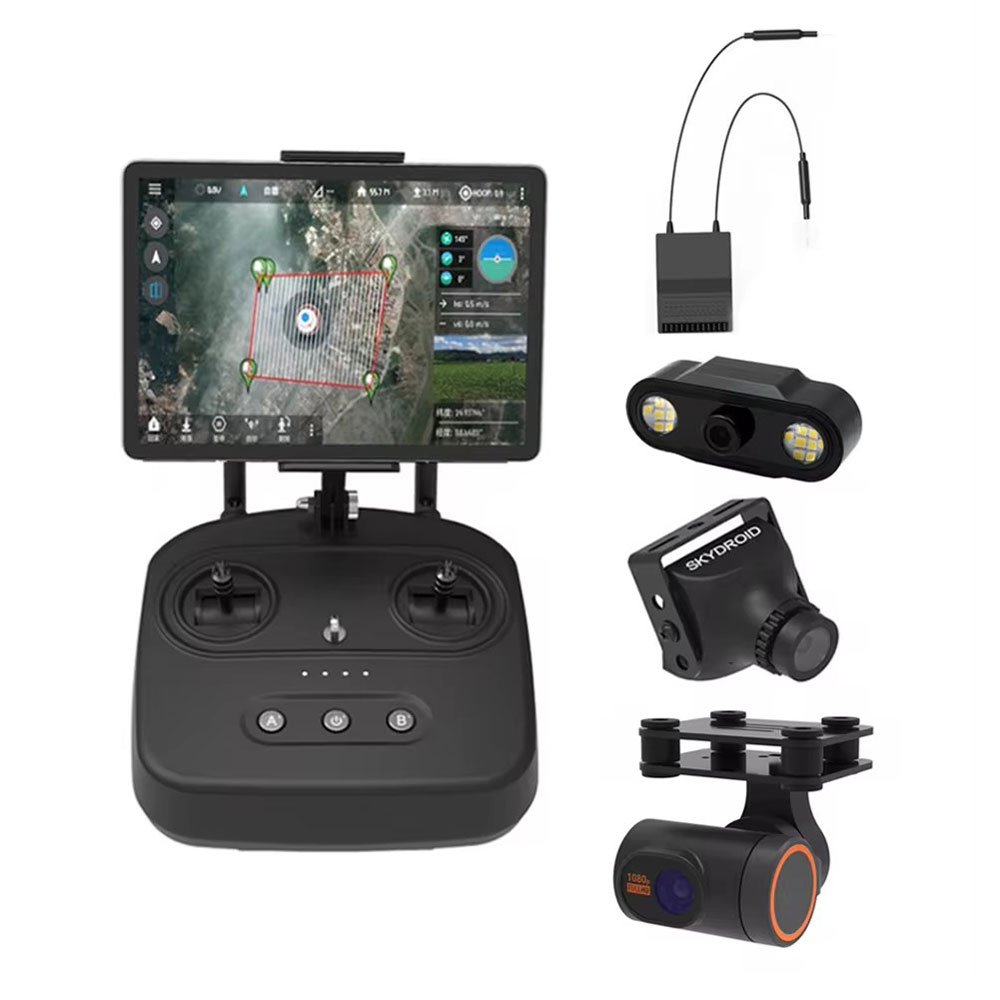

Skydroid T10 Long Range Radio System with Telemetry and FPV
The Skydroid T10 is an advanced remote control system integrated with digital video transmission, featuring dual antennas and dual RF modules that can achieve a maximum range of up to 10 kilometers. Utilizing the latest Frequency Hopping Spread Spectrum (FHSS) technology, it ensures perfect control and operation. This system is specifically designed for a wide range of applications, including UAVs, helicopters, fixed-wing aircraft, multi-rotors, and boats. It supports video transmission (with optional cameras), data link, and UAV control.

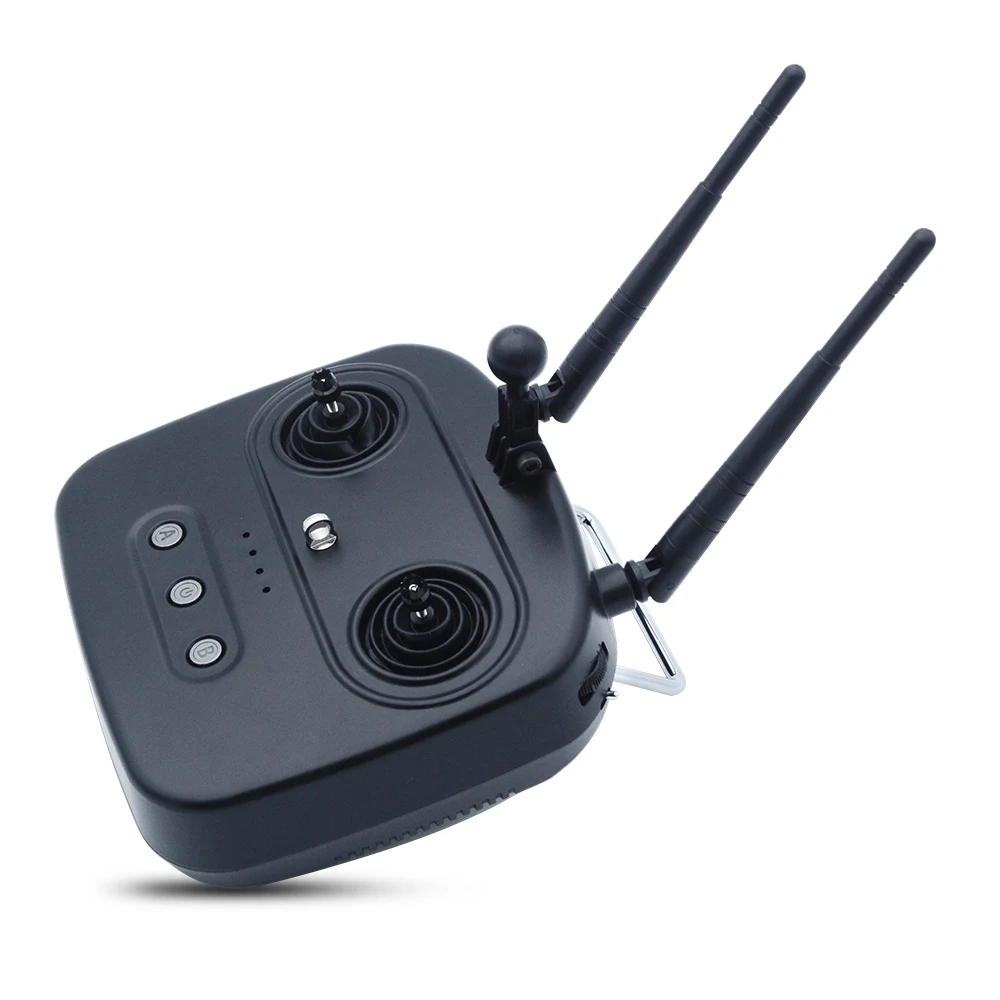

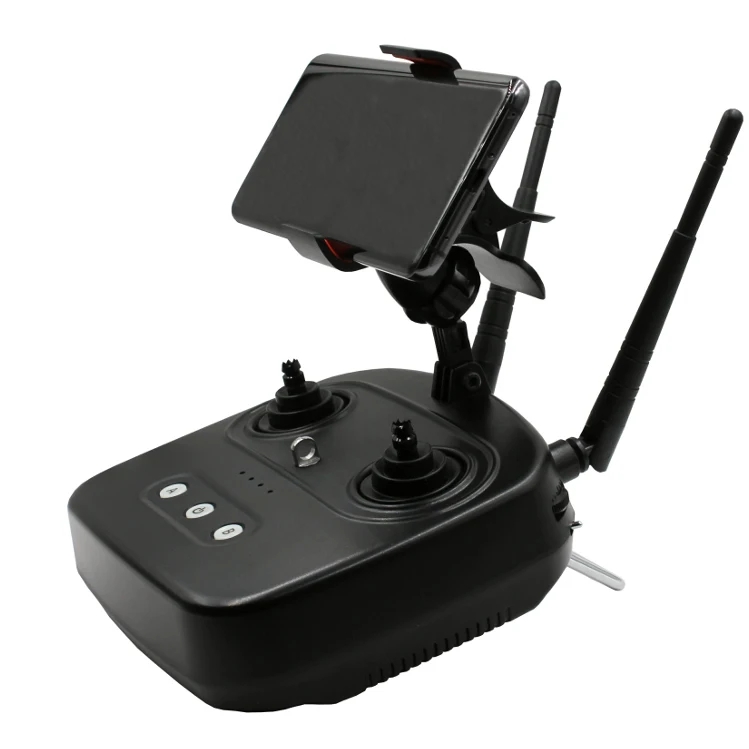

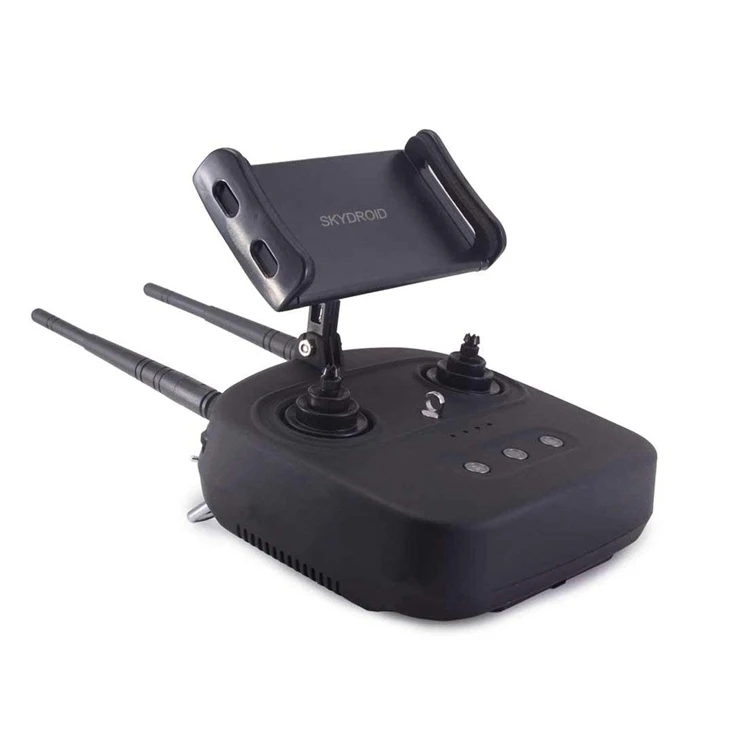

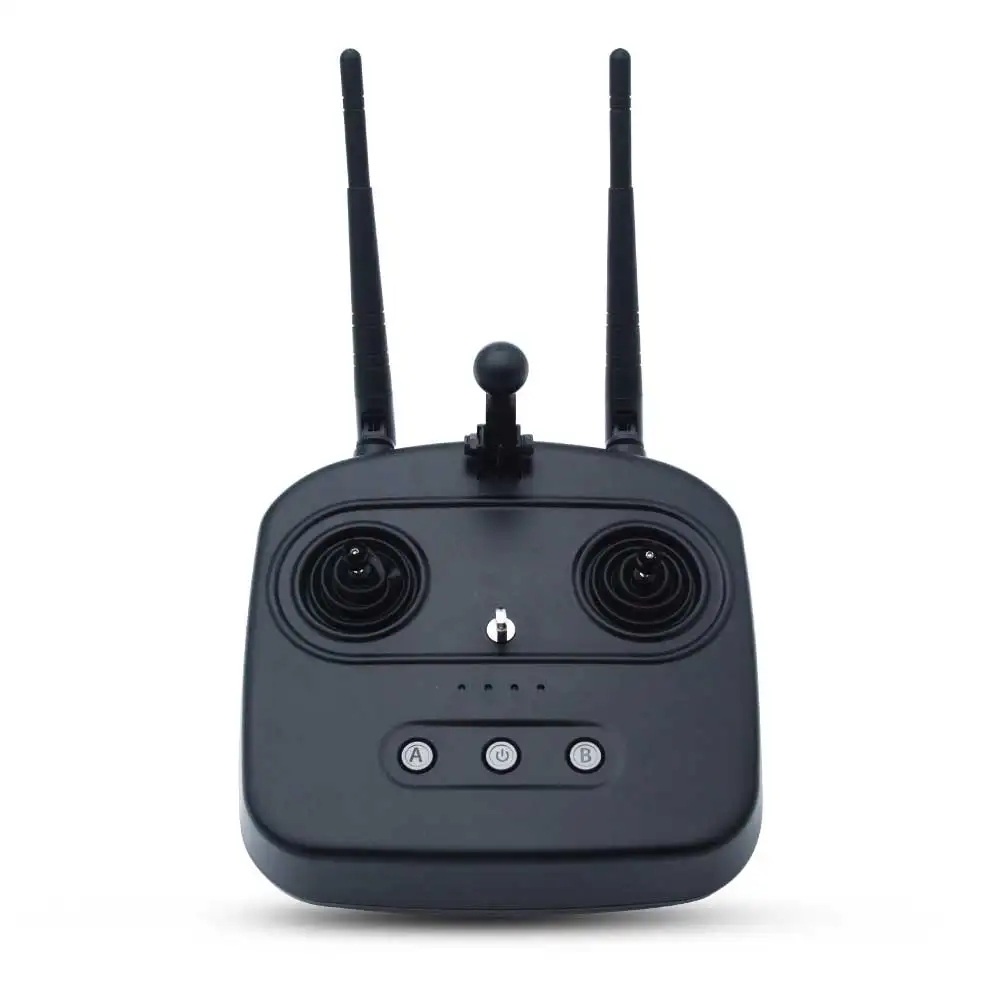

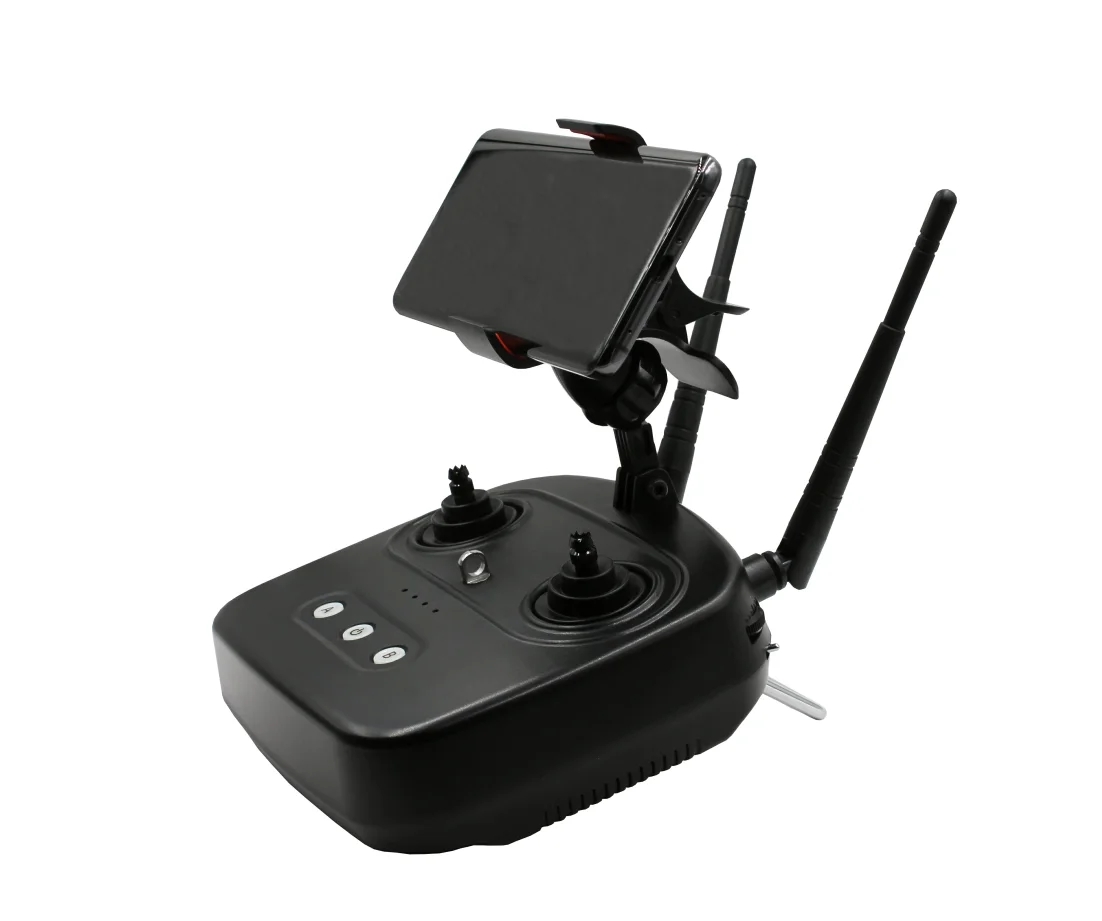

Skydroid T10 Remote Controller Features

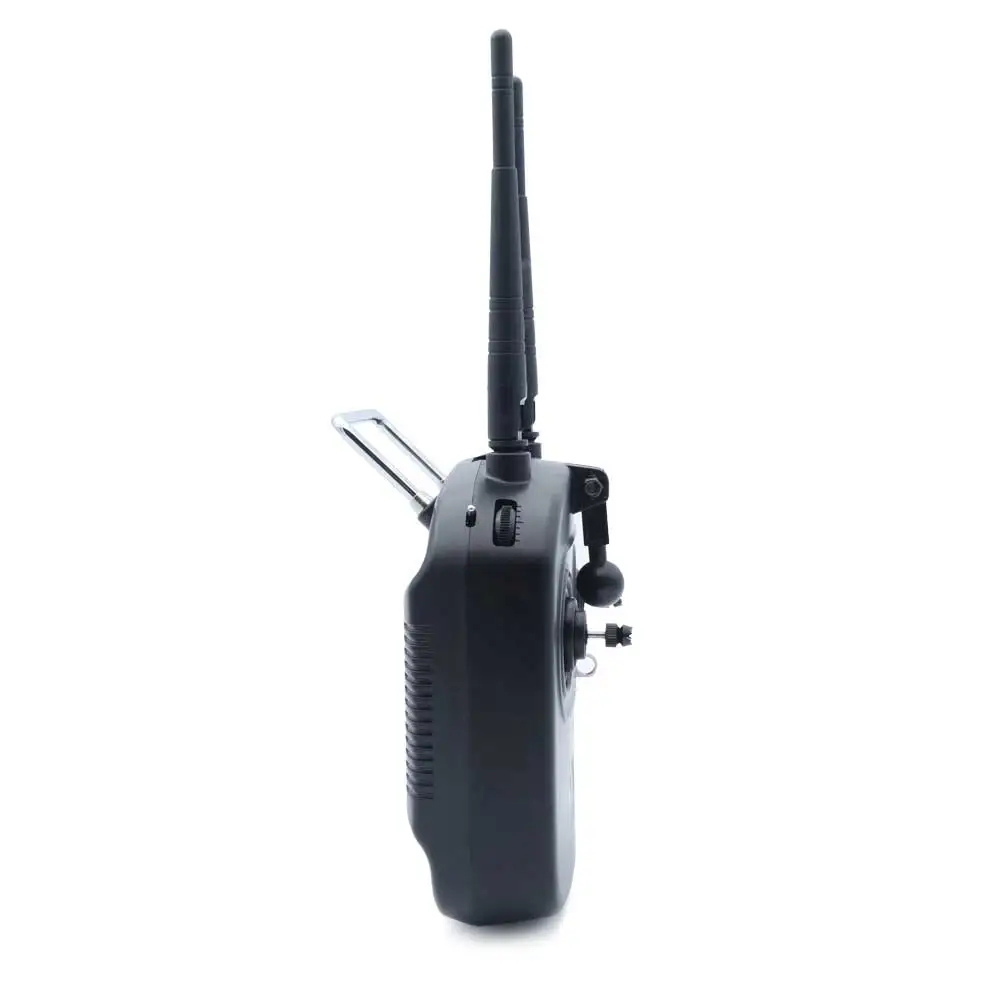

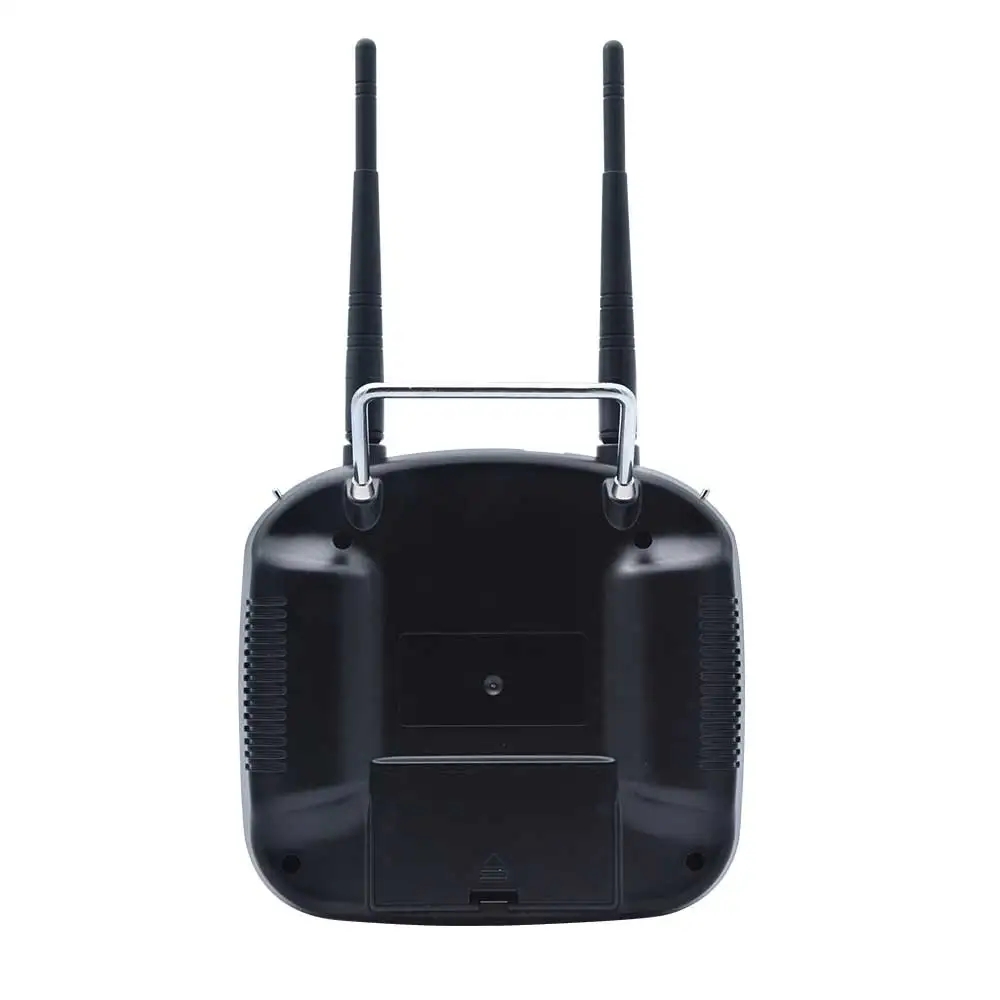

Dual Antennas and Dual RF Modules: Equipped with full-angle high-gain antennas and integrated control algorithms, the T10 leverages the latest FHSS technology to ensure reliable communication.
Digital Video Transmission: Capable of transmitting video signals up to 10 kilometers away.
Parameter Adjustments via APP: The traditional OSD (On-Screen Display) has been upgraded to a touch panel control, allowing users to adjust parameters through a connected smartphone via Bluetooth. It also supports S-BUS, PPM, PWM, and serial ports for external devices.
APP Connectivity: Connect to the "Tower" APP via Bluetooth to switch operation modes, adjust parameters such as forward/reverse data, rudder volume, channel binding, runaway protection values, S-BUS, PPM output, and digital baud rates. The system provides functions to save and load parameters.

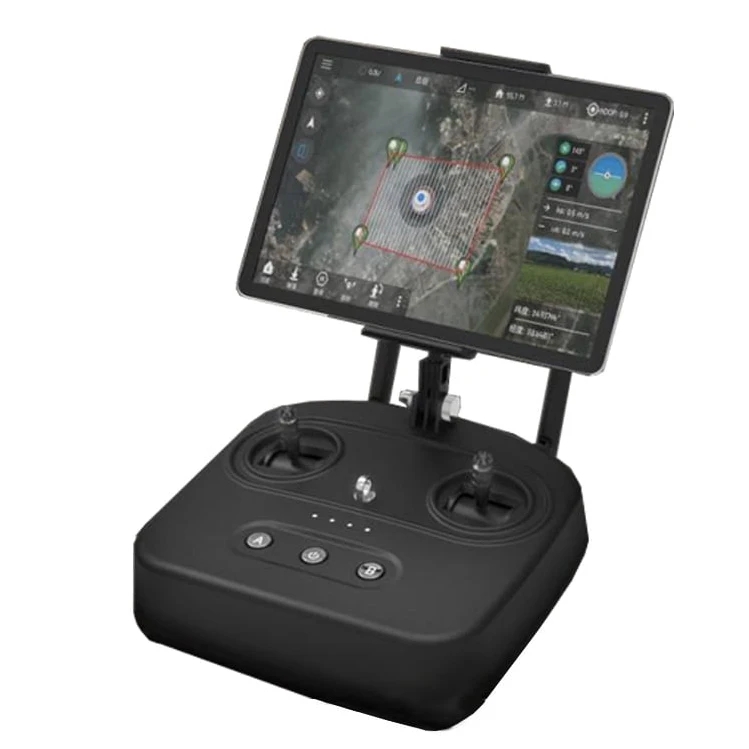

Compatibility with Pixhawk Systems: The T10 ensures optimal compatibility with Pixhawk systems. The large map view in the Tower APP allows for easy waypoint selection and route planning, including a one-key return-to-home feature. The T10 also supports Tower, QGC, JIYI, TOPXGUN, and BOYING APPs.
Power and Endurance: Powered by two 18650 batteries (sold separately), the T10 offers over 20 hours of endurance with a 20 dBm transmission frequency.
Integrated Data Link: Combines video data transmission and telemetry into a single, ultra-compact unit. The transmitter features folding brackets for portability and is designed to be strong and stable.

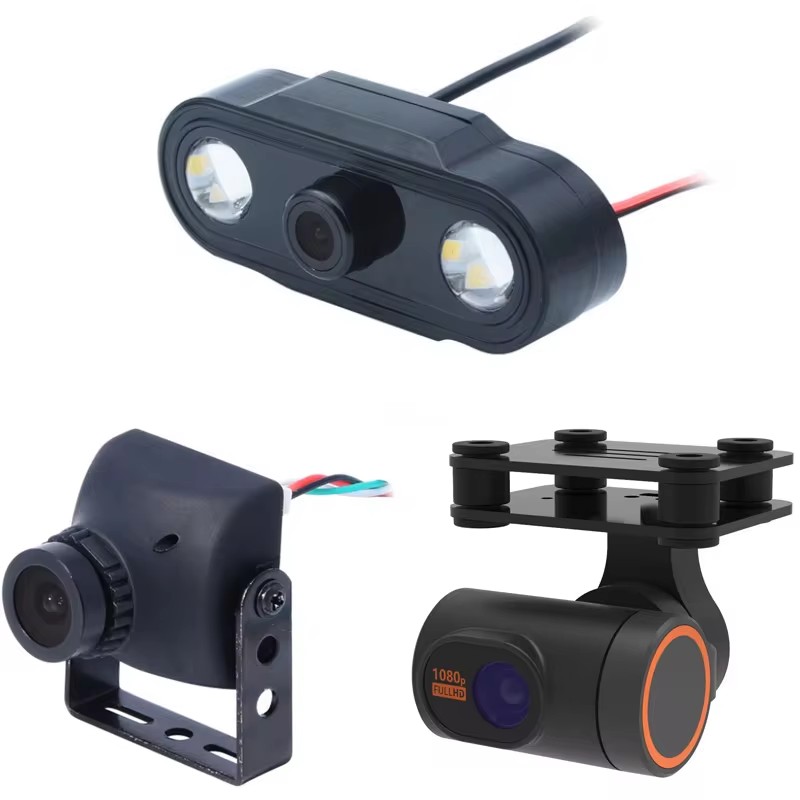

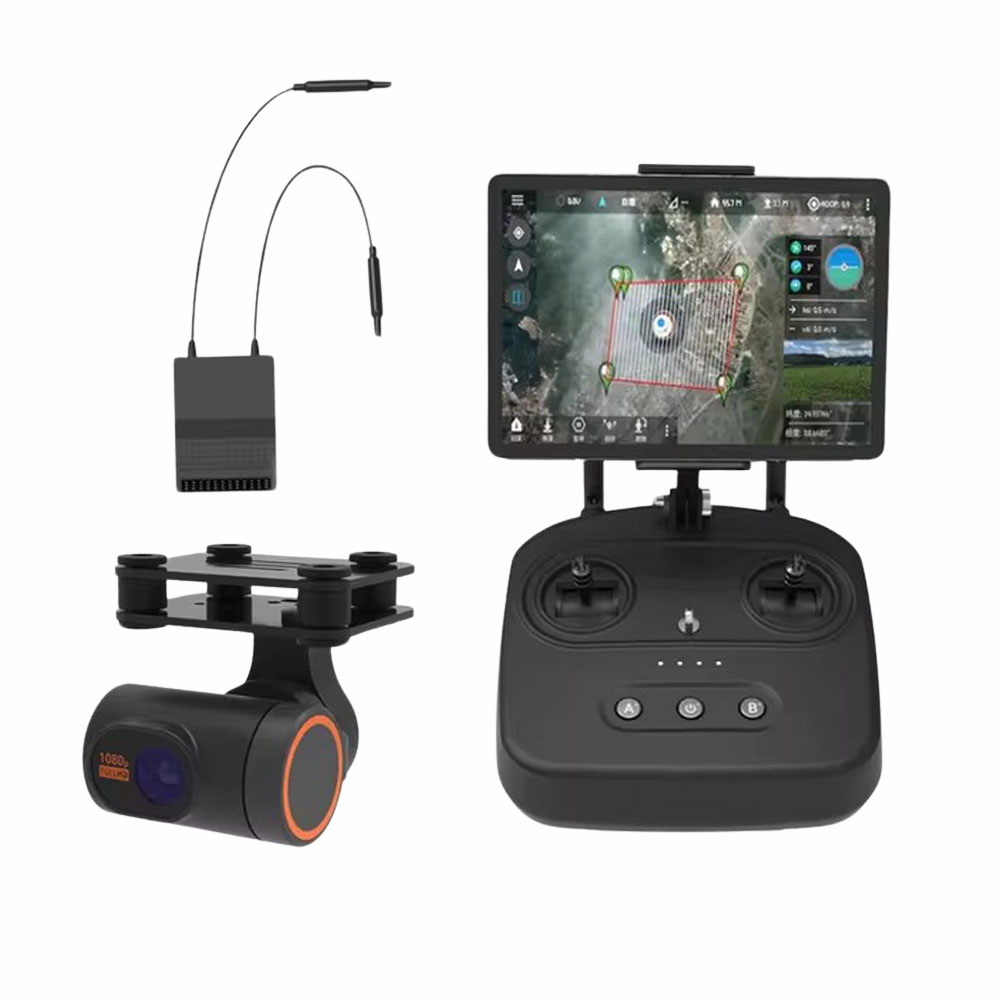

Optional Cameras: A variety of cameras can be selected for different applications, such as mini digital cameras with LED lights or 20x zoom cameras.
Specifications
Brand: Skydroid
Item Name: T10 Transmitter
Number of Channels: 10 channels
Frequency Range: 2.400-2.483 GHz
Working Voltage: 4.2V
Working Current: 100 mA
Modulation: New FHSS
Weight: 525 g
Firmware: Upgradable via APP online
Dimensions: 160 mm × 150 mm × 50 mm
Battery Capacity: 4000 mA
Charge Port: Micro-USB
Applications: Helicopter, Fixed Wing, Copter, Car, Boat
R10 Receiver
Model: R10
Number of Channels: 10 channels
Working Voltage: 4.5-5.5V
Working Current: 100 mA
Dimensions: 50 mm × 31 mm × 12 mm
Weight: 20 g
Mini Camera
Model: Mini Camera
Size: 30 mm × 29 mm × 26 mm
Working Current: 180 mA
Weight: 15.6 g
R10 Mini Receiver Usage
1. Connect the camera cable to the camera.
2. Power on the flight control and press the receiver's counter button. The green light will flash quickly to initiate the frequency matching process.
3. Turn on the remote control. Once the receiver's green light remains steadily on, the frequency matching is complete.
4. Plug the remote control into the data line to display the video feed. After connecting to the ground station, data can be utilized.
