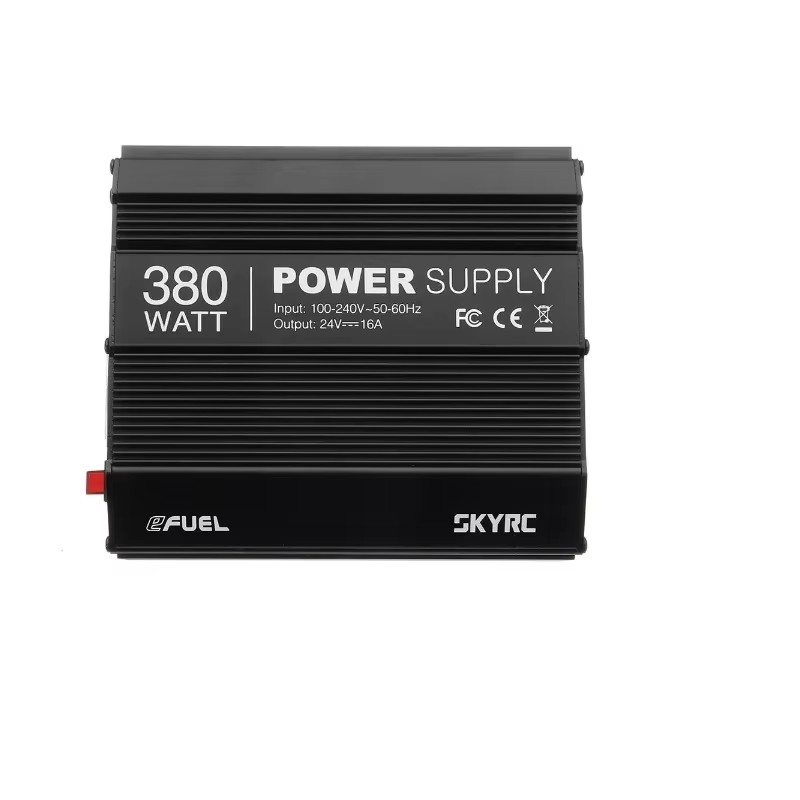

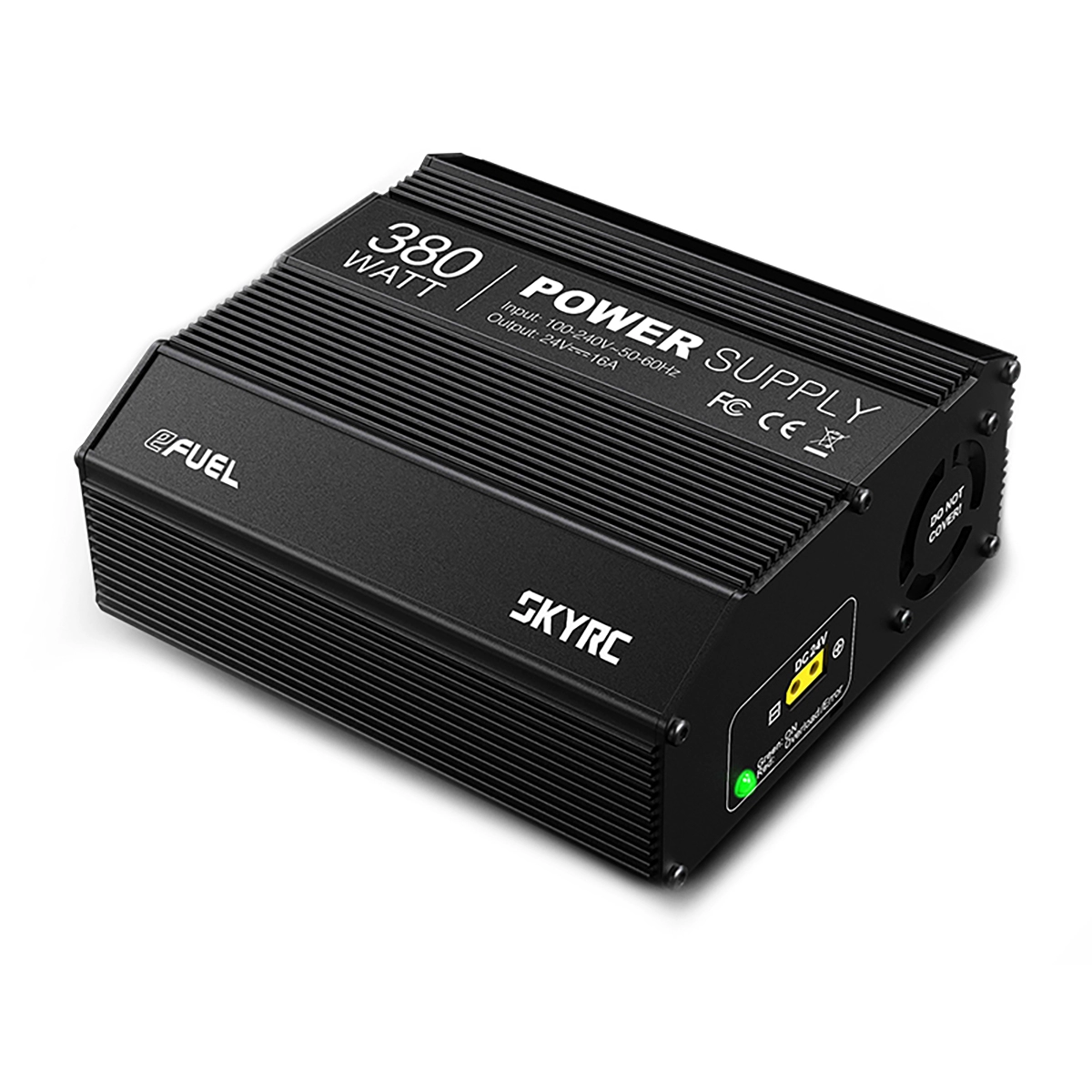

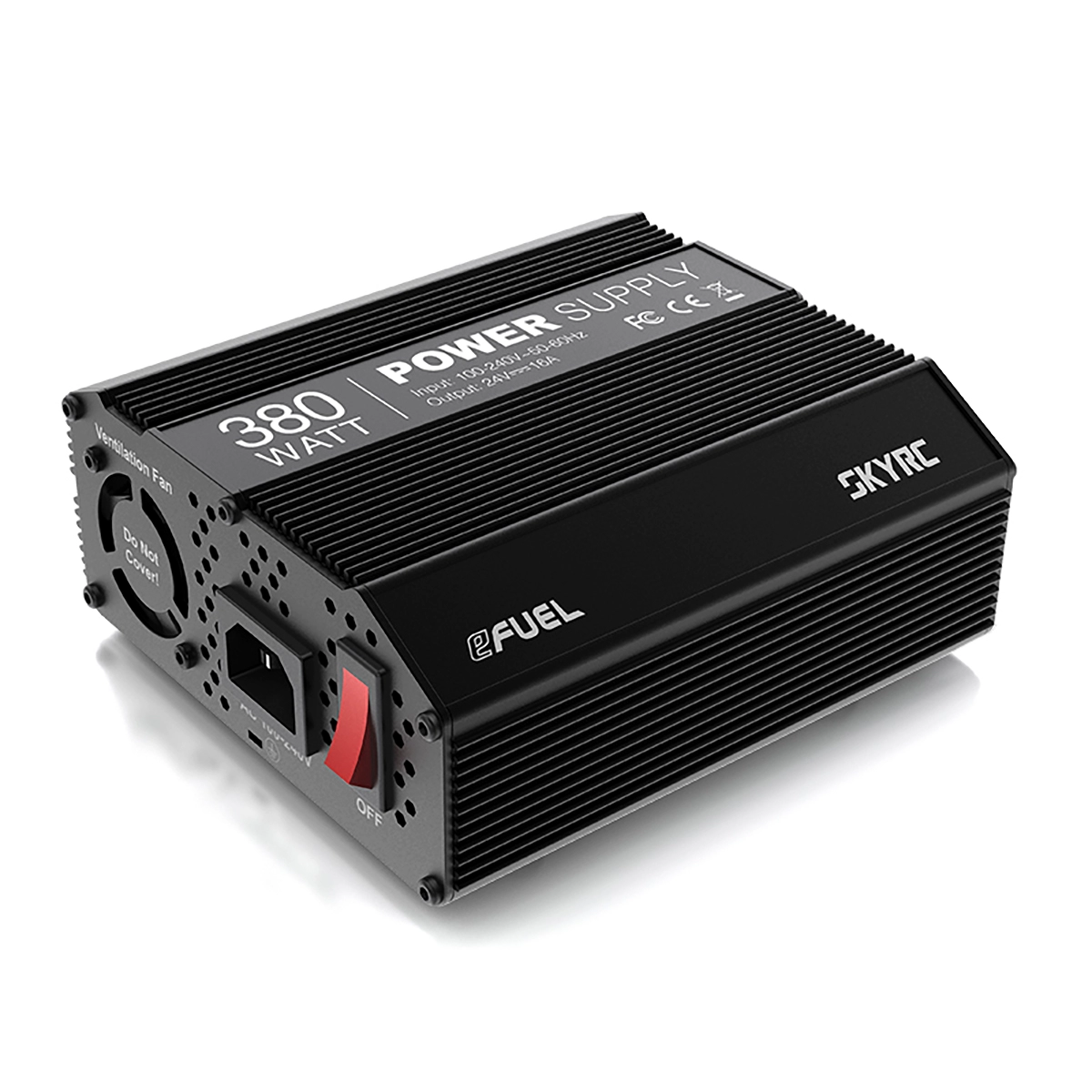

SKYRC EFuel 380W Power Supply 16A 100-200V 24V DC Power Supply Adapter

The eFUEL 380W, 16A AC/DC Switching Power Supply is designed and manufactured by SkyRC, skilled professionals using the highest standard in workmanship.

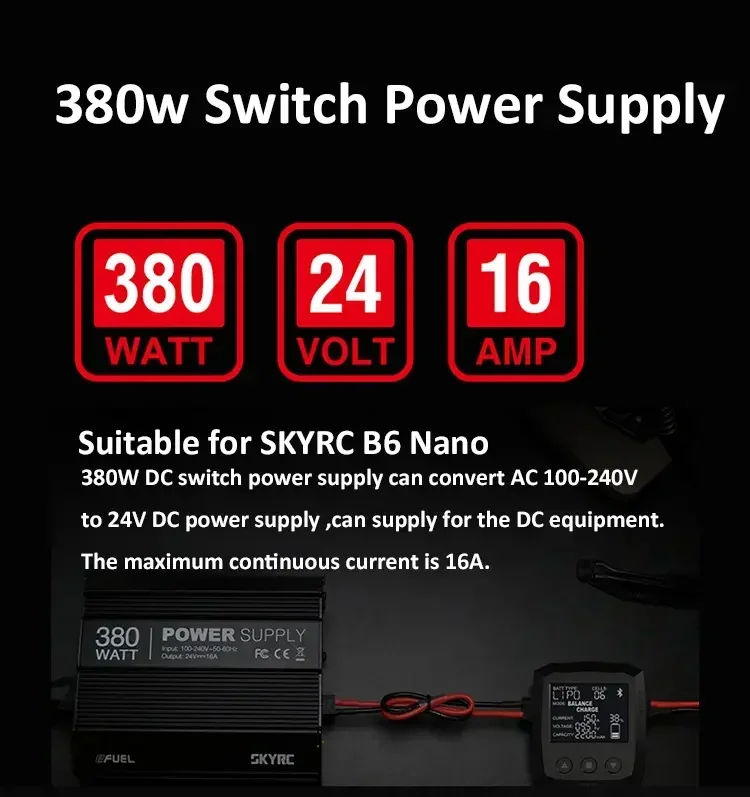

This power supply is designed to use regular household AC power source to power the latest in high power lipo chargers such as the B6 nano. The eFUEL converts standard household power 100-240V AC to 24V DC power and can supply up to 16 amperes of continuous power.

380W , 24V , 16A
Built for most demanding pocket charger
Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.

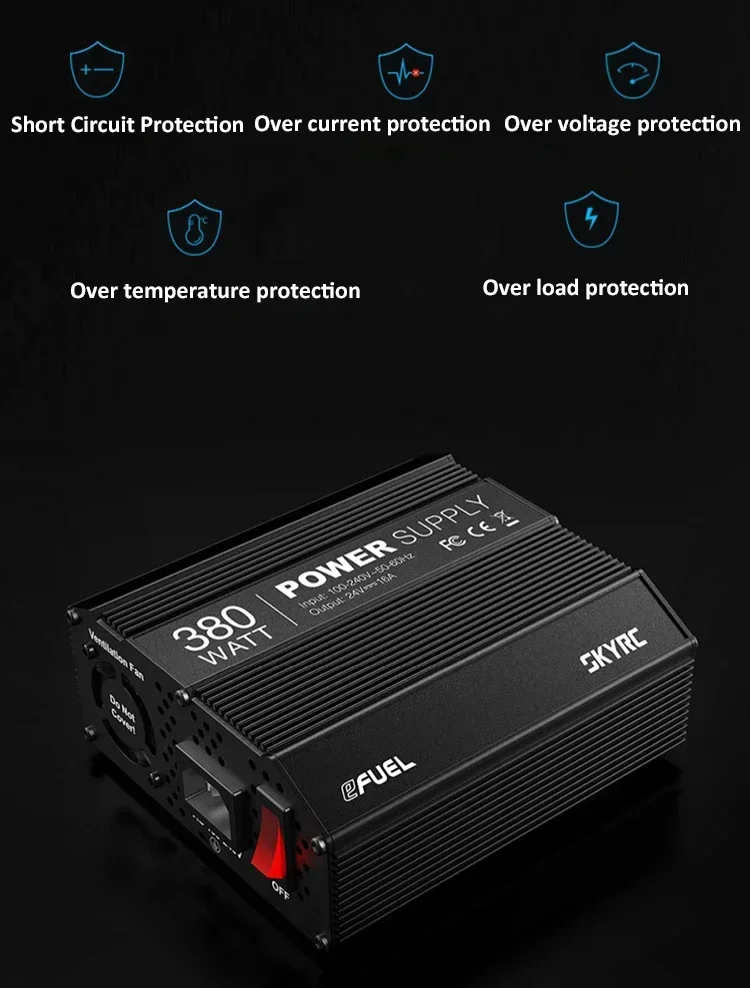

Safer and Reliable
Short-circuit, protection on output,
Over Current Protection
Over Temperature Protection
Over Load Protection
Over Voltage Protection

Active PFC:
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.
Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.

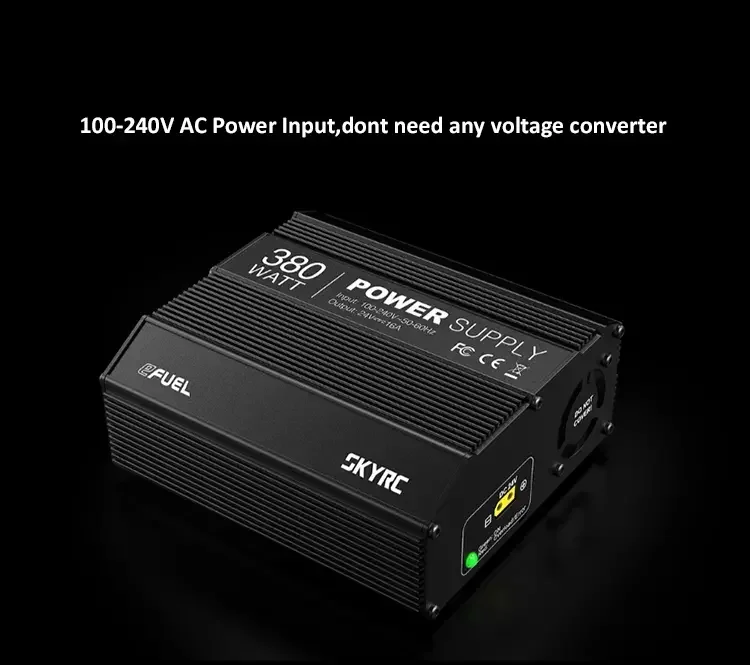

Universal Operation,Worldwide Safe
AC 100-240V AC Power input; No need any voltage converter.

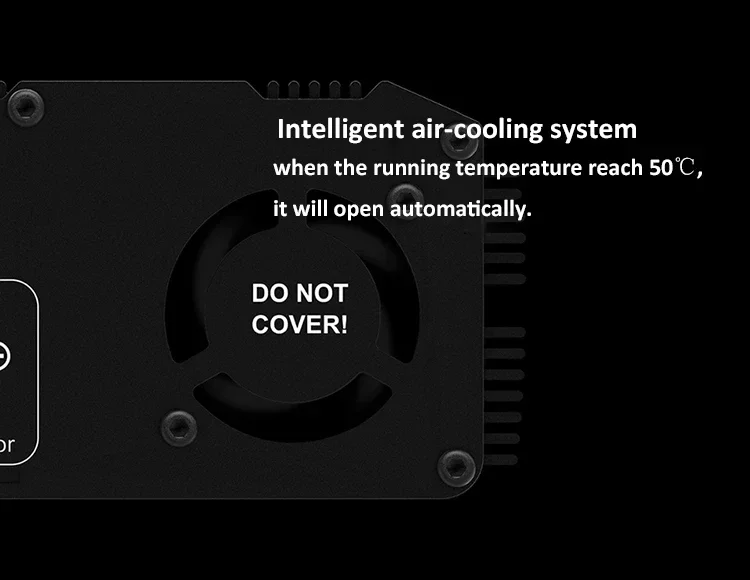

Intelligent Air Cooling System
Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.

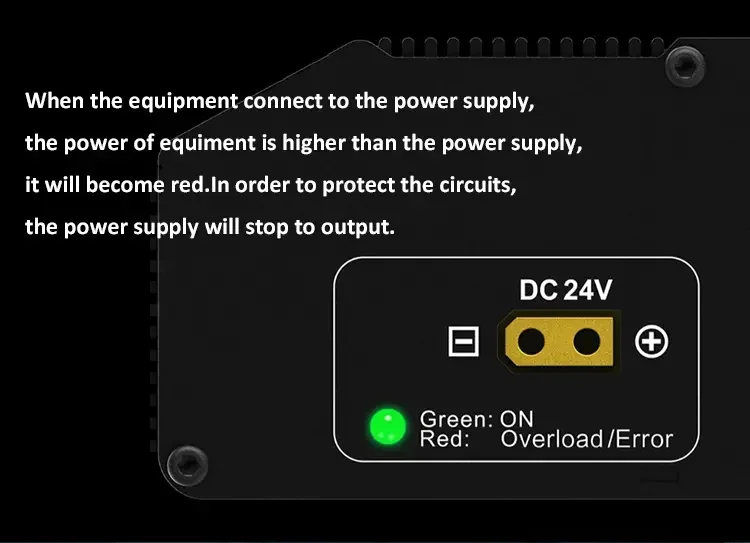

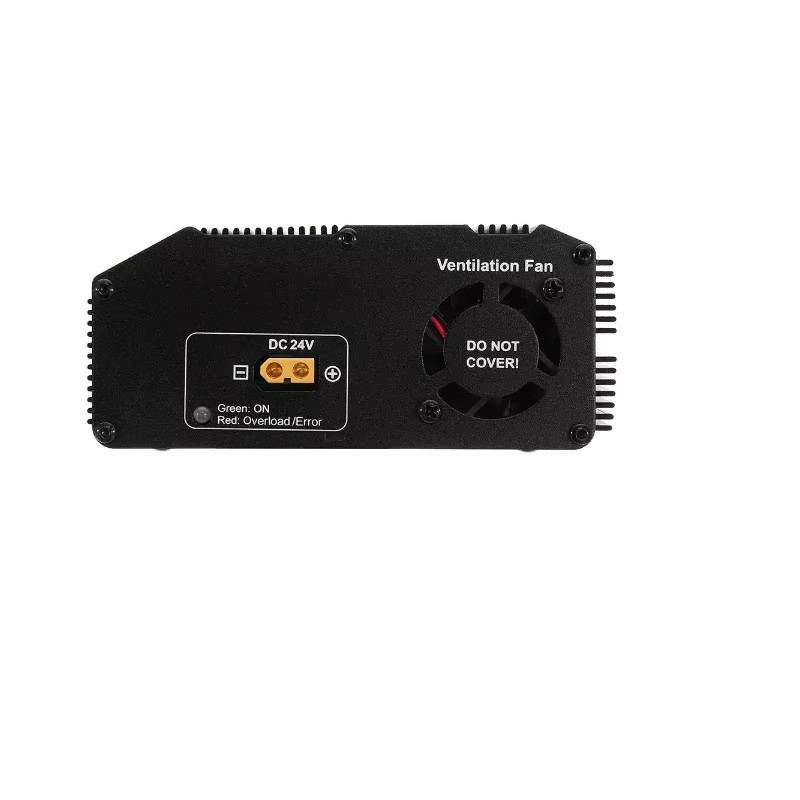

Overload/Error
Indication
The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.

We are Certified,We are Qualified!
SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.

Rigorous testing, derived from the pursuit of quality
Each 380W powr supply must experience dozens of more than the industry standard of critical testing. Each rigorous testing and every detailing are the reflections of SkyRC's concentration on products.
( Drop Test ,Tilt Test ,Vibration Test , Aging Test , High Temp Test , Low Temp Test )

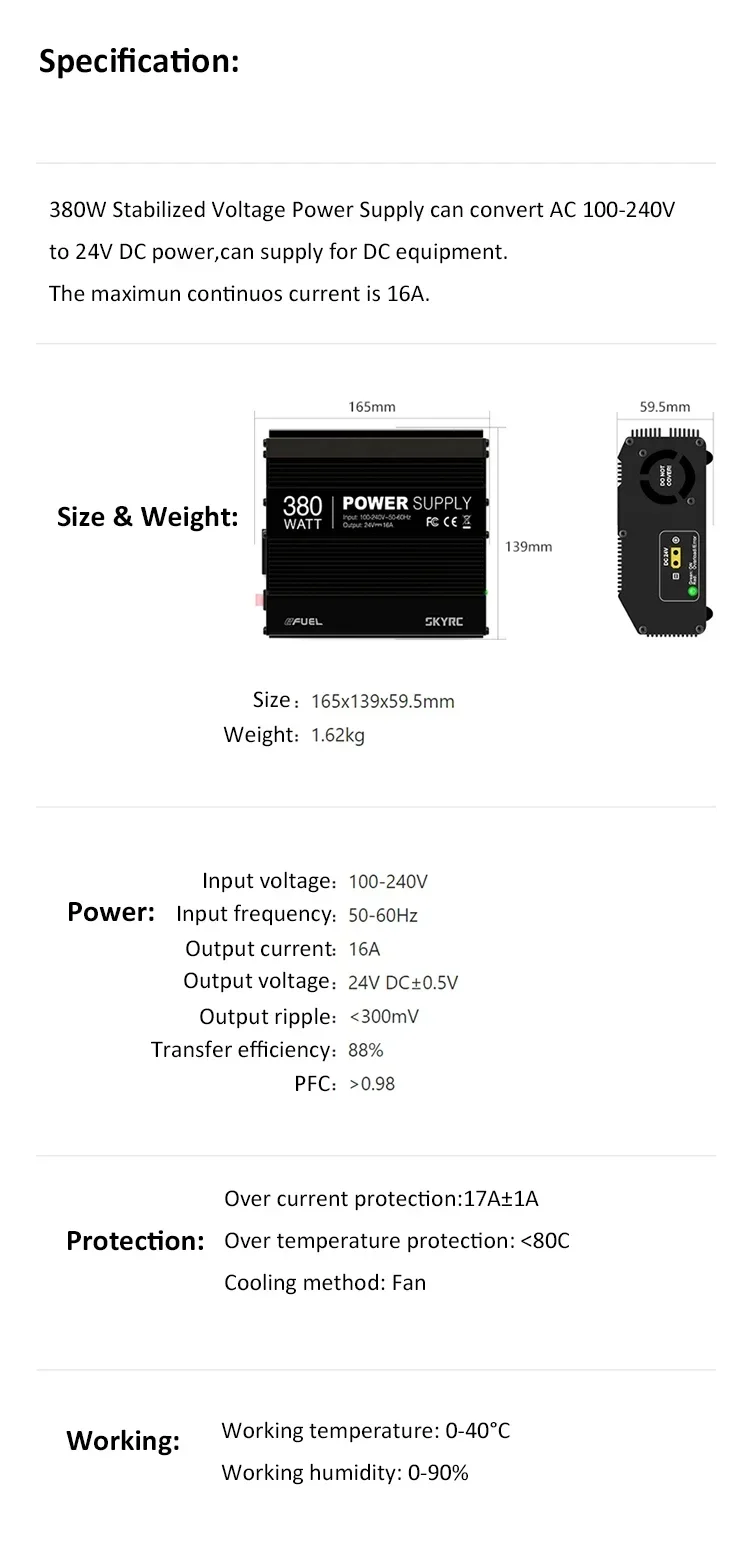

Features:
Voltage: 100-240V AC
Input AC Frequency: 50-60Hz
Output Voltage: 24V DC±0.5V
Output Current: 16A
Current Overload Protection: 17A ±1A
Output Voltage Ripple: <300mV
Power Efficiency: 88%
Power Factor: >0.98
Over Temperature Protection: <80℃
Cooling Method: Cooling Fan
Operating Temperature: 0-40℃
Operating Humidity: 0-90%
Size (L*W*H): 165x139x59.5mm
Weight: 1.1kg

Packaging Included:
1X SKYRC Power Supply
