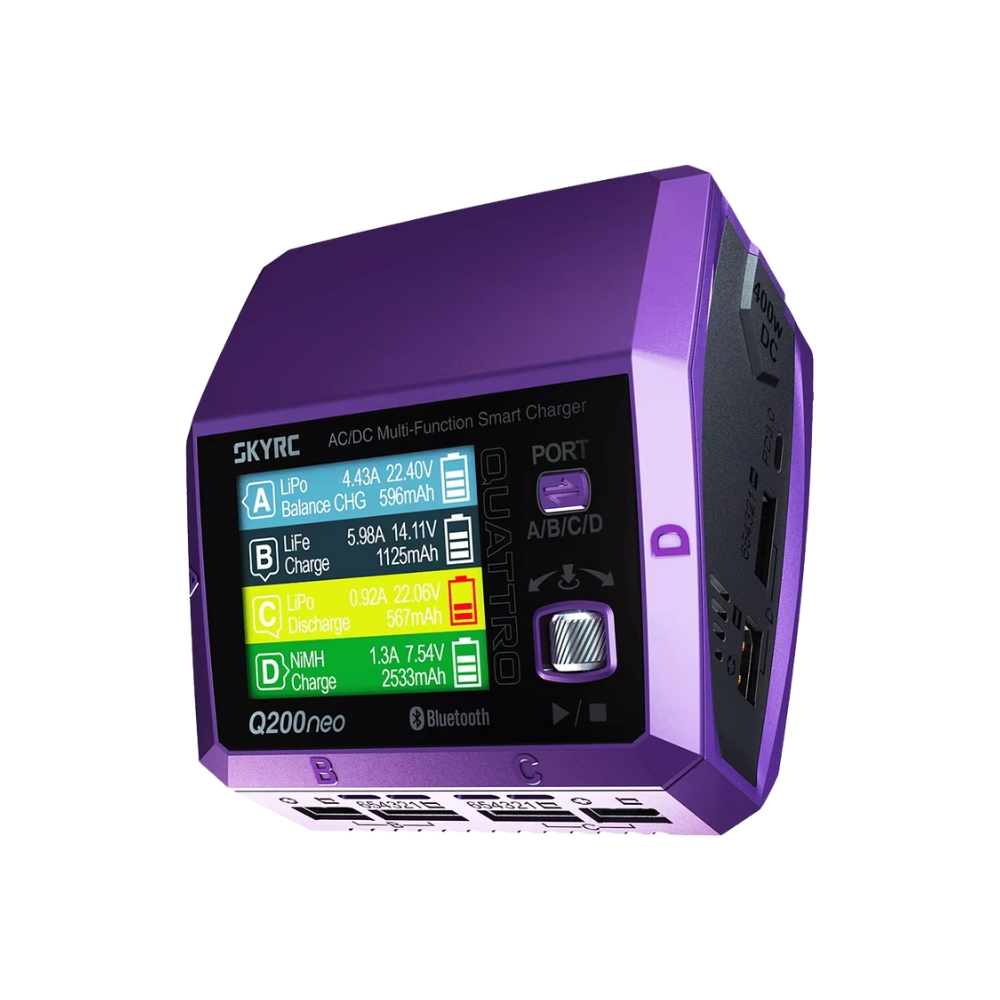

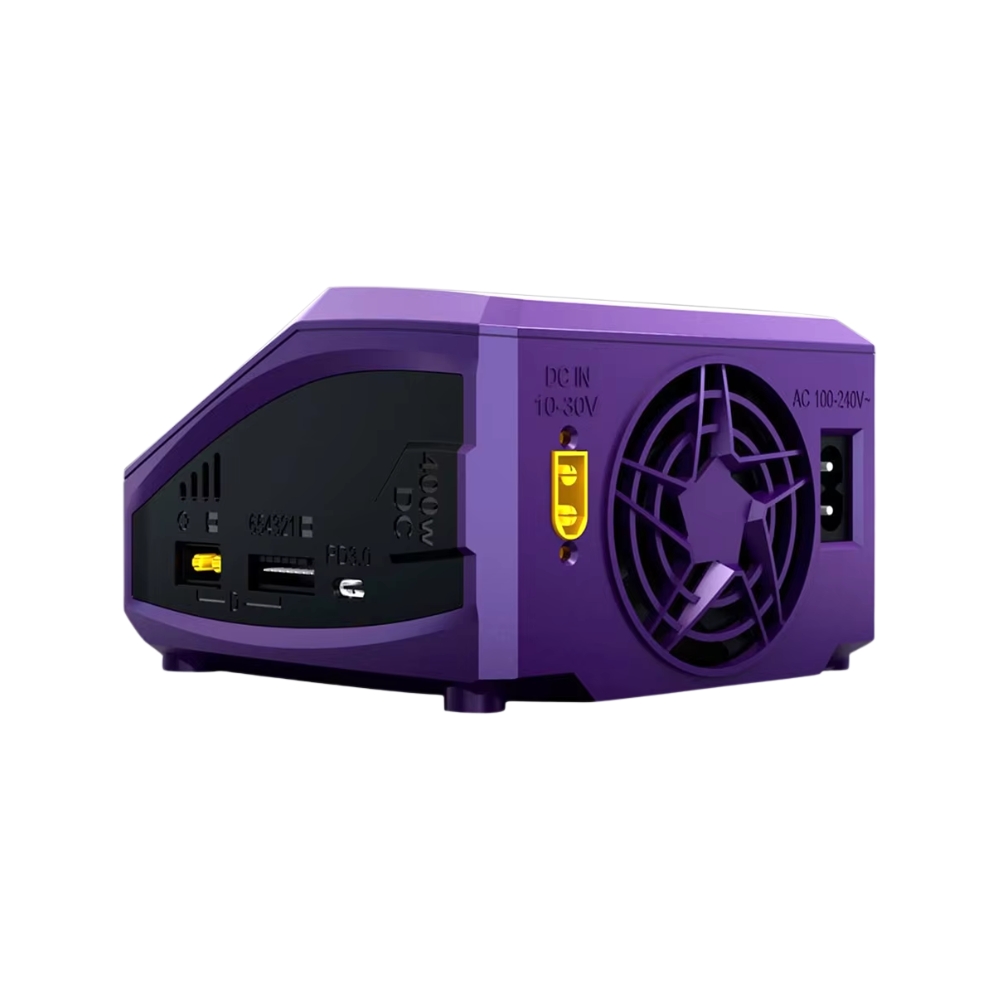

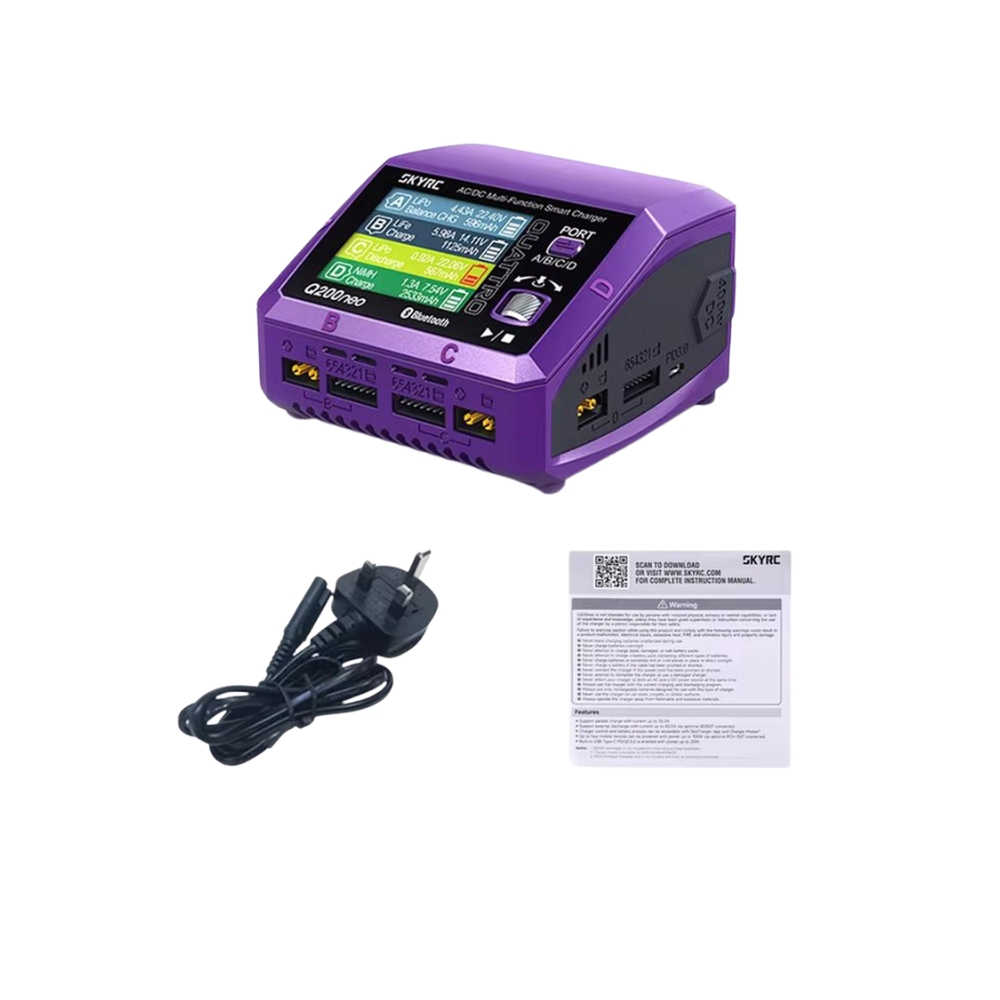

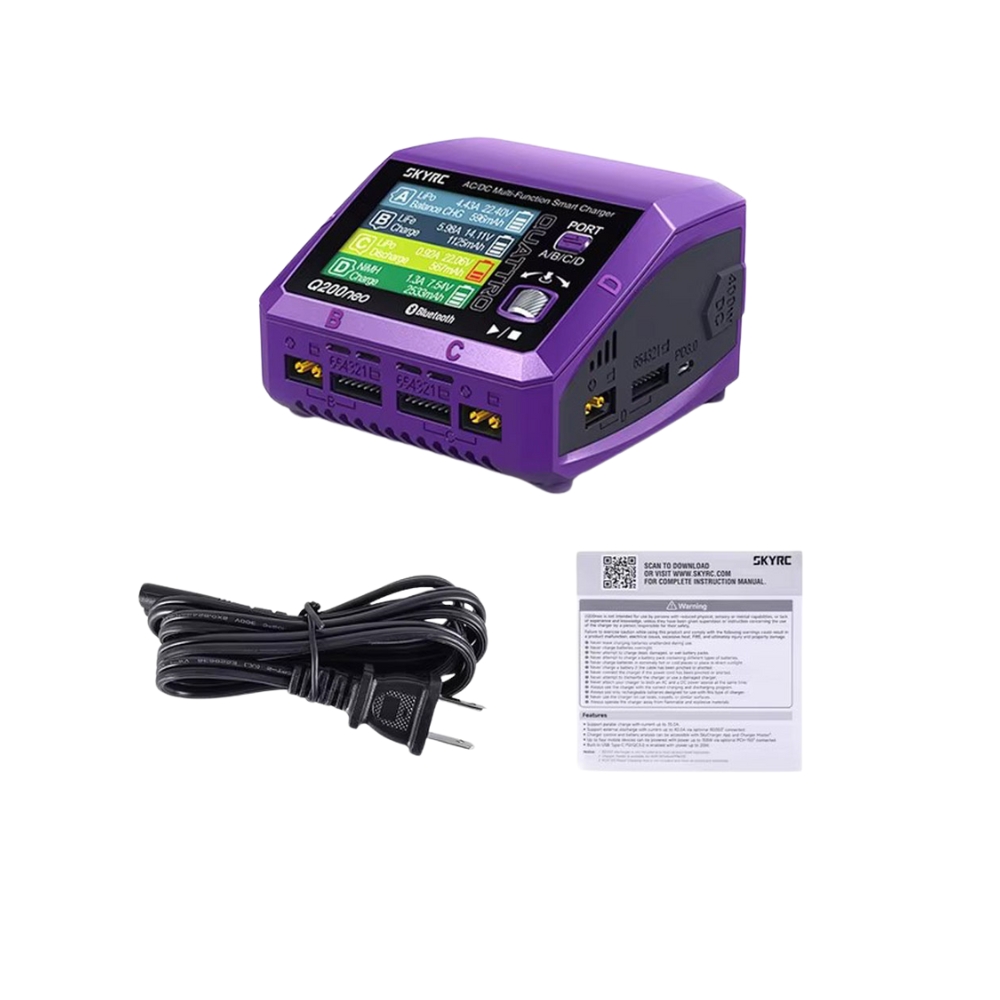

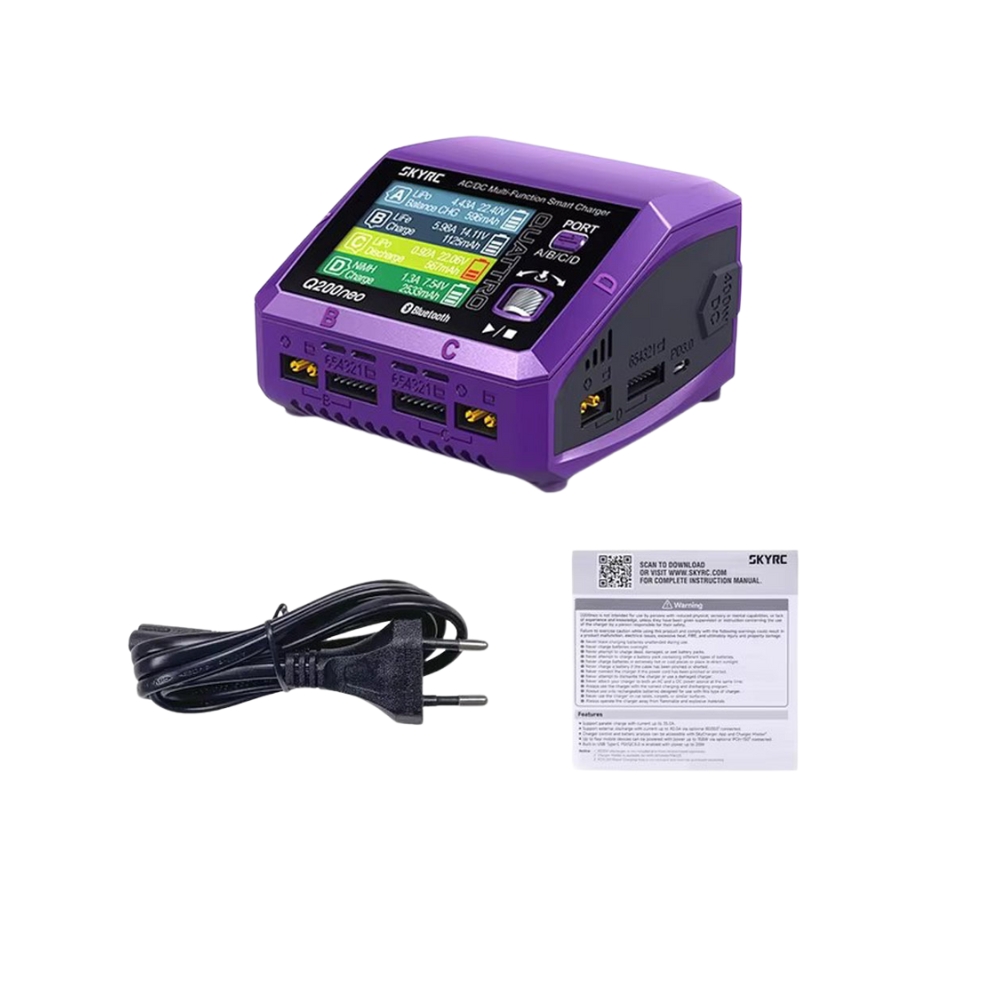

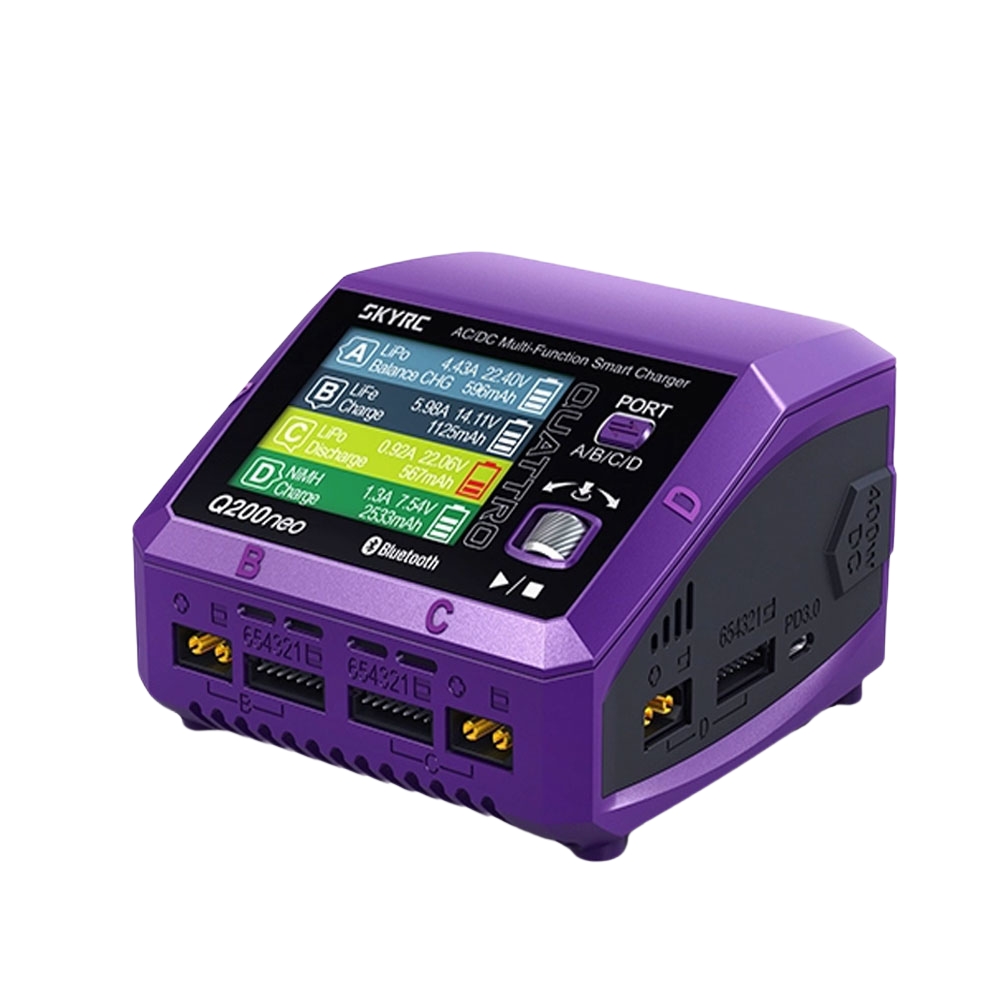

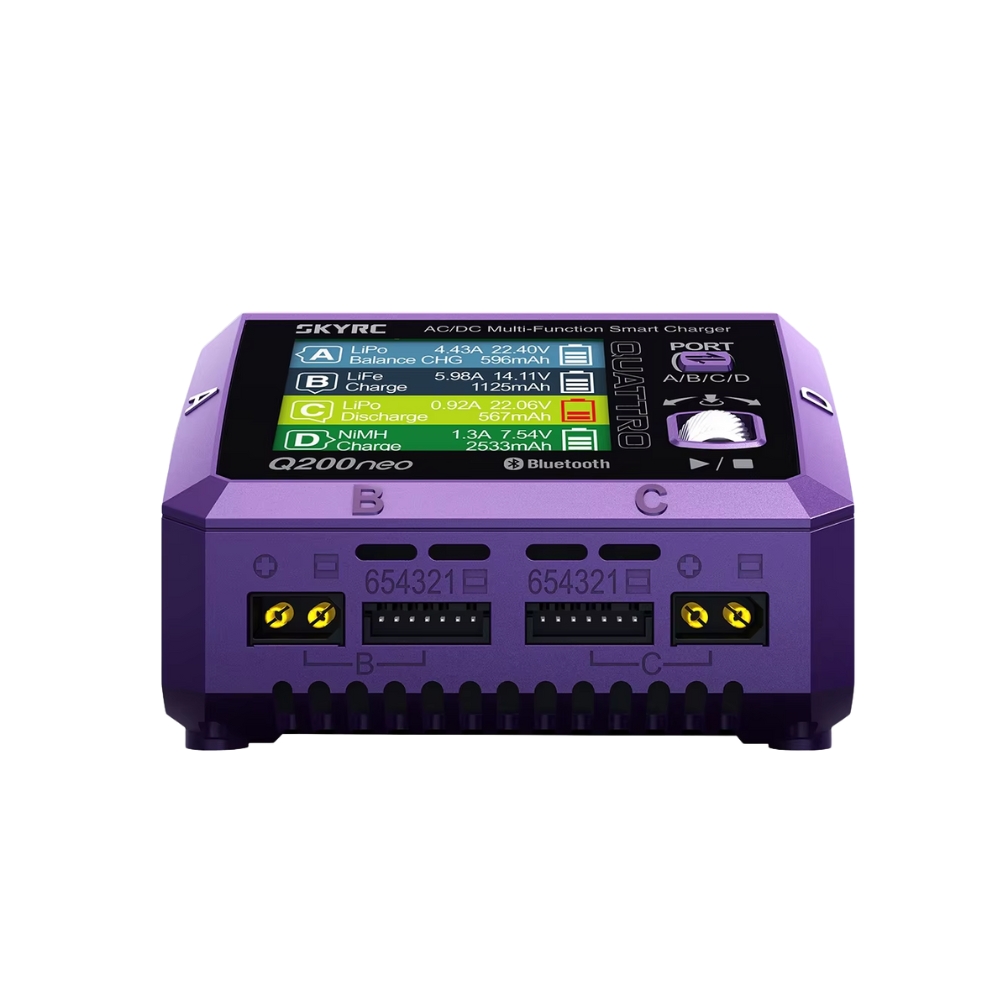

SkyRC Q200neo Charger

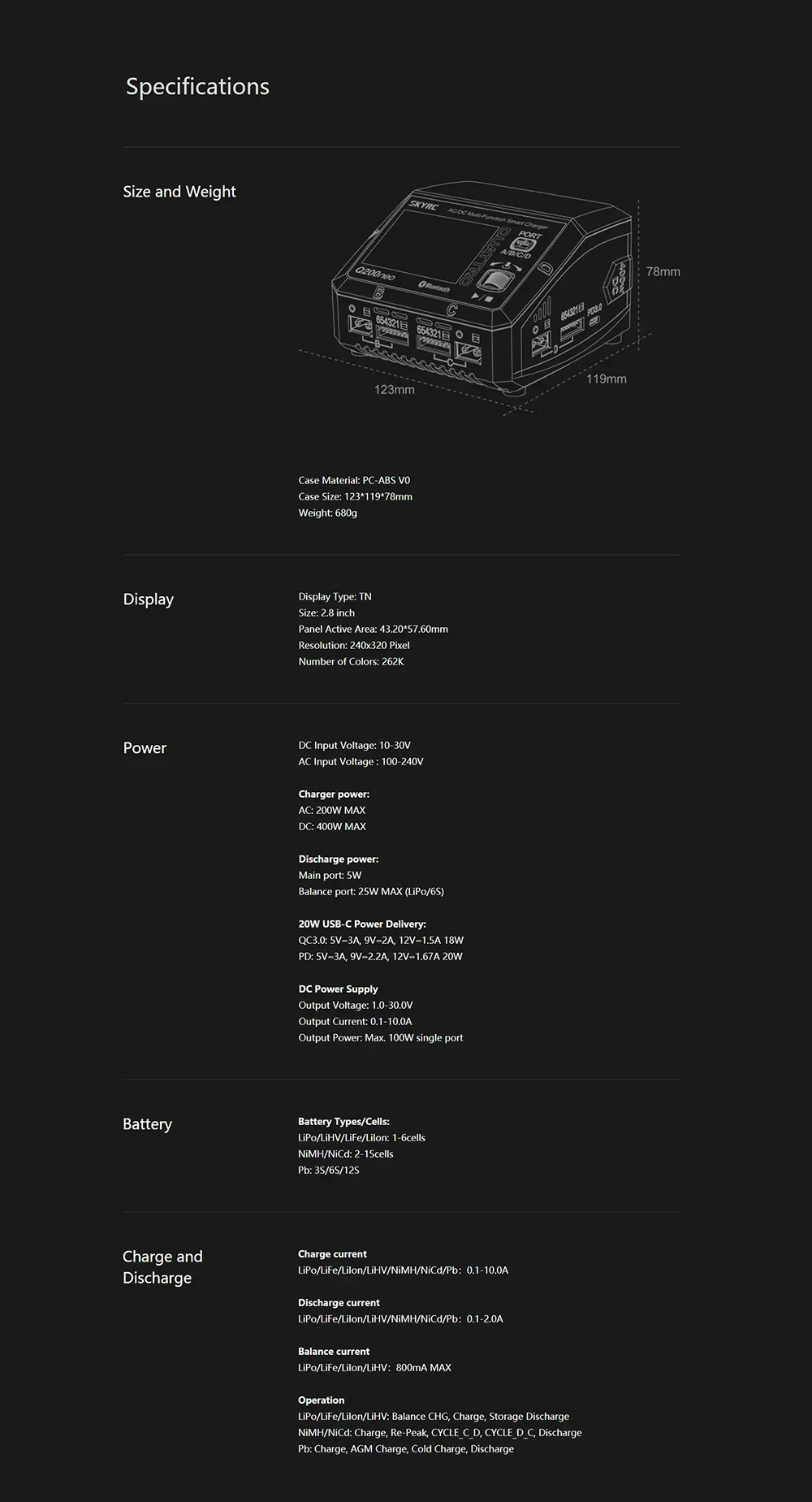

Specifications:
Brand Name: SKYRC
Model: SK-100197 Q200neoPower

DC Input Voltage: 10-30V
AC Input Voltage: 100-240V 50/60HZ

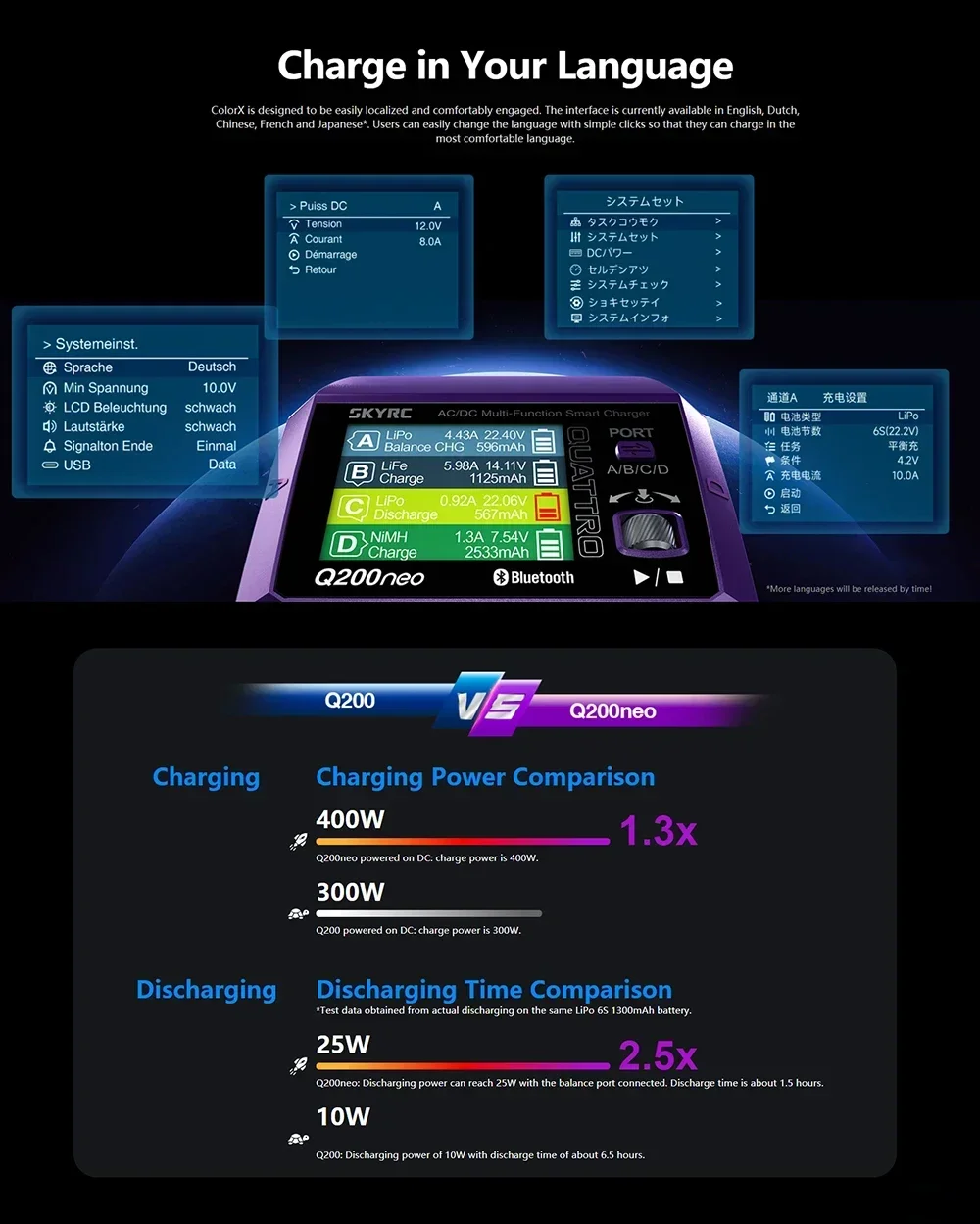

Charge Wattage:
AC: 200W MAX
DC: 400W MAX
Discharge Wattage:
Main port: 5W;
Balance port: 25W MAX(Lipo 6s)
20W USB-C Power Delivery:
QC3.0: 5V=3A, 9V=2A, 12V=1.5A 18W
PD: 5V=3A, 9V=2.2A, 12V=1.67A 20W

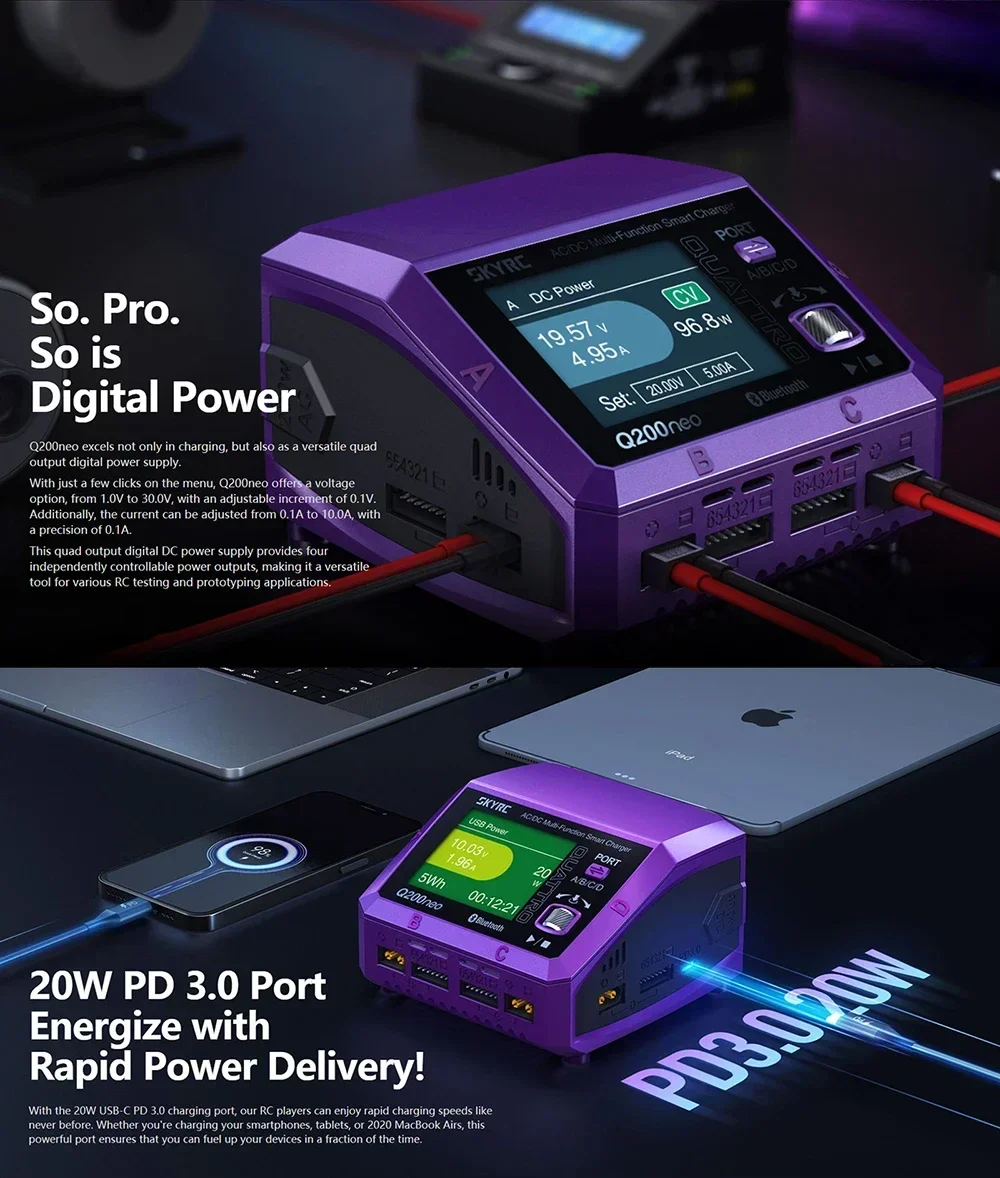

DC power supply
Output Voltage: 1.0-30.0V
Output Current: 0.1-10.0A
Output Power: Max. 100W single port

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S

Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-10.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV:800mA MAX

Operation
LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
Pb: Normal, AGM Charge, Cold Charge, Discharge

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%
Case Material: PC-ABS V0
Case Size: 123*119*78mm
Weight: 680g
