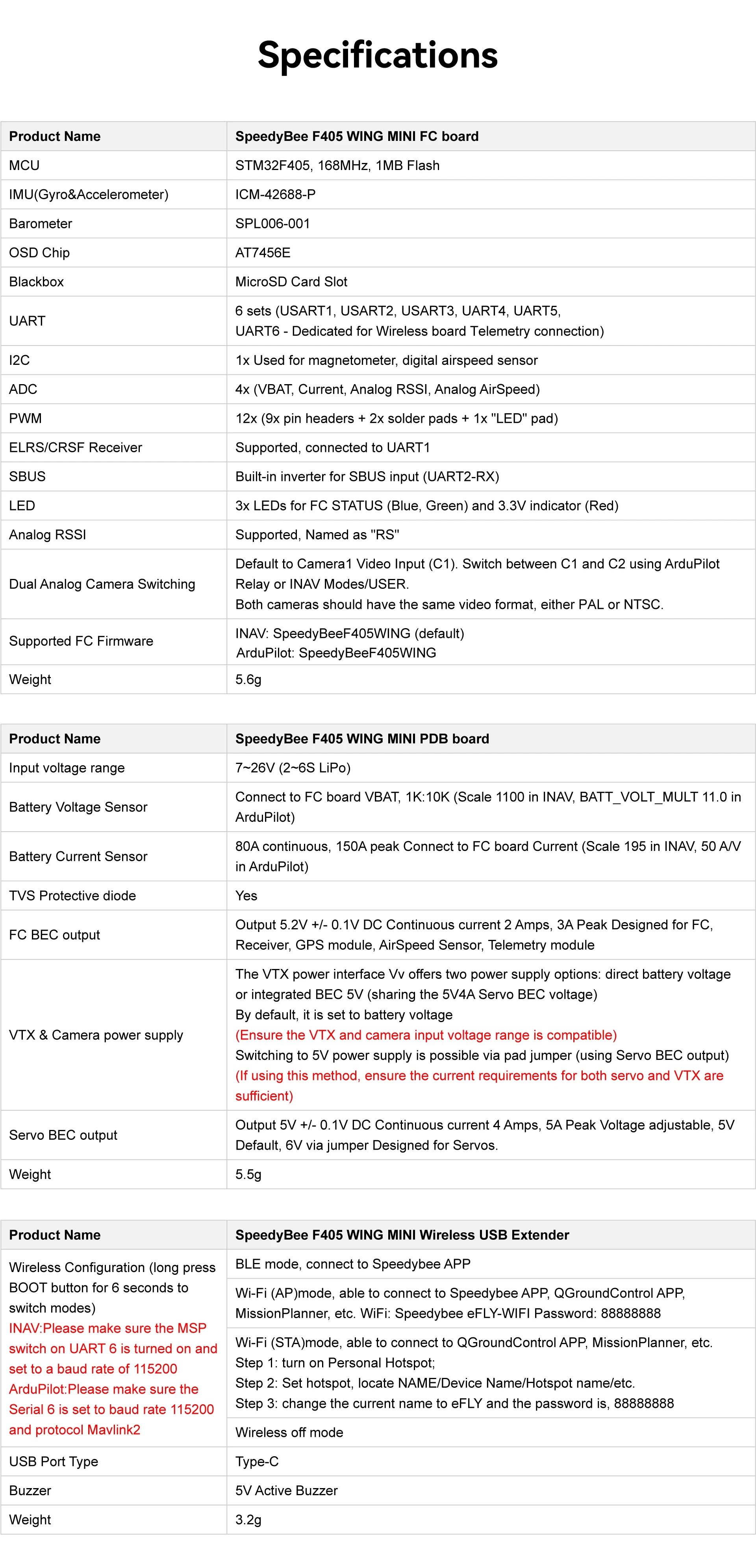

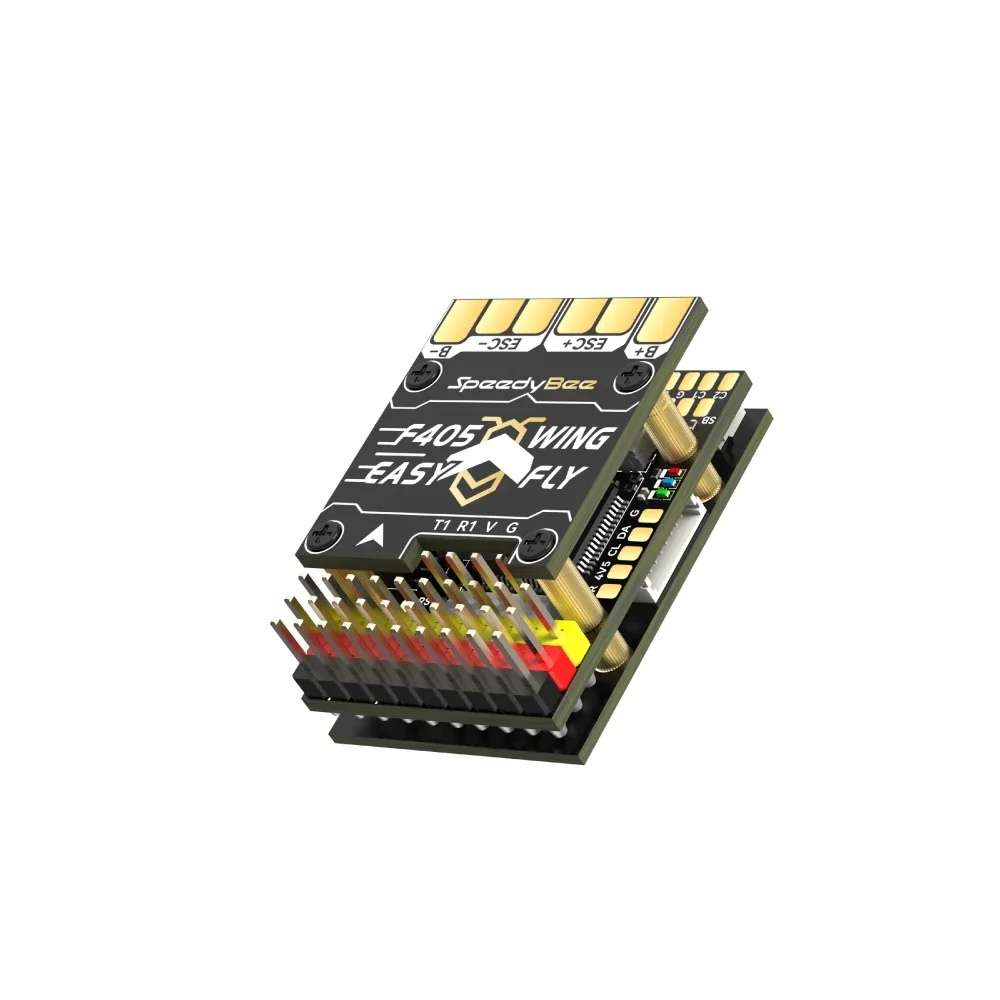

SpeedyBee F405 WING MINI Series Features Introduction:

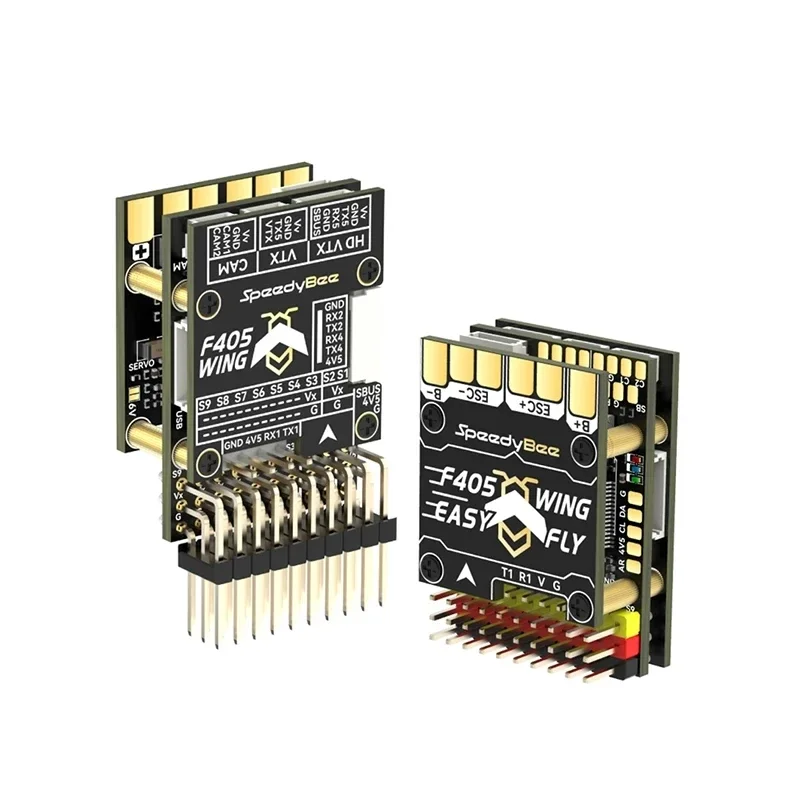

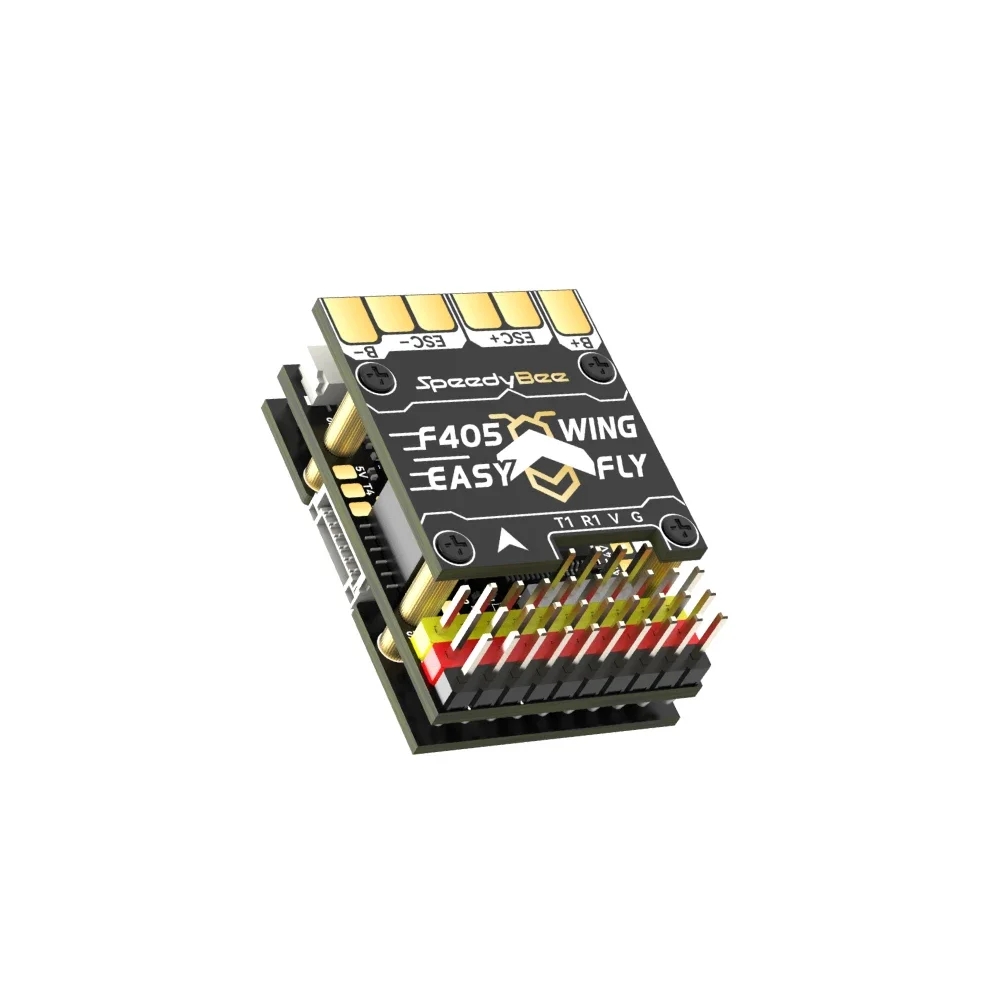

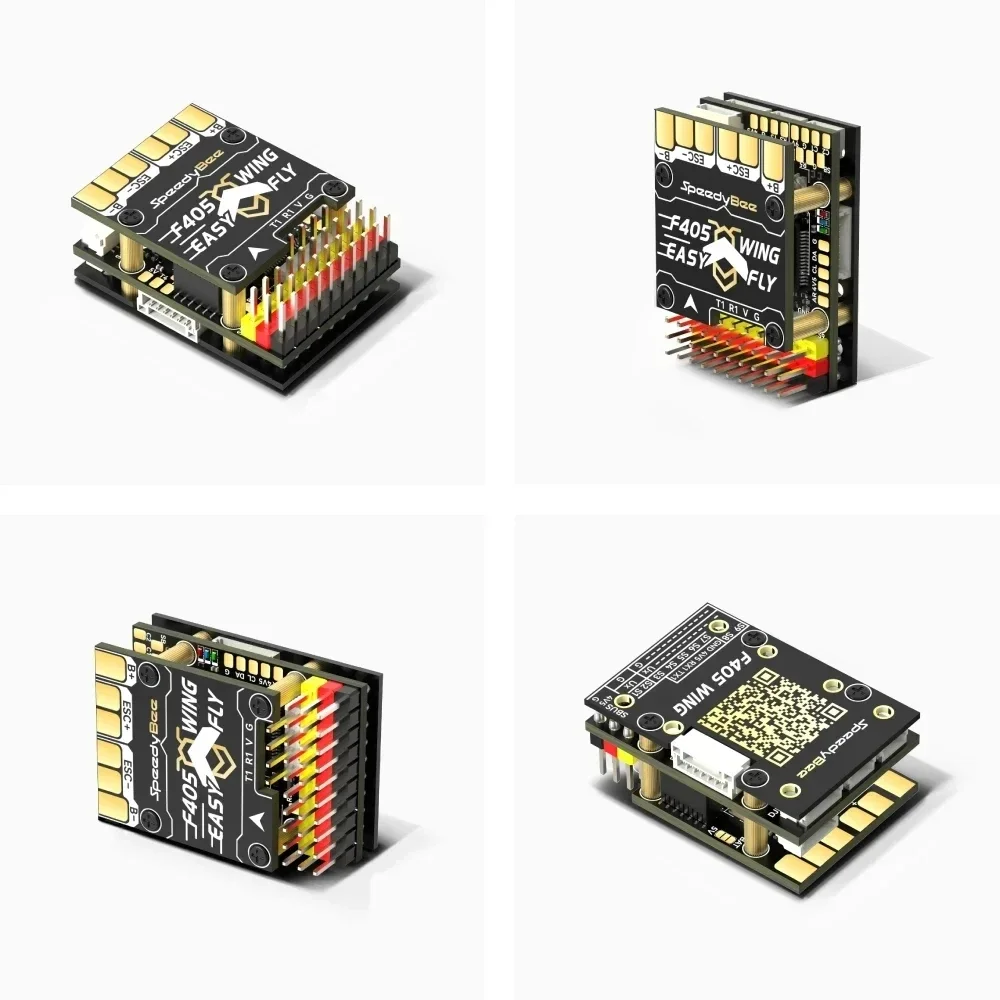

1. SpeedyBee F405 WING MINI FC board (flight controller board)
- Equipped with STM32F405 MCU with 168MHz processing speed and 1MB flash memory.
- Equipped with ICM-42688-P IMU (gyroscope and accelerometer).
- Integrated SPL006-001 barometer and AT7456E OSD chip.
- Supports black box function with MicroSD card slot.

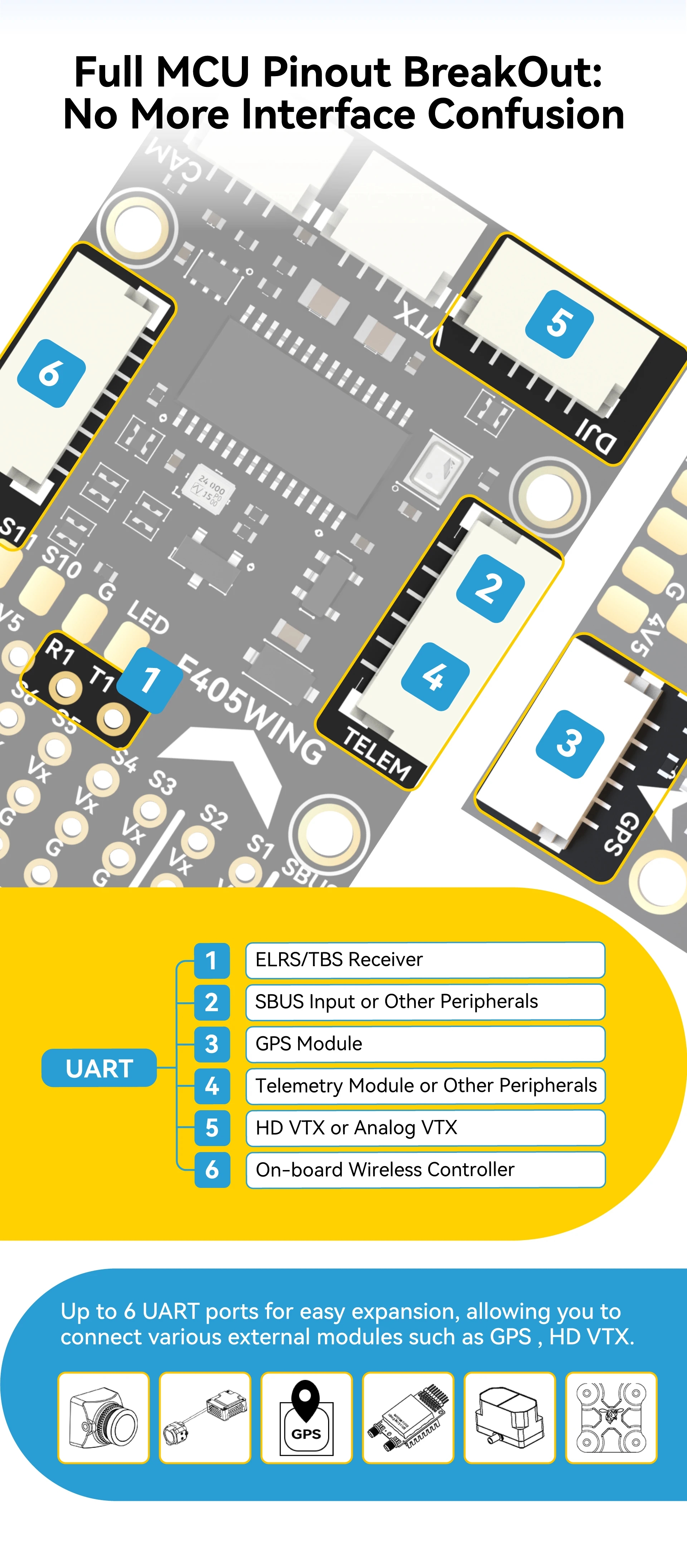

- Provides 6 groups of UARTs, including UART6 dedicated for wireless board telemetry connection.
- Includes 1 set of I2C for magnetometer and digital airspeed sensor.
- Features 4-channel ADC for VBAT, current, analog RSSI and analog airspeed.

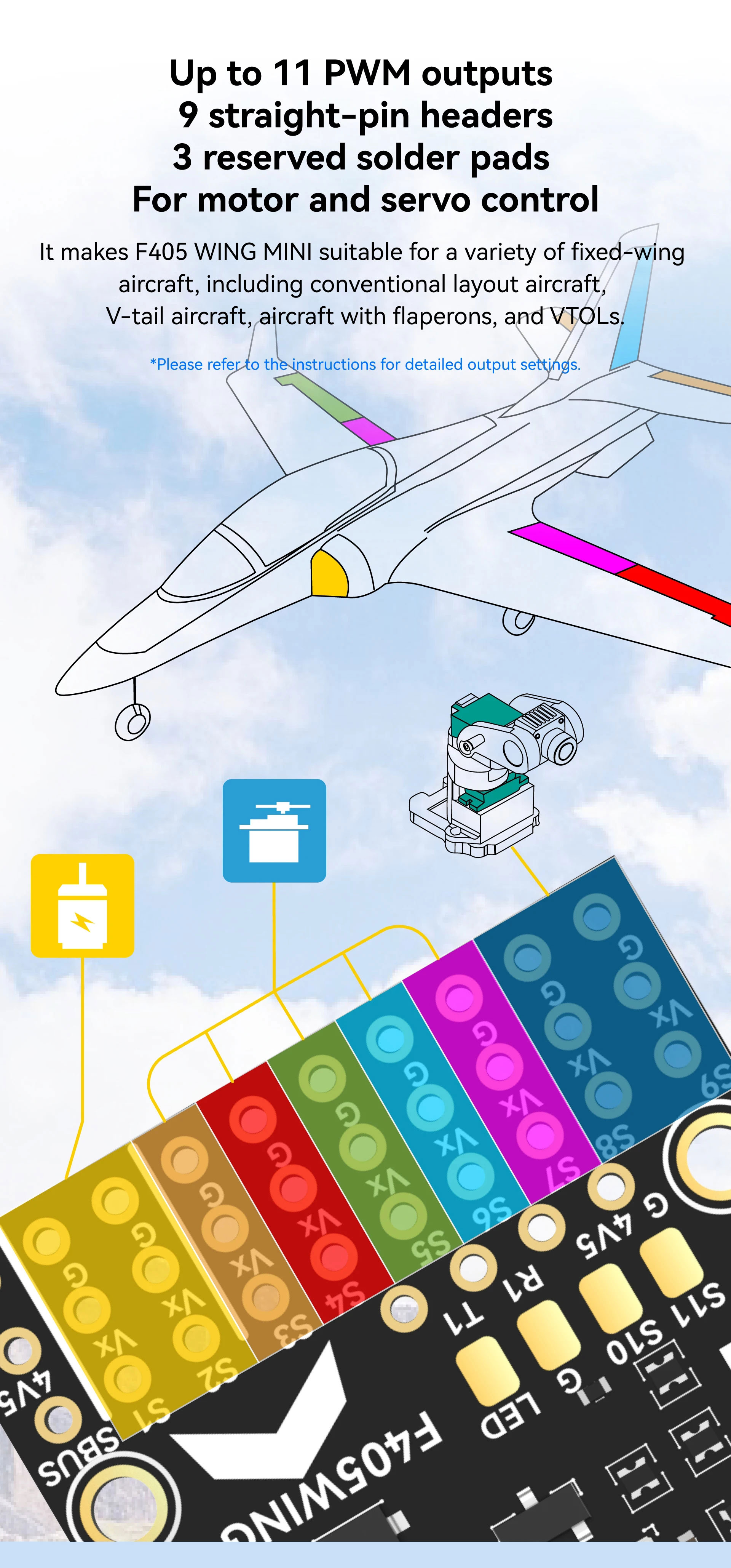

- Supports 12-channel PWM output.
- Supports ELRS/CRSF receiver connected to UART1.
- Built-in SBUS input inverter (UART2-RX).
- Equipped with 3 LED indicators for flight controller status and 3.3V indication.
- Support analog RSSI, marked as “RS”.
- Supports dual analog camera switching.
- Supports INAV and ArduPilot flight control firmware.
- Weight is 5.6 grams.

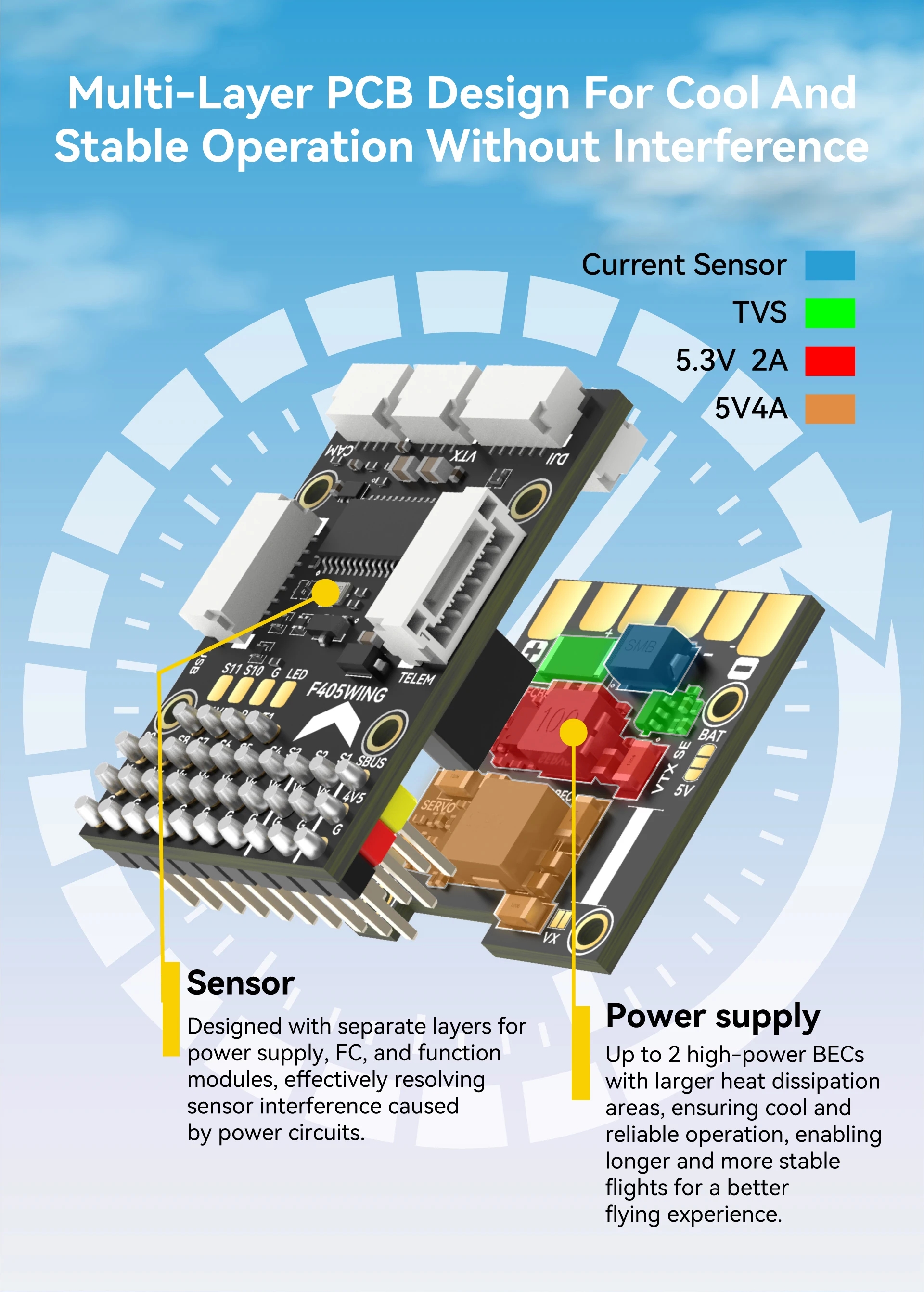

2. SpeedyBee F405 WING MINI PDB board (Power Distribution Board)
- Input voltage range is 7~26V for 2~6S LiPo batteries.
- Battery voltage sensor is connected to FC board VBAT with 1K:10K divider ratio.
- Battery current sensor supports 80A continuous current and 150A peak current.
- Built-in TVS protection diode.
- FC BEC output provides 5.2V ±0.1V DC with 2A continuous and 3A peak current.
- The VTX and camera power interfaces provide both direct battery voltage or integrated BEC 5V supply options.
- The servo BEC output provides 5V ±0.1V DC at 4 amps continuous, 5 amps peak, adjustable voltage, 5V by default, which can be set to 6V with a jumper.
- Weight is 5.5 grams.

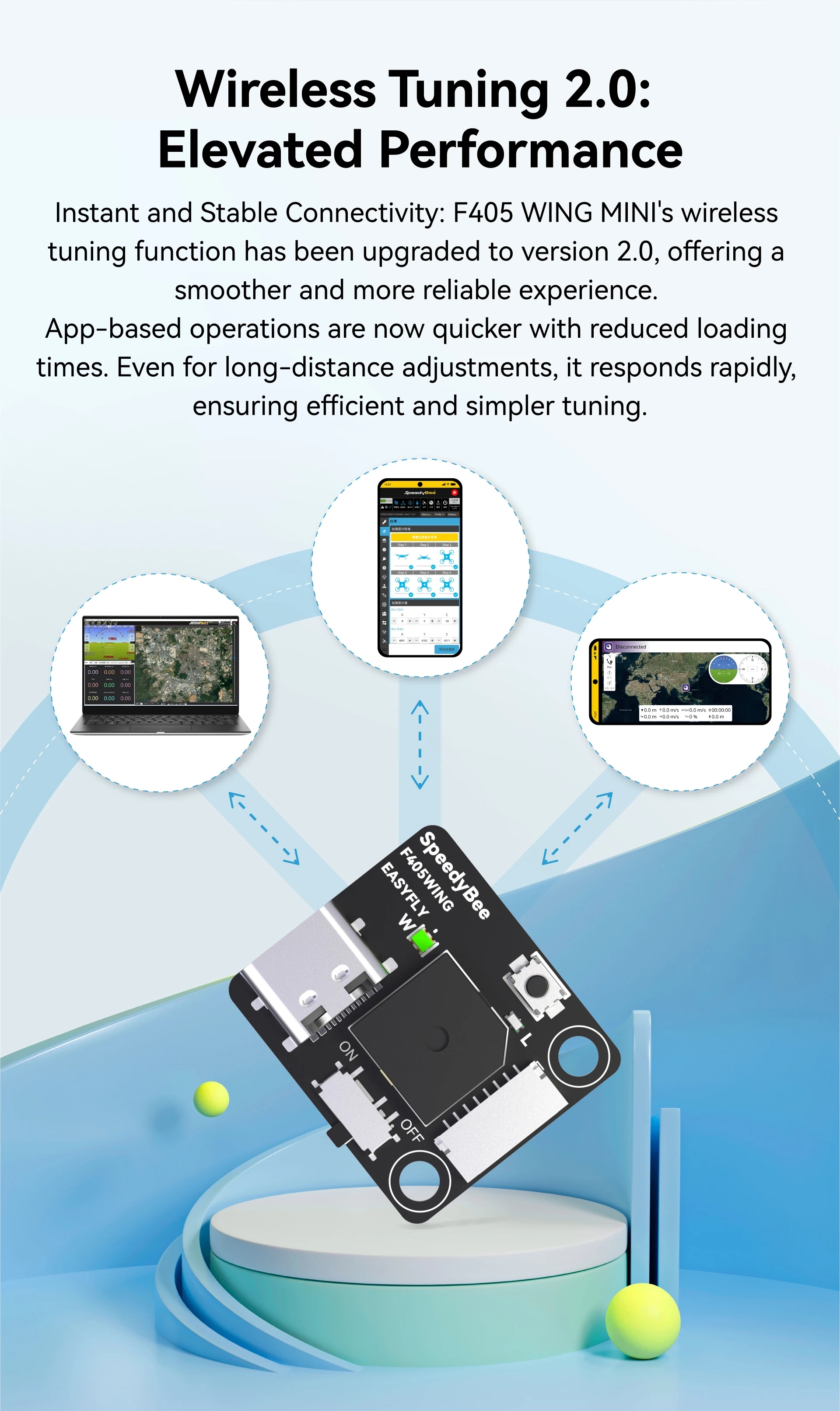

3. SpeedyBee F405 WING MINI Wireless USB Extender
- Supports wireless configuration, long press BOOT button for 6 seconds to switch modes.
- Support BLE mode to connect to Speedybee APP.
- Support Wi-Fi (AP) mode to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. Wi-Fi name is Speedybee eFLY-WIFI, password is 88888888.
- Supports Wi-Fi (STA) mode to connect to QGroundControl APP, MissionPlanner, etc.
- Provides Type-C USB port.
- Built-in 5V active buzzer.
- Weighs 3.2 grams.
