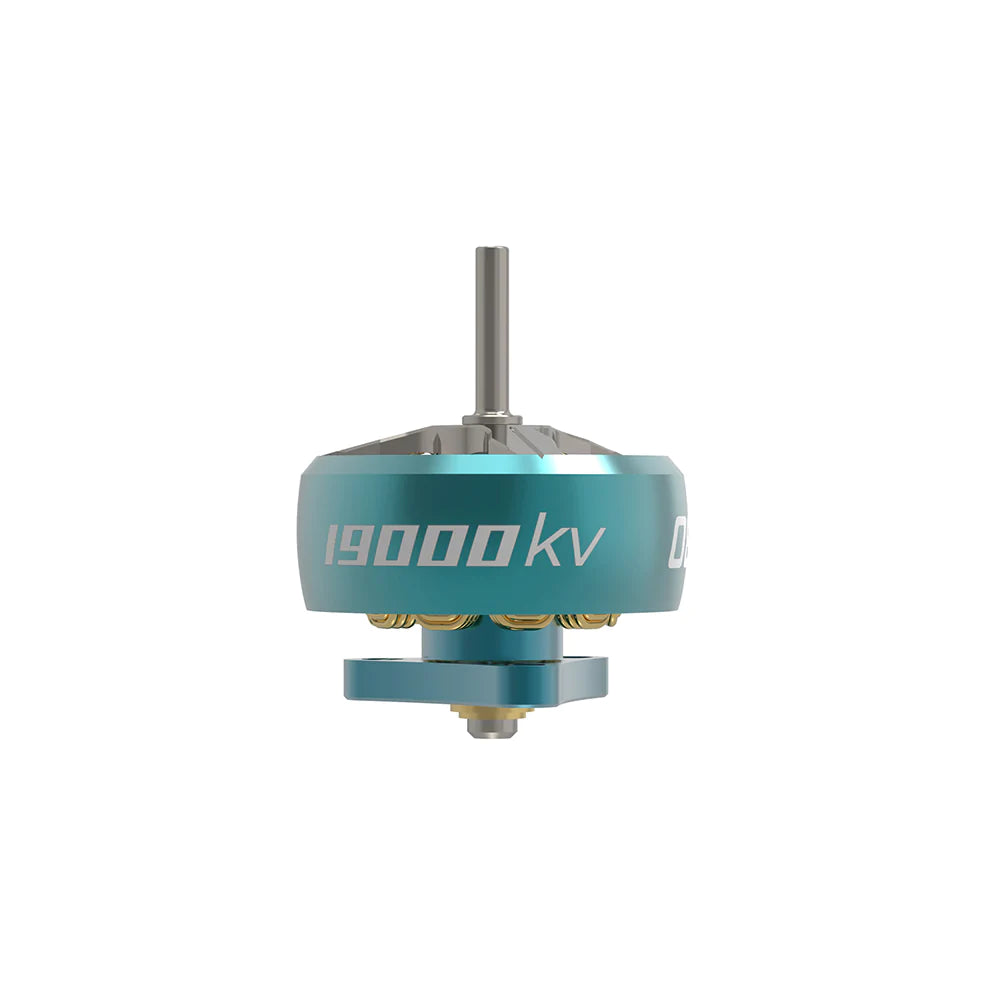

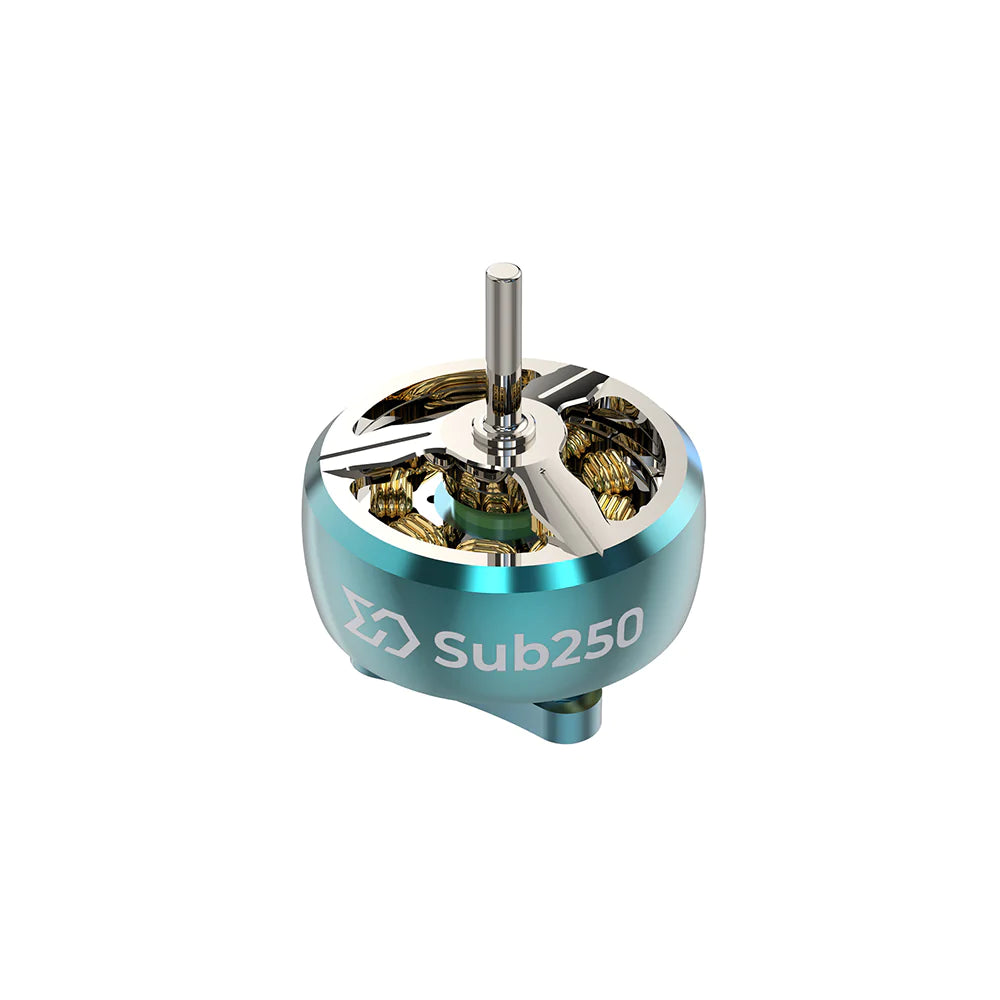

The Sub250 M1 0803 19000KV 1.5 mm Shaft Brushless motor offers high efficiency and durability for lightweight drone builds. Available in 1pc or 4pcs packs, it delivers reliable power and smooth performance for advanced flight applications.
Feature:
1. Small size and lightweight, only 2.2g.
2. N52H strong magnetic magnet, high-temperature resistant coil, full of power.
3. Low loss customization, low heat generation, and high efficiency.
4. Suitable for a 1.4-1.6 inch micro drone.
5.1.0mm shaft diameter is suitable for more propellers.
Specifications:
Model: M1 0803 19000KV
Configure-ration:9N12P
Voltage: 4.2V (1S)
Stator Diameter:8.4mm
Stator Length:2.8mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ12mm*14mm
Weight(g):2.2g
No.of Cells(Lipo):1S only
Battery: Recommend: 1S 380mAh-530mAh LiPo
Suitable for 1.6-inch FPV drone
The package includes a pack of 1 :
1*M1 0803 19000KV Motor
4x M1.4*3mm Screw
The package includes a pack of 4 :
4*M1 0803 19000KV Motor
16x M1.4*3mm Screw
