T-HOBBY F7 35A/45A AIO Flight Controller STM32F722 MPU6500 BMP280 BLHELIS 3-6S 25.5*25.5mm Compatible P1804/F2004/F2203.5 Motor

About T-MOTOR F7 45A AIO

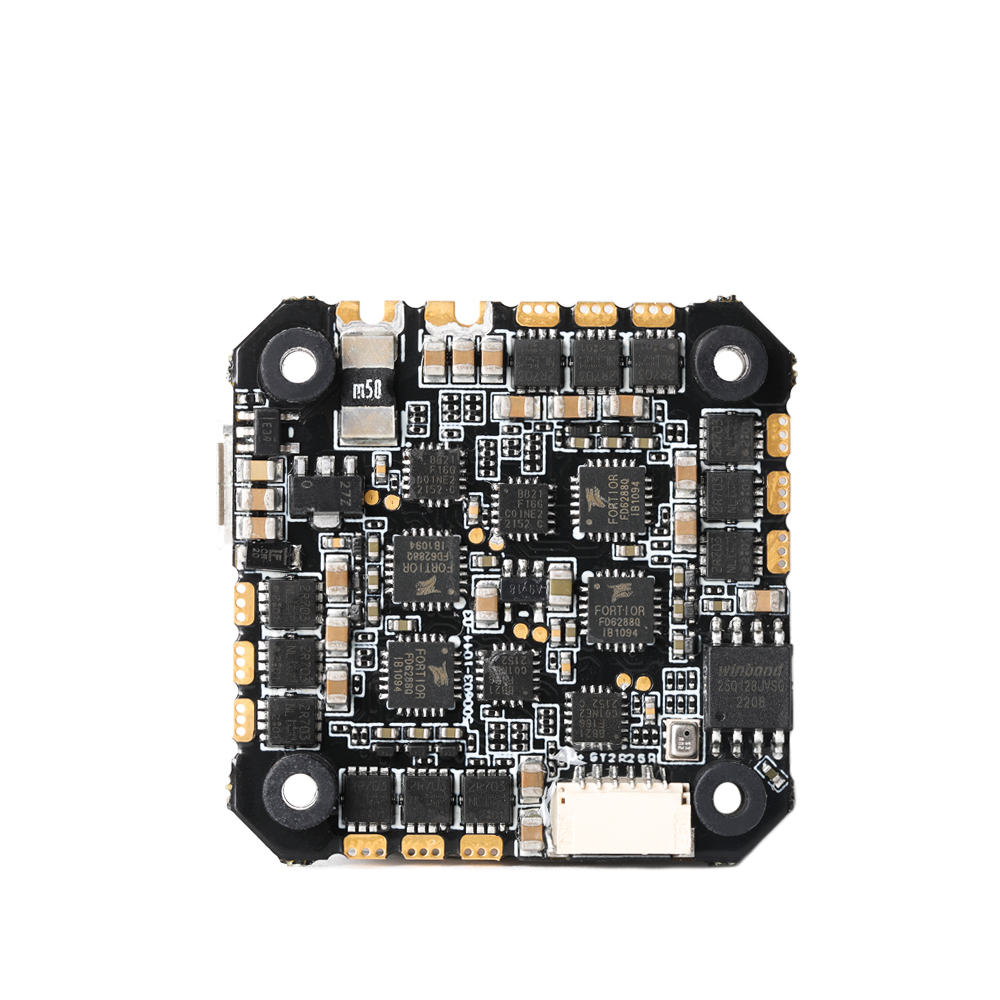

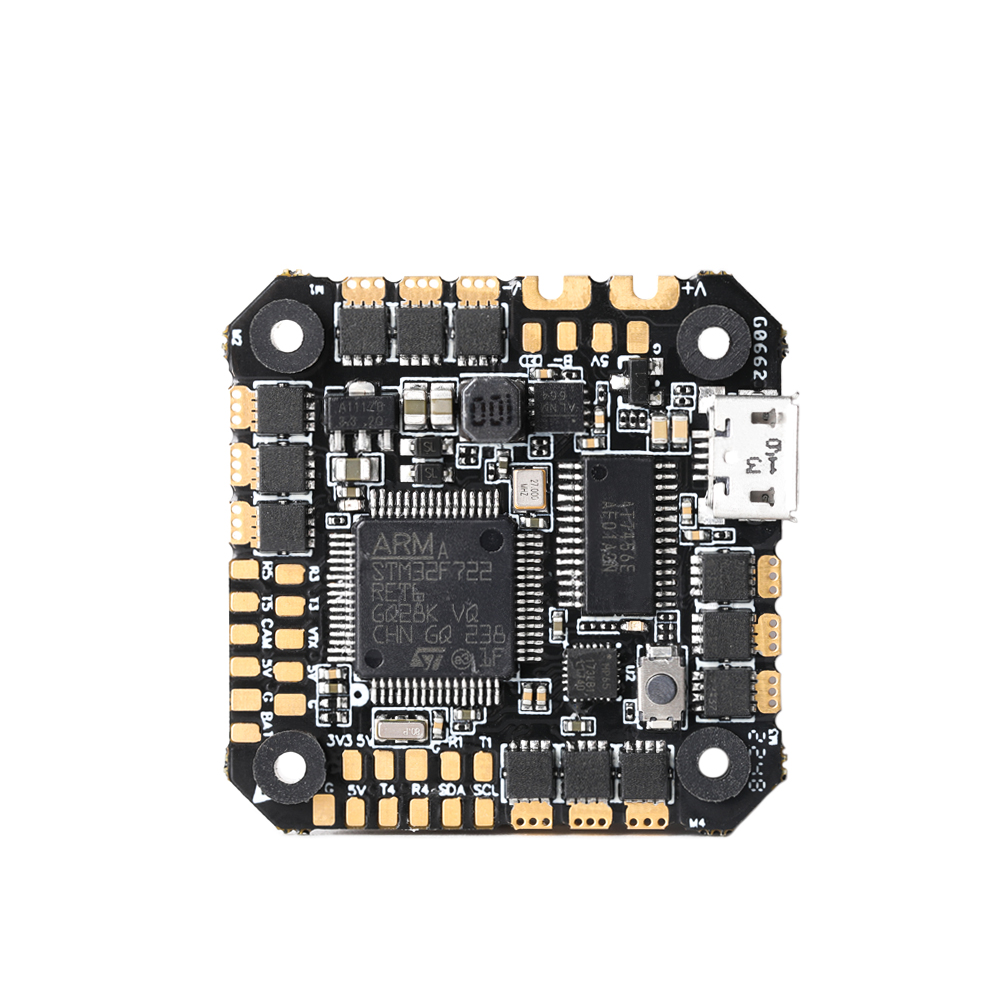

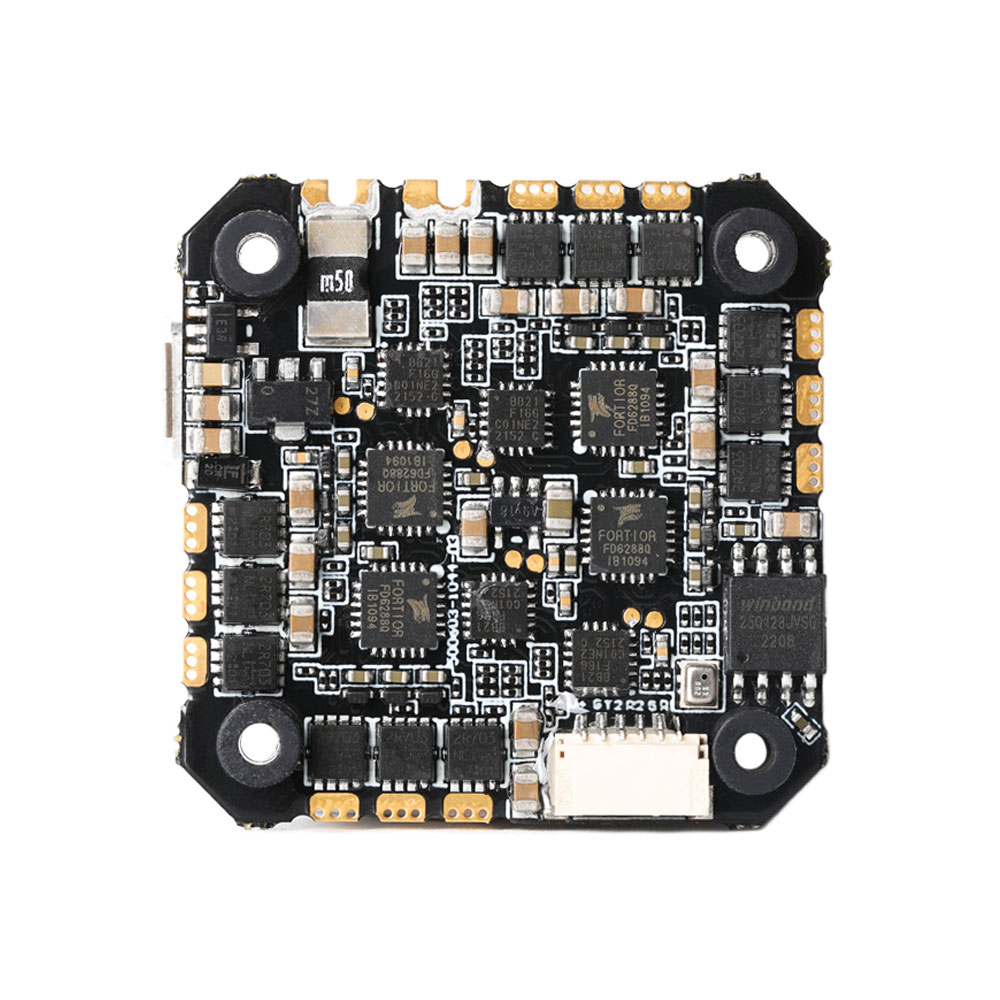

The T-Motor F7 AIO is a compact flight controller that integrates advanced components such as an onboard ESC with Bluejay & BLHeli_S firmware, a quality MPU series gyroscope for improved noise reduction, 16MB Black Box space, and an integrated barometer. Supporting both HD and Analog, this versatile controller offers a current of 45A/50A, a 5V/1.5A BEC, and an HD VTX socket, making it an ideal choice for high-performance drone builds.

F7 45A AIO Highlights:

• Introducing the new F722 45A all-in-one AIO suitable for T-Motor P1804, F2004, F2203.5 motors.
• Equipped with an MPU series gyroscope for lower sensitivities to vibration.
• Features an HD VTX socket and MSP displayport OSD.
• Integrated barometer allows altitude to be displayed on OSD.
• Mounting hole size is 25.5x25.5mm.

Packing List Includes:

• 1x T-Motor F7 AIO - F722 FC + 45A 2-6S BLHeli_S ESC (HD + Analog) - 25x25

Features:

• Onboard ESC works with Bluejay & BLHeli_S ESC firmware.
• A quality MPU series gyroscope for better noise reduction.
• 16MB of Black Box space.
• Supports HD and Analog.
• Integrated Barometer.
• HD VTX Socket.

About T-MOTOR F7 35A AIO

The T-Motor F7 35A All-In-One (AIO) is the ideal electronic speed controller for advanced RC pilots, boasting 35 amp maximum continuous current, providing superior power and performance for modern multi-rotors. This easy-to-install unit also includes a redundant power supply for added protection.

F7 35A AIO Highlights:

• Introducing the new F722 35A all-in-one AIO suitable for T-Motor P1804, F2004, F2203.5 motors.
• Equipped with an MPU series gyroscope for lower sensitivities to vibration.
• Features an HD VTX socket and MSP displayport OSD.
• Integrated barometer allows altitude to be displayed on OSD.
• Mounting hole size is 25.5x25.5mm.

Packing List Includes:

• 1x T-Motor F7 AIO - F722 FC + 35A 2-6S BLHeli_S ESC (HD + Analog) - 25x25

Features:

• Onboard ESC works with Bluejay & BLHeli_S ESC firmware.
• A quality MPU series gyroscope for better noise reduction.
• 16MB of Black Box space.
• Supports HD and Analog.
• Integrated Barometer.
• HD VTX Socket.
