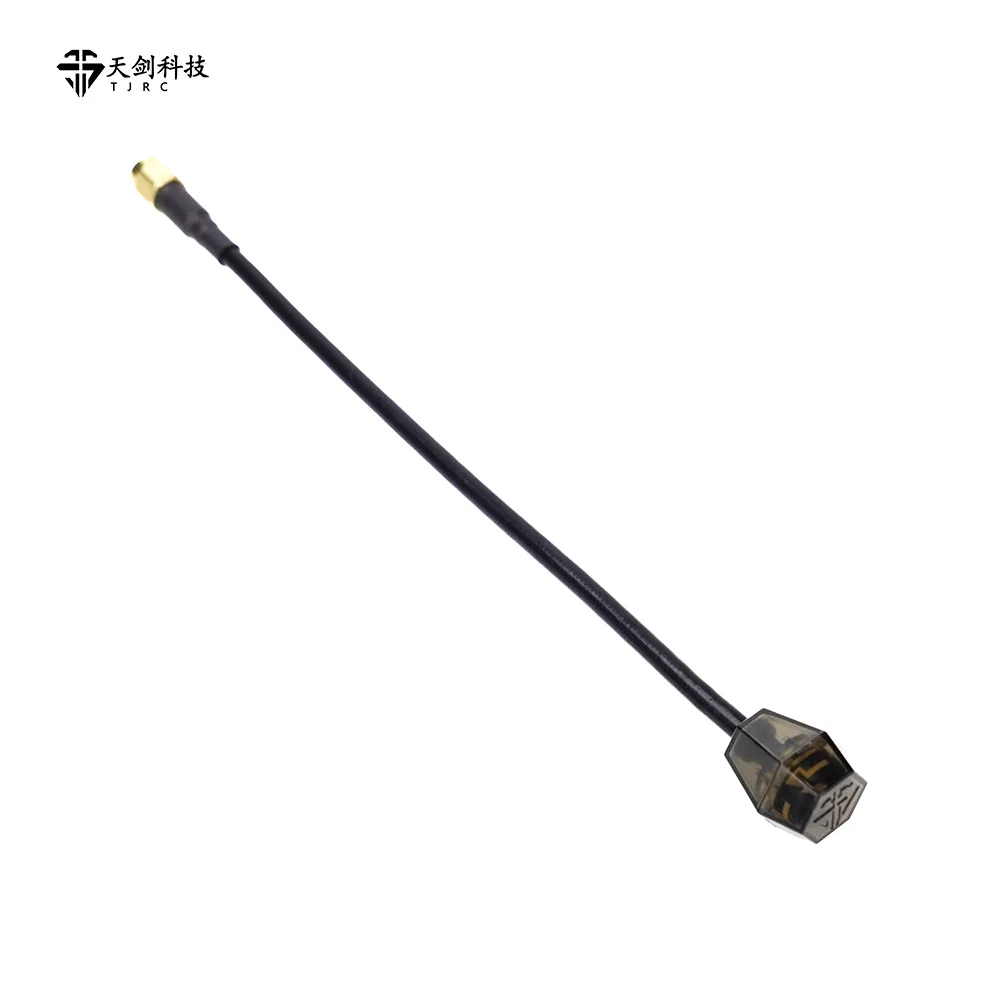

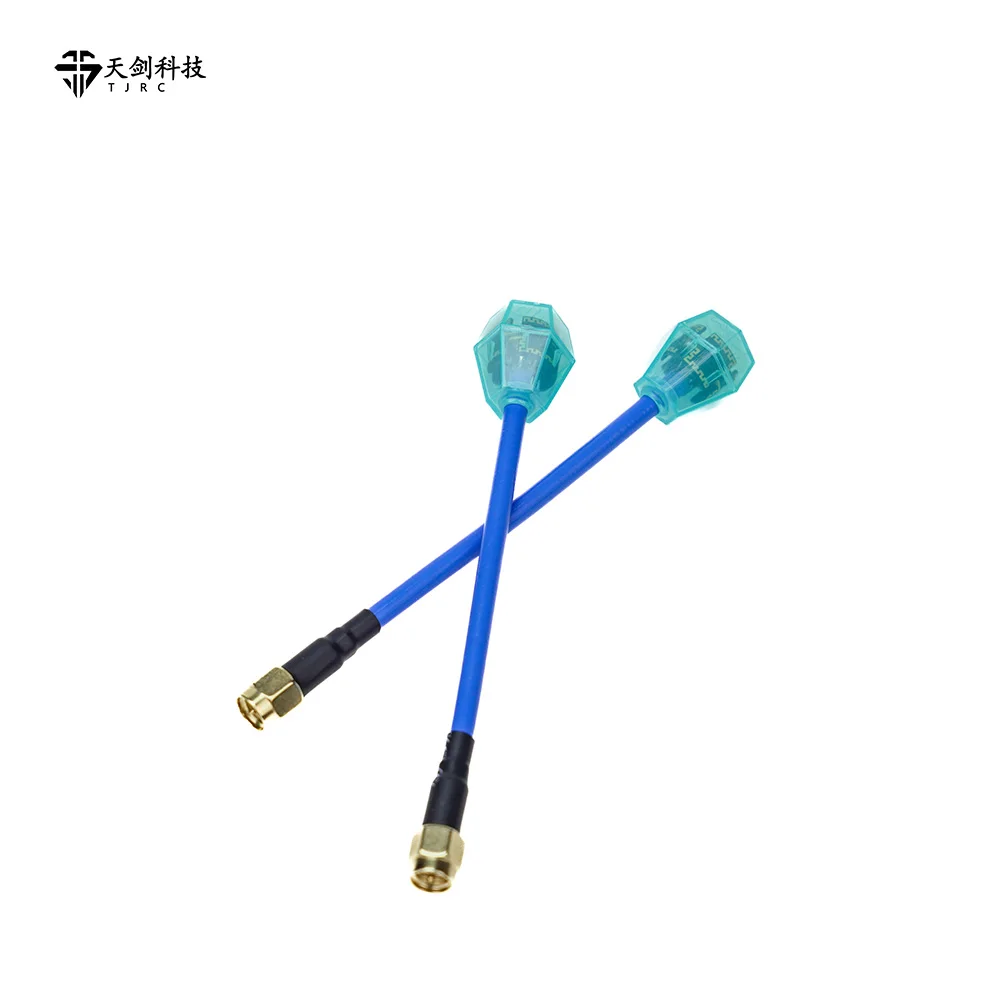

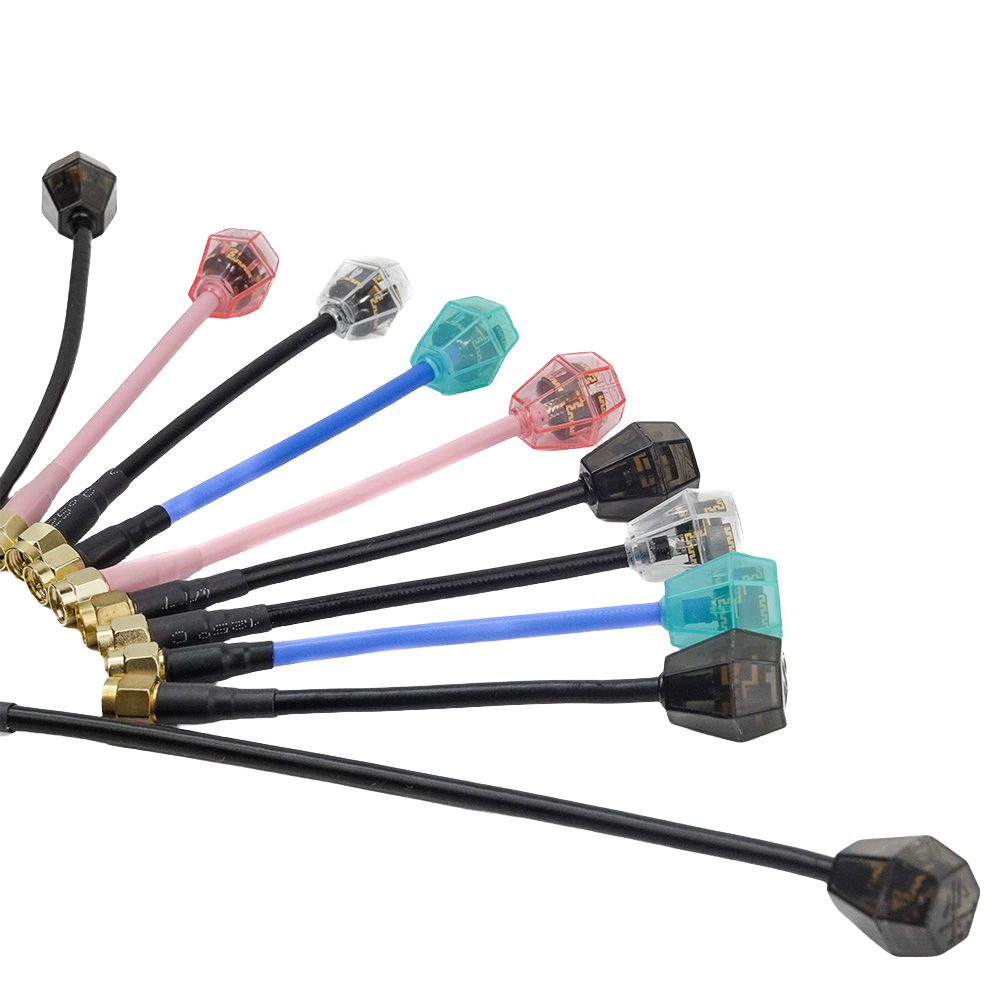

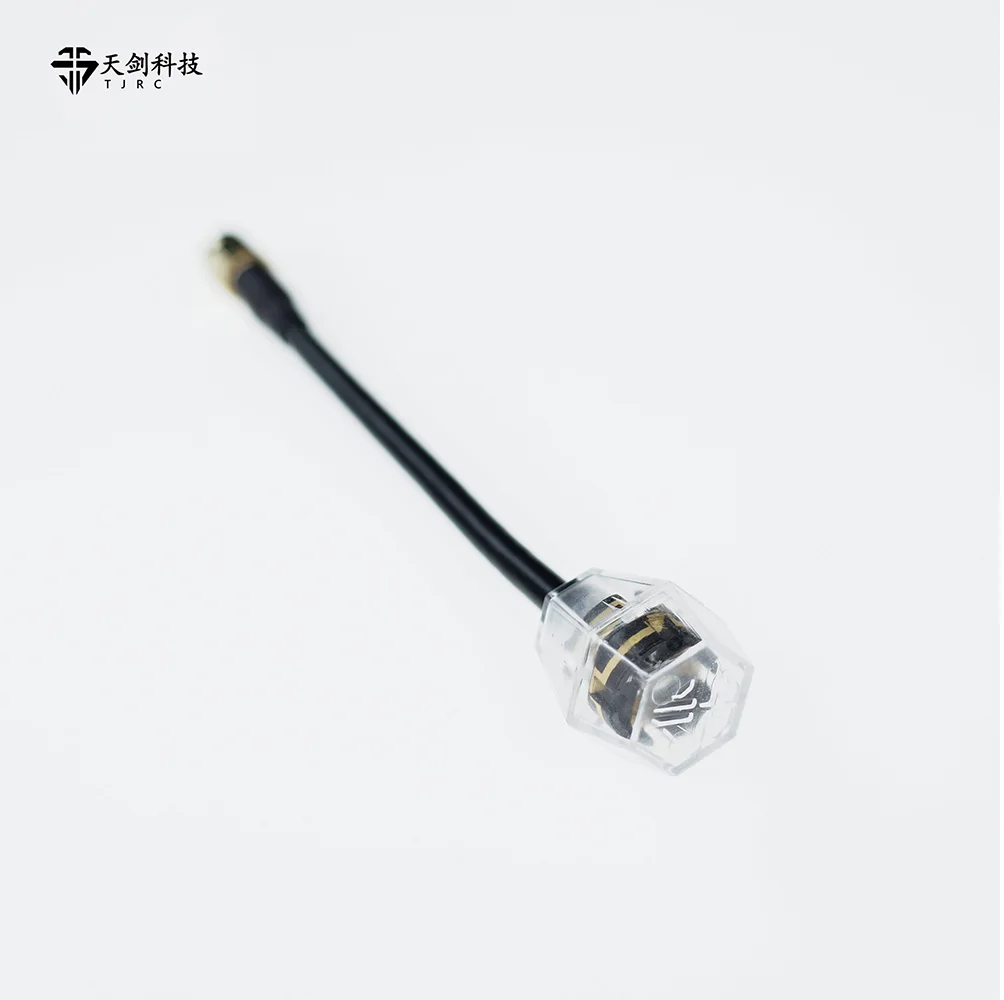

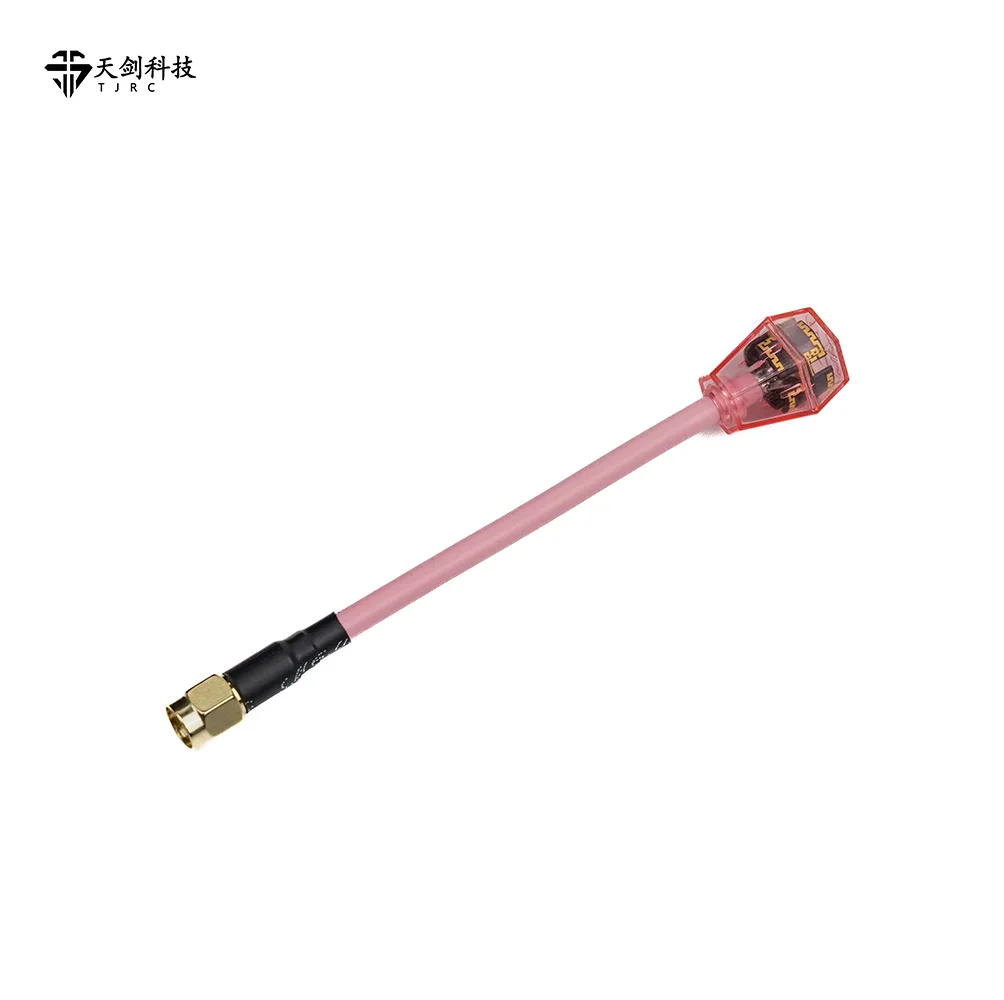

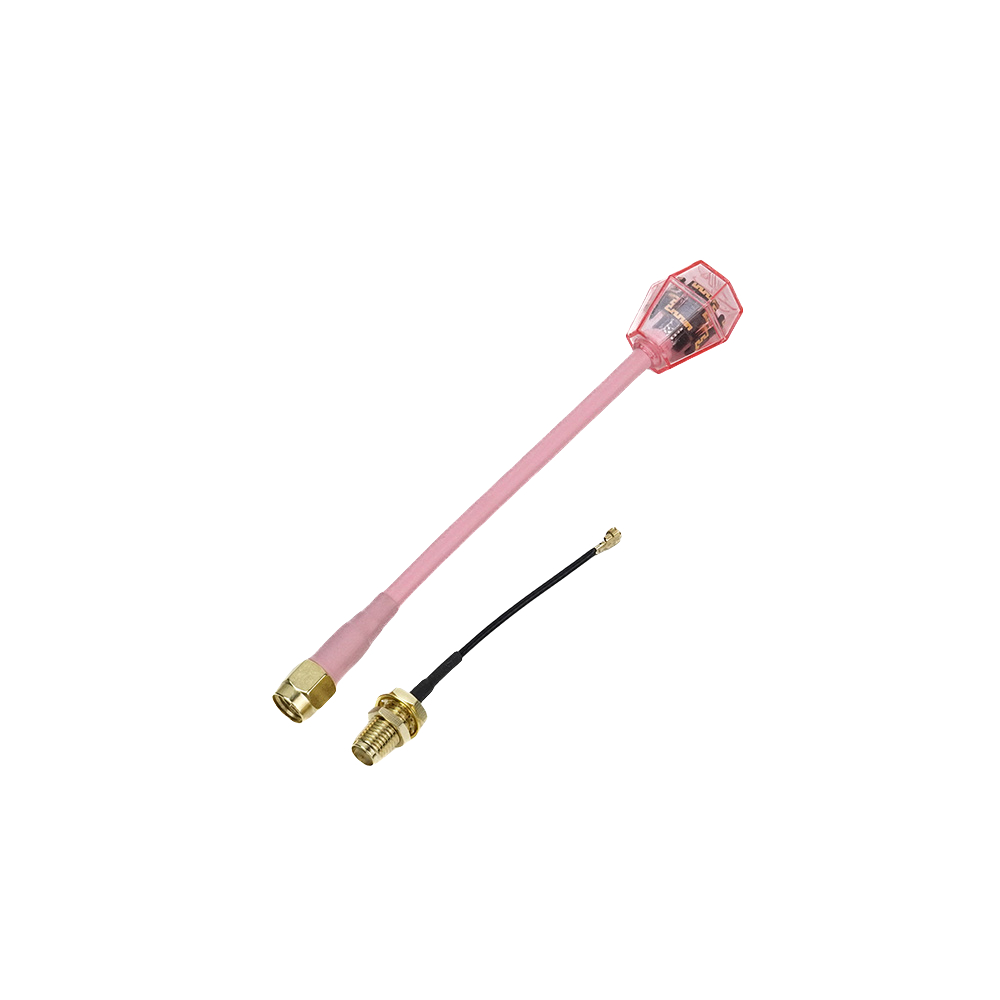

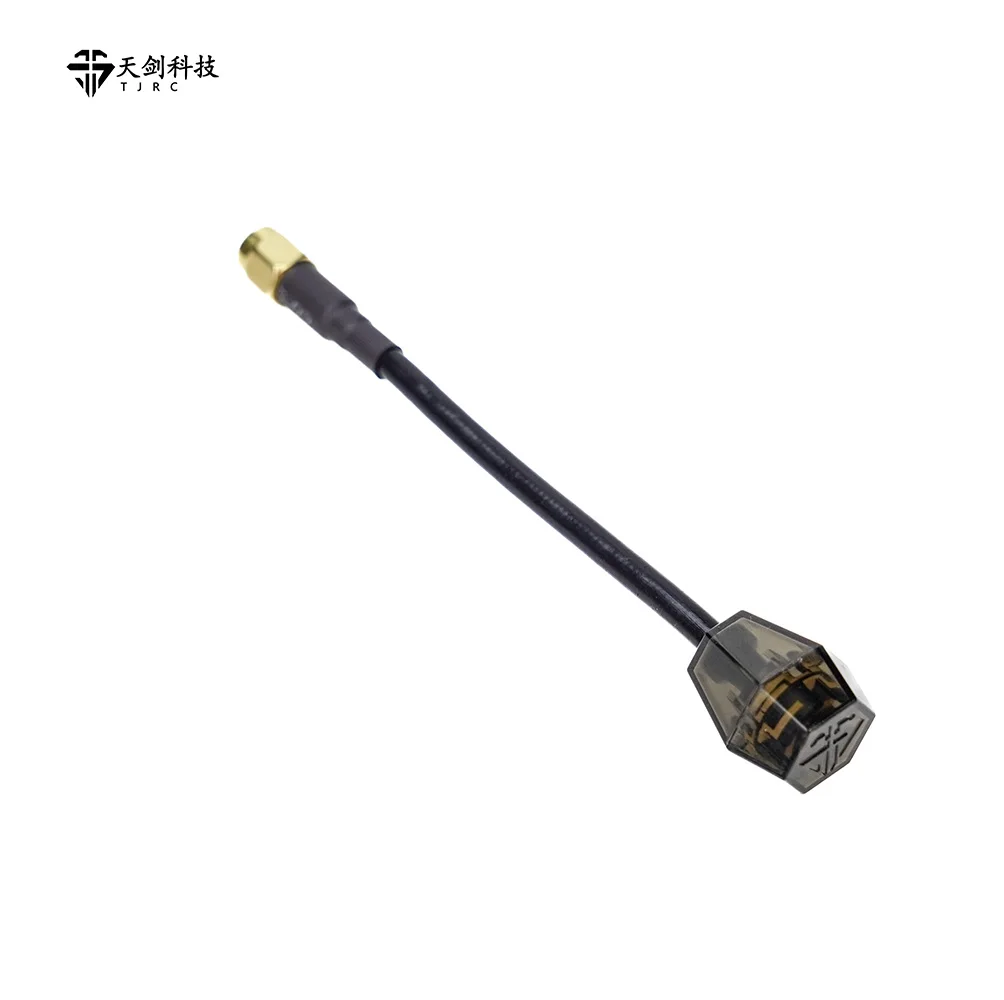

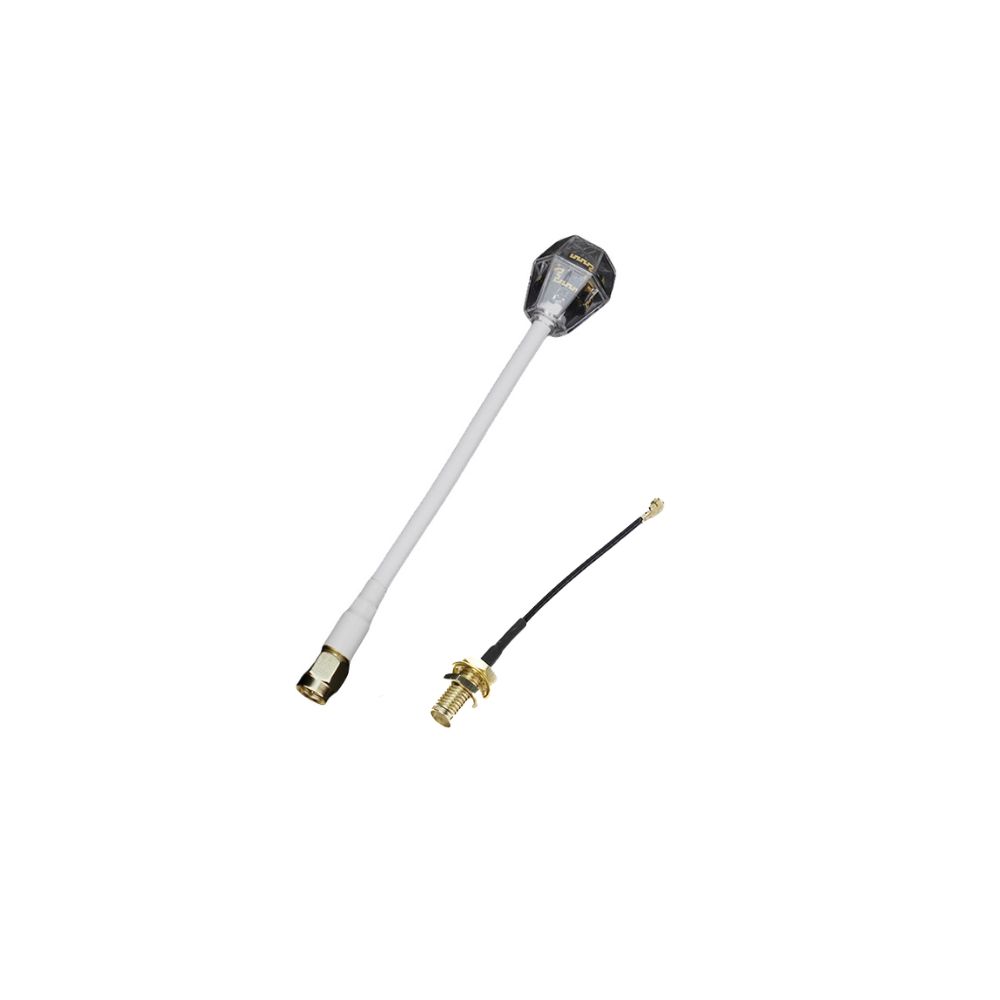

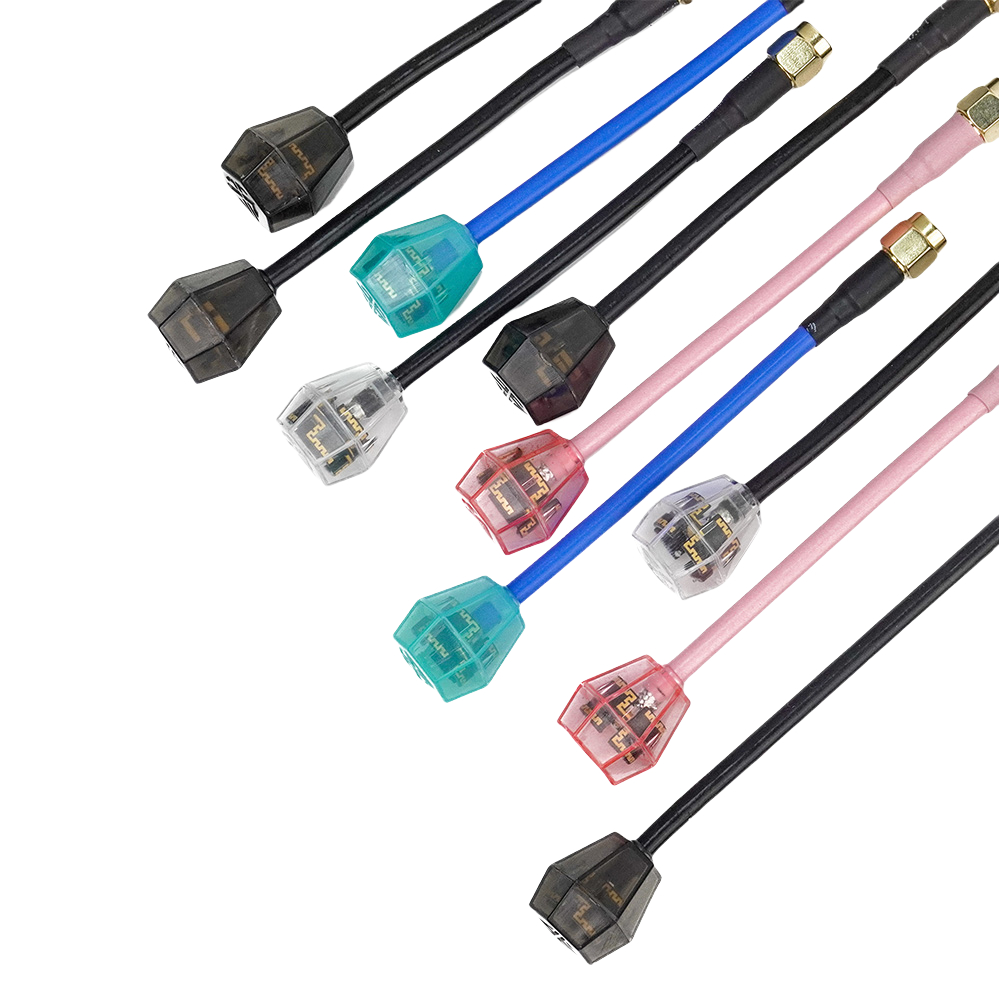

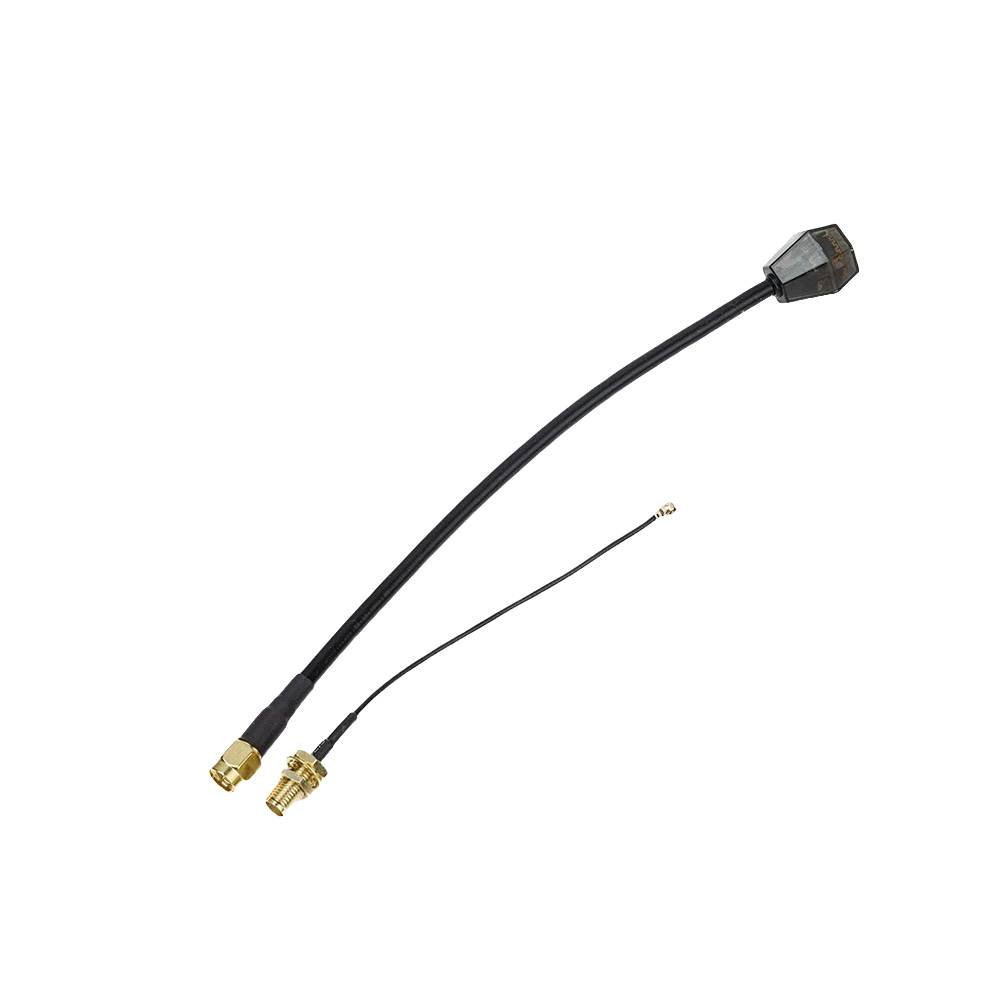

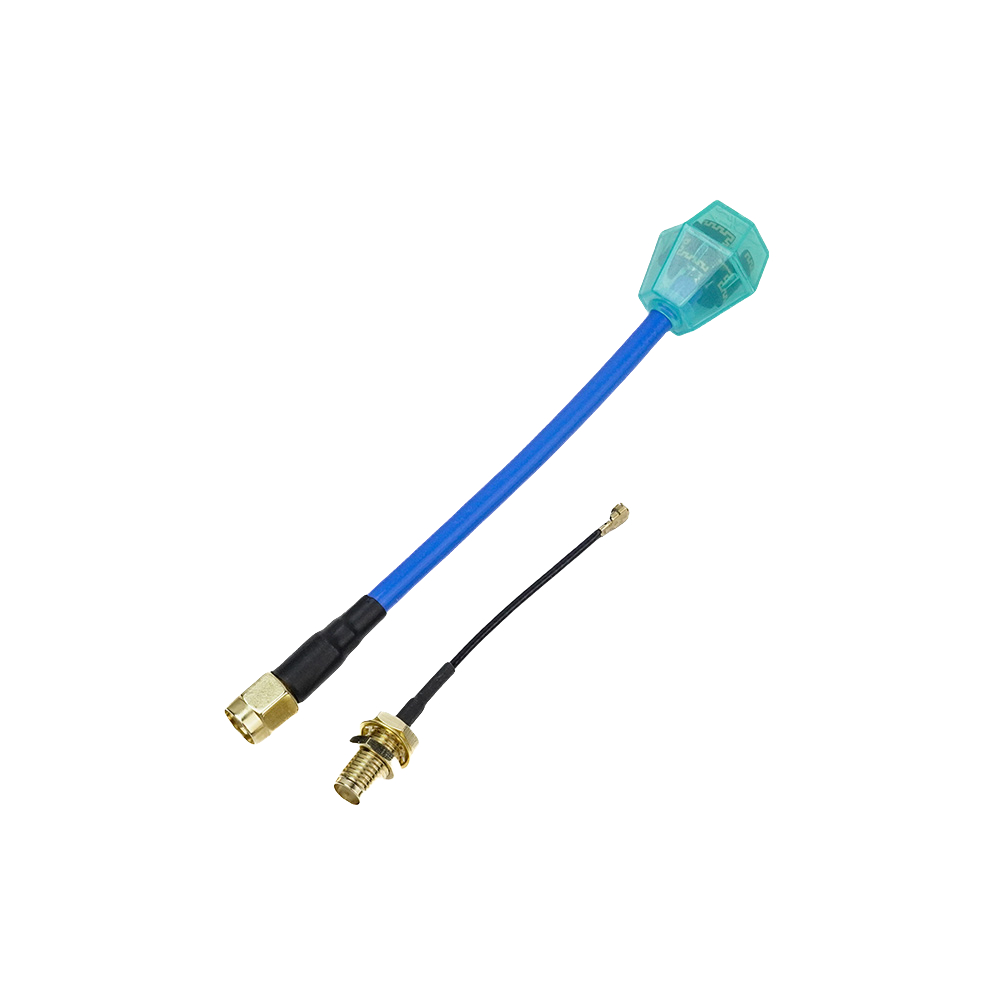

The TJRC 5.8G Antenna LHCP offers reliable FPV performance with SMA and IPEX UFL adapters. Compatible with O4 PRO Transmission, it’s available in 100mm or 180mm lengths and multiple colors, ensuring a customized and secure connection for your drone setup.
Feature
- Support O4 Air Unit PRO Digital Transmission（LHCP）

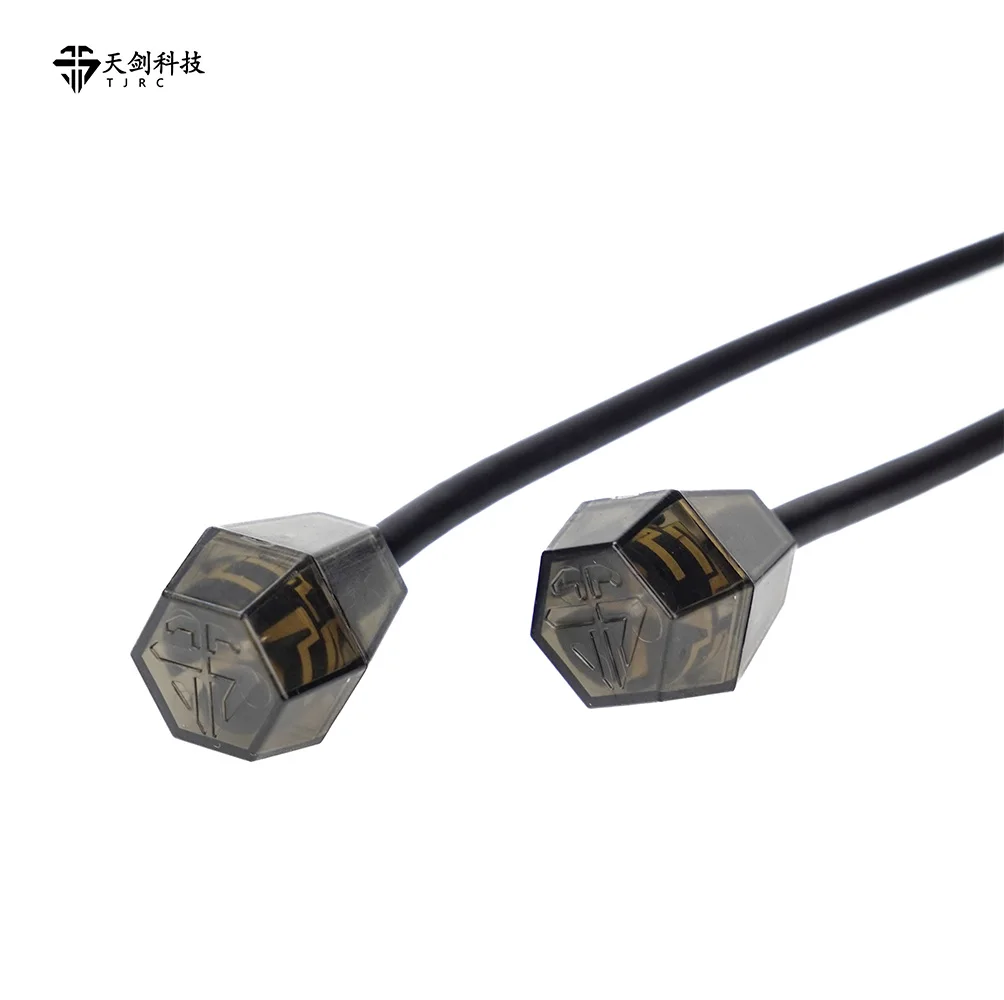

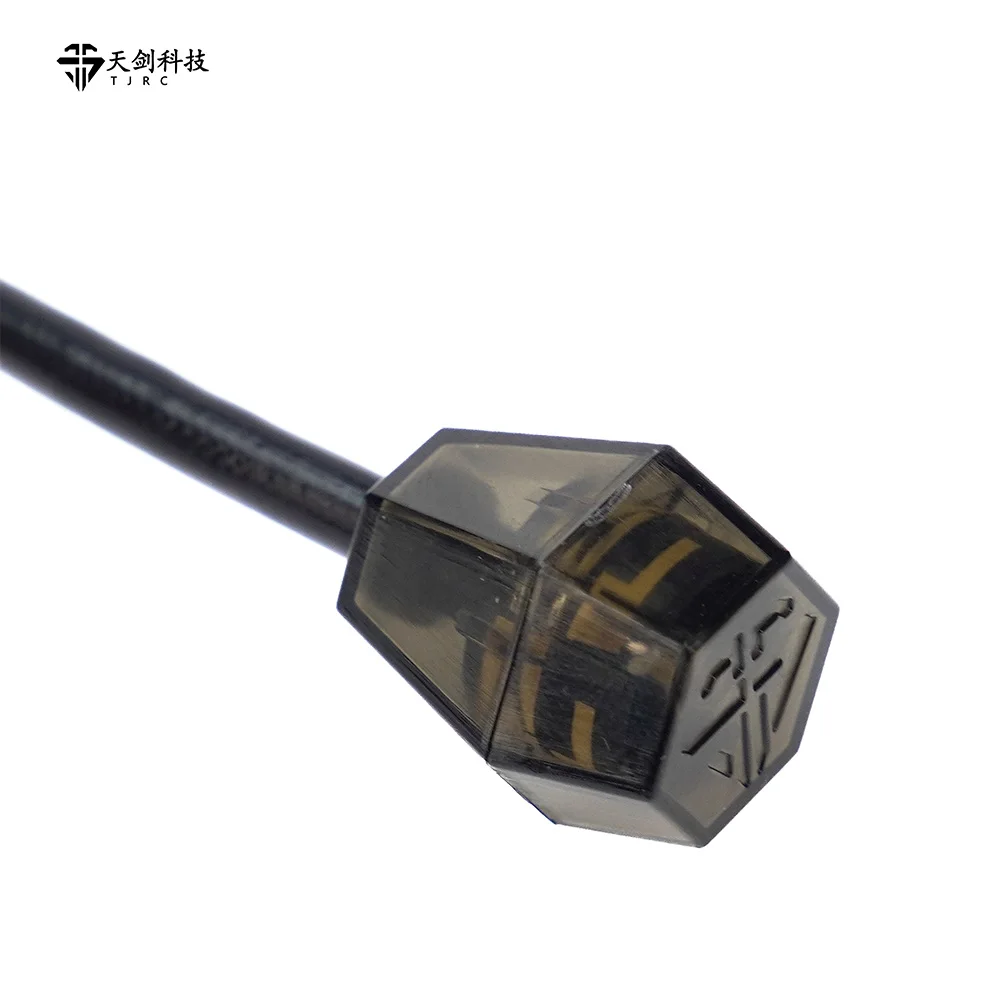

- Using the built-in Gold Plate, the performance is more stable

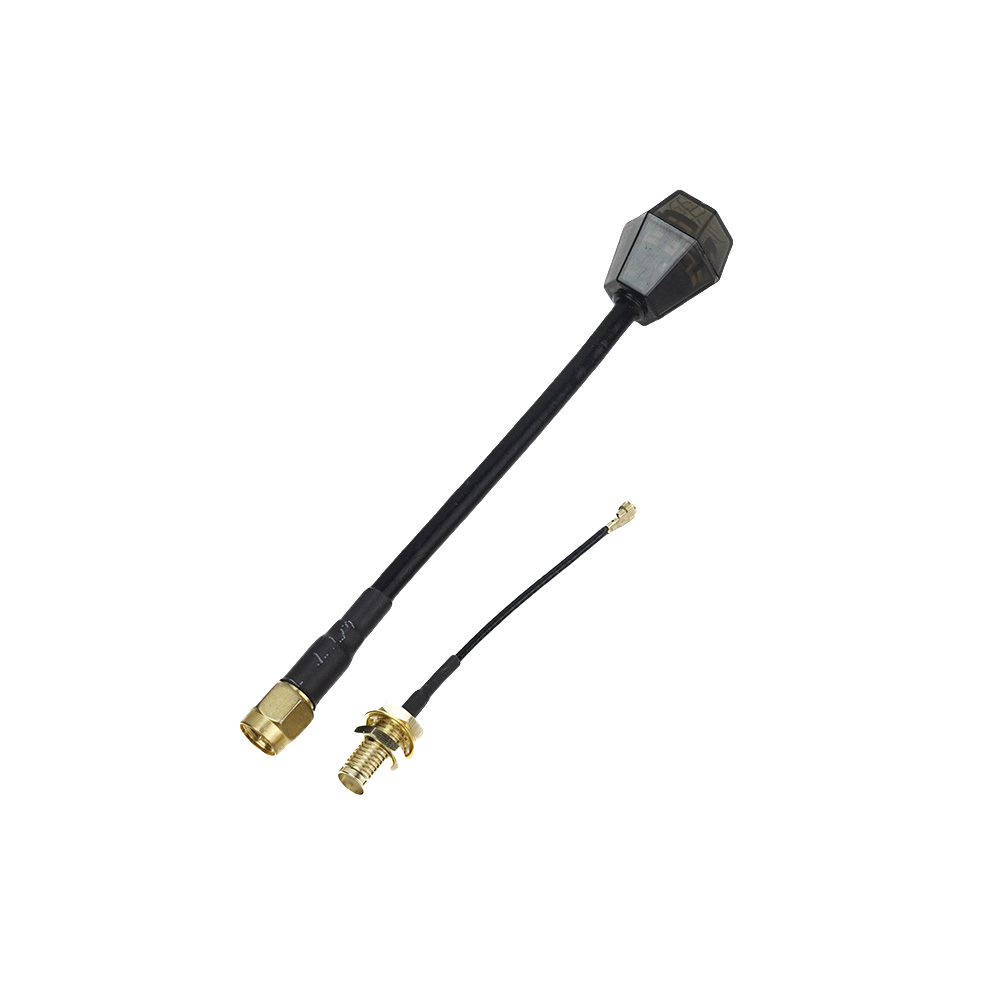

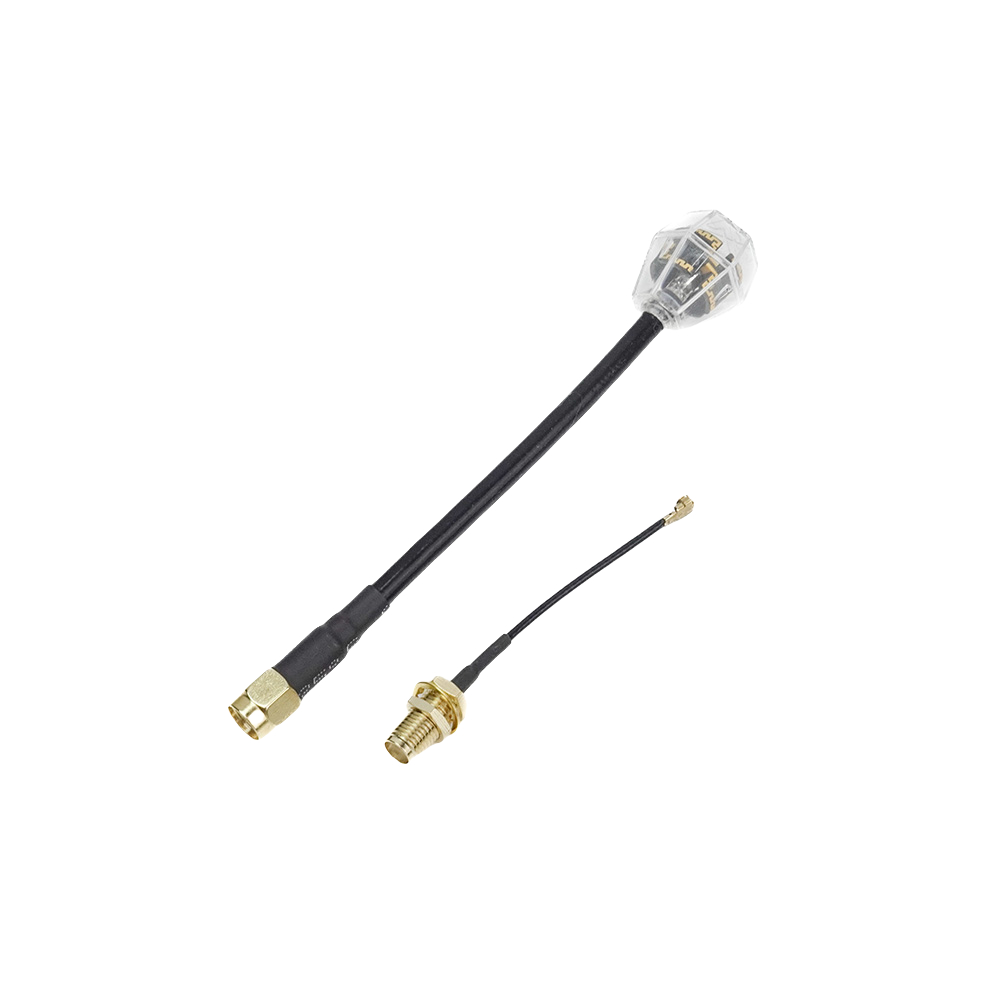

- With ipex ufl Adapter line, it is easier to assemble

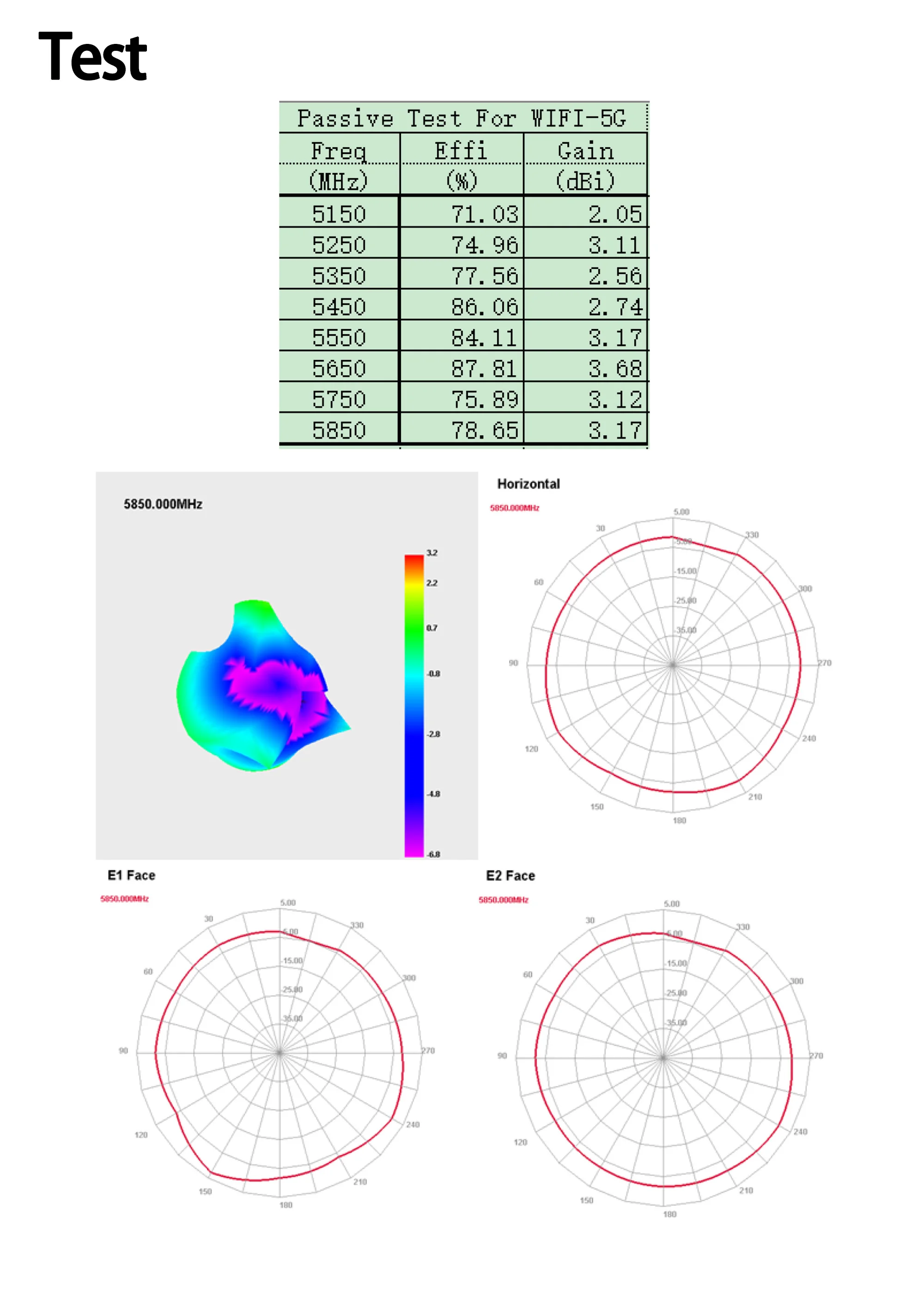

Technical parameters
Frequency range: 5150-5825MHZ
Input impedance: 500hm
Standing wave ratio coefficient: ≤2.0
Antenna Gain: 2.0-3.0dbi
Radiation efficiency: 70-80%
Antenna type: Circular polarized omnidirectional antenna
Interface type: SMA
Interface method: internal thread inner needle
Working temperature: -40~+75℃C
Antenna size (L*W*H): 111*18.5*18.5mm
Weight: 12g
