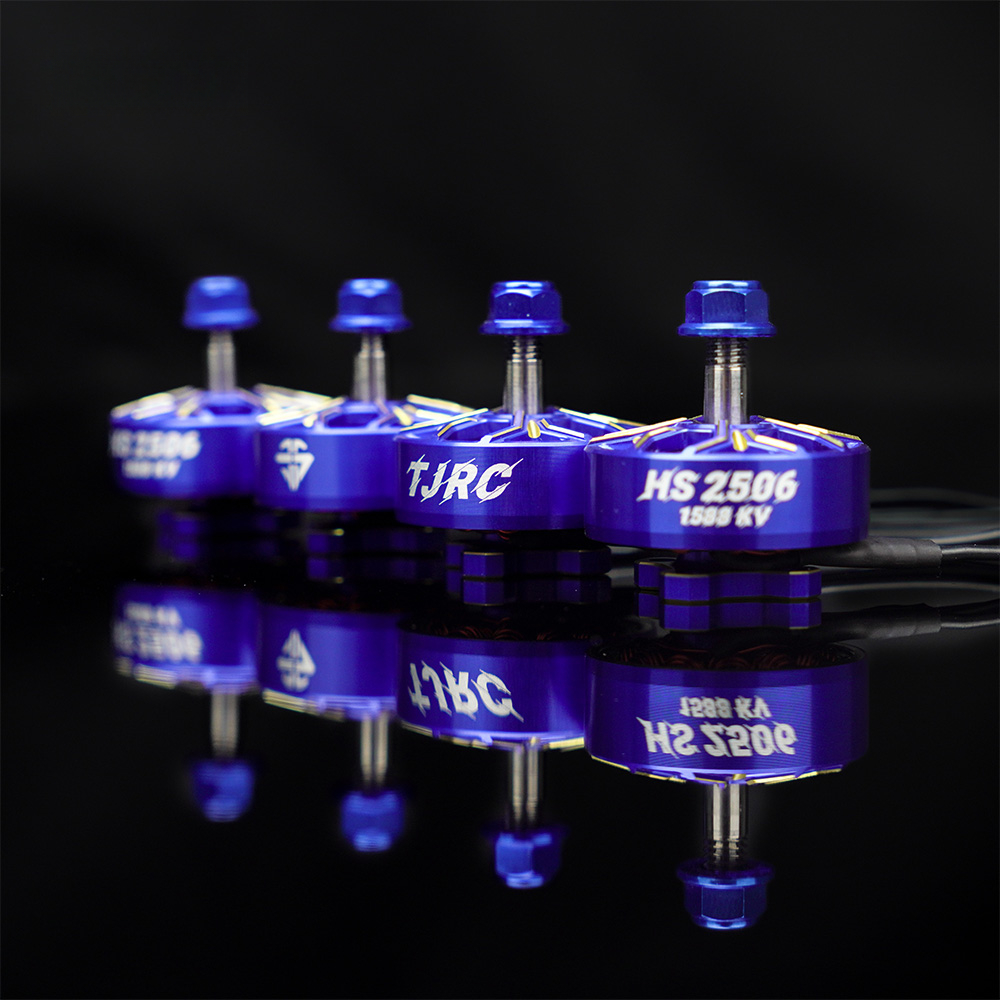

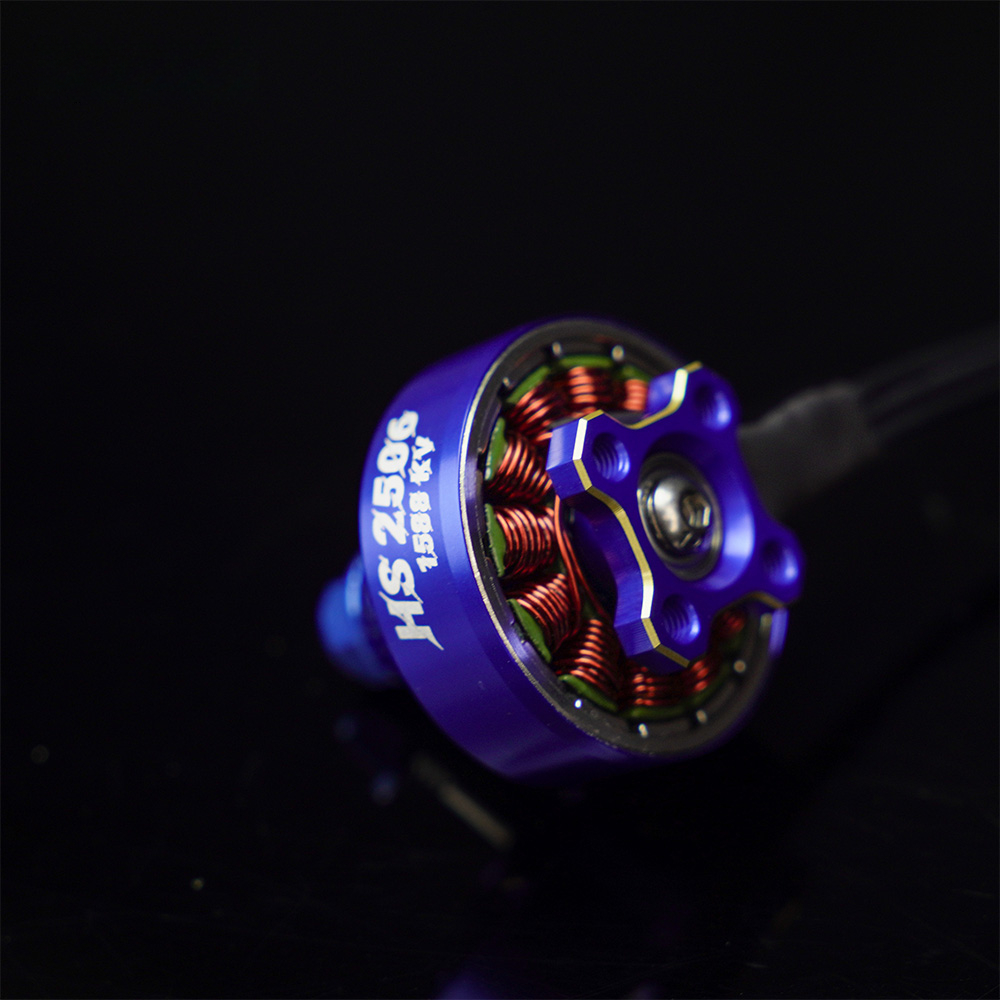

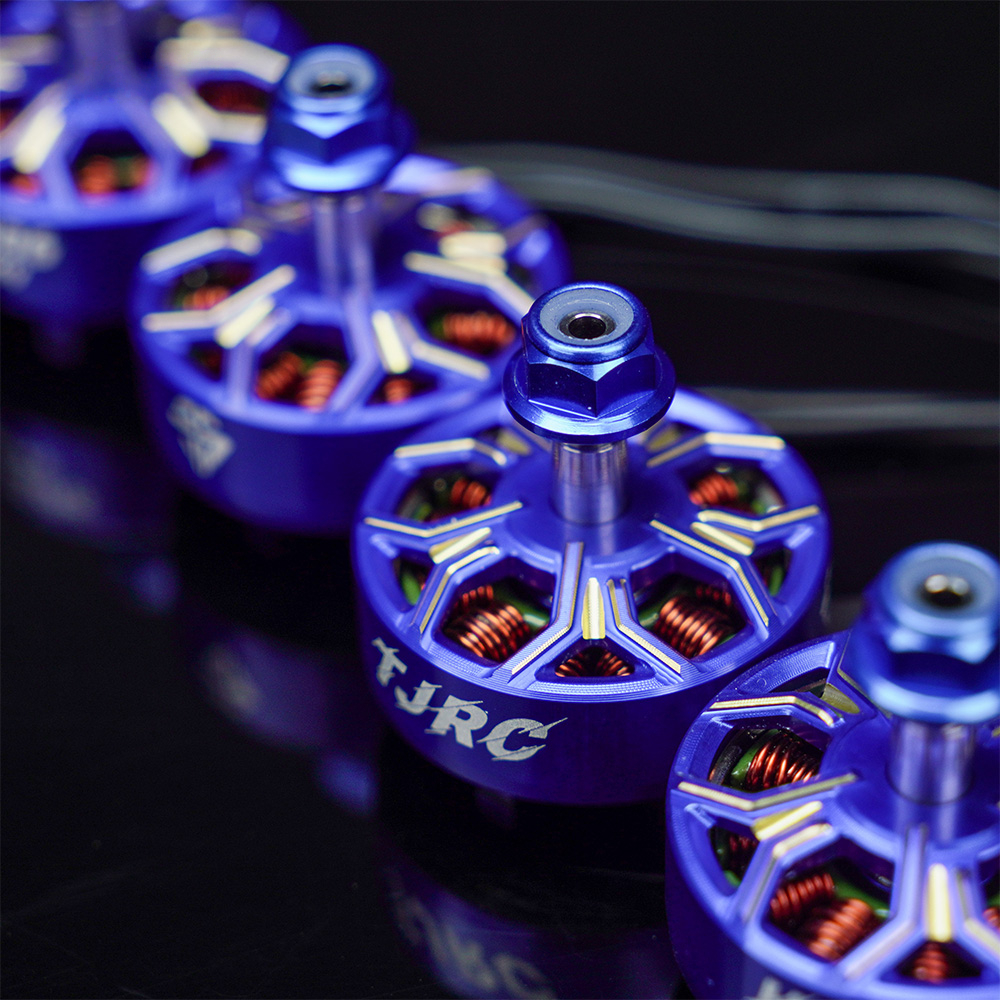

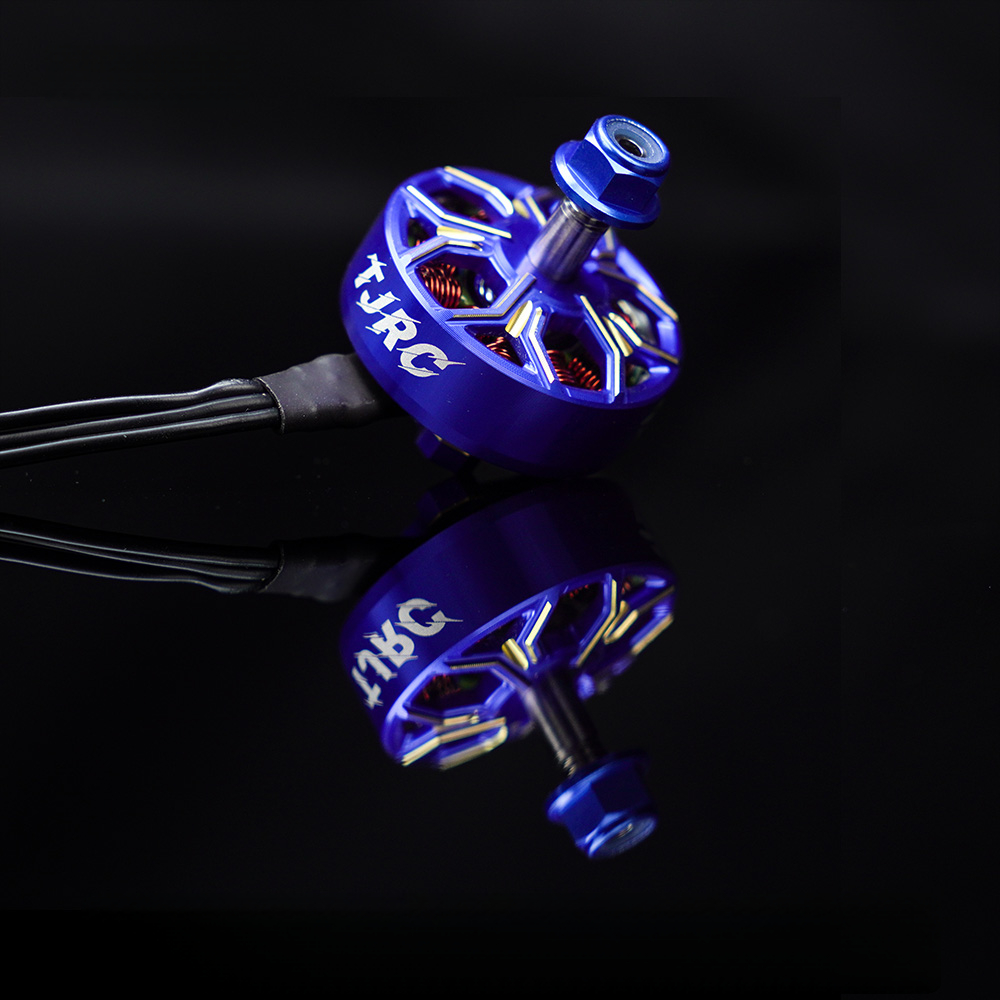

TJRC HS2506-1588KV motor, titanium alloy shaft +240℃ temperature resistance, N52SH neodymium iron boron high magnetic power, gorgeous housing, flagship FPV motor.
Basic Parameters
Model: TJRC-2506
Slot Pole: 12N14P
Shaft Diameter: IN: 4mm OUT: 5mm

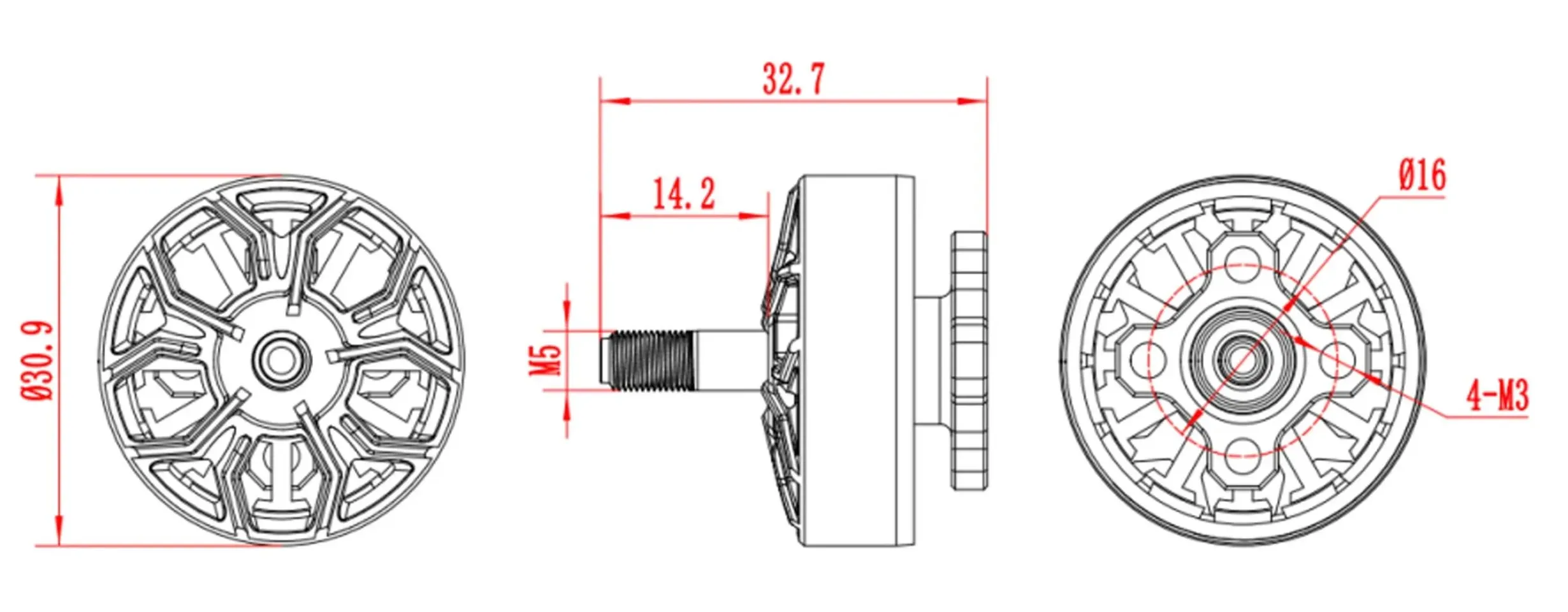

Dimensions: 30.9mm x 32.7mm
Lead Wire Size: 150mm (20-gauge black silicone wire)
Mounting Hole Spacing: Φ16mm M3 x 4 holes
Weight: 38.2g (excluding accessories)
Technical Parameters
KV Value: 1588
Recommended Voltage: 6S (25.2V)
Phase-to-Phase Internal Resistance: 60mΩ
No-Load Current: 1.2A/10V
Maximum Current: 35.6A
