About this product

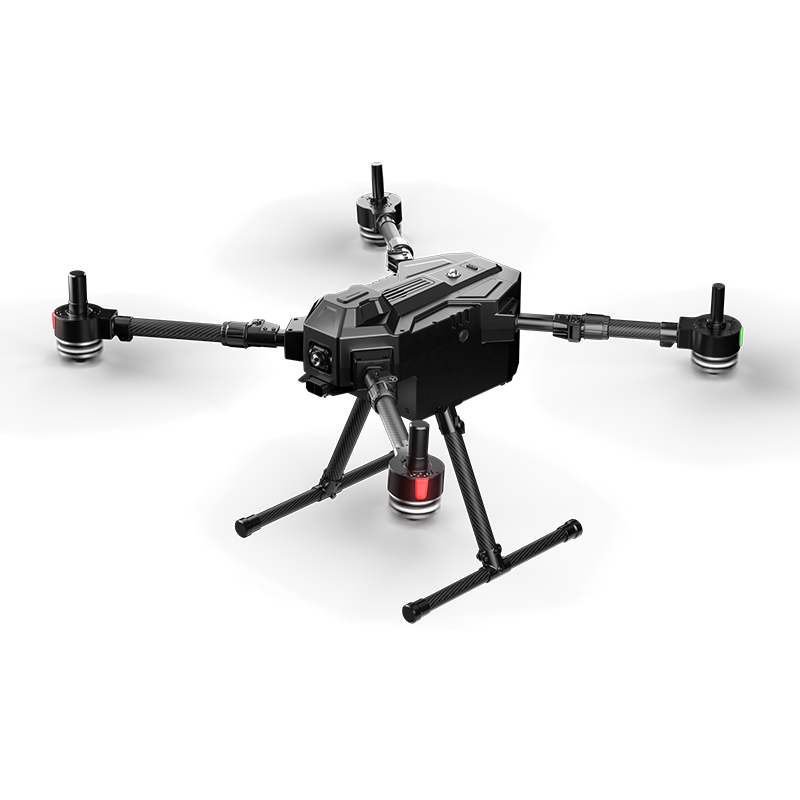

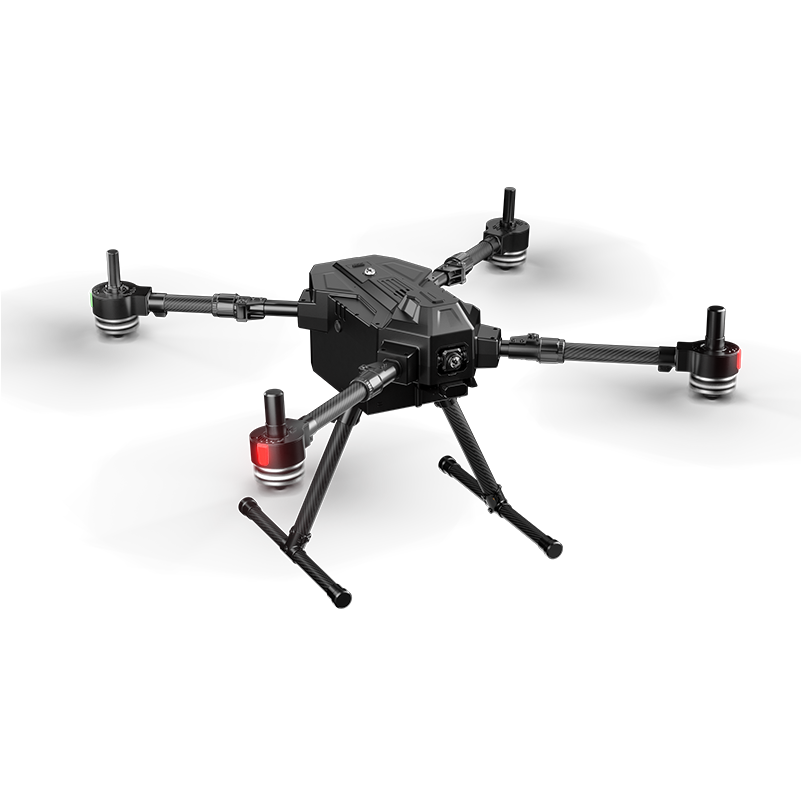

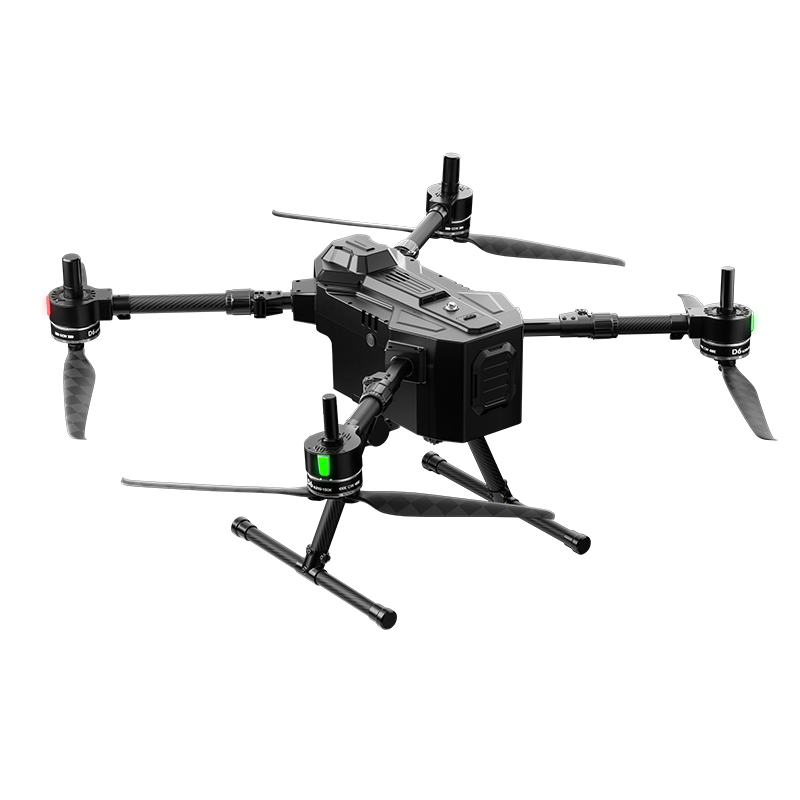

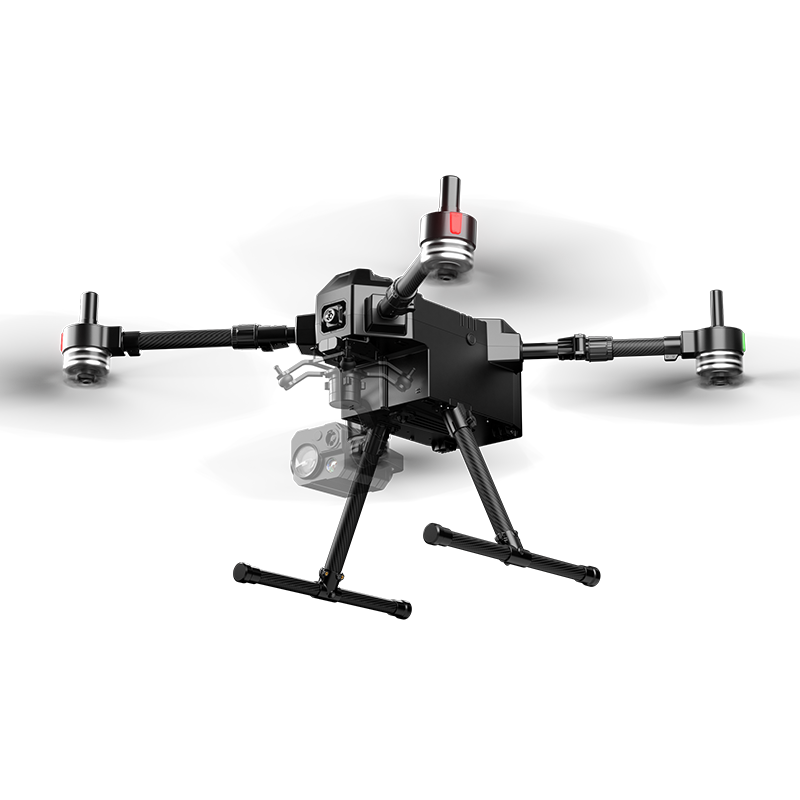

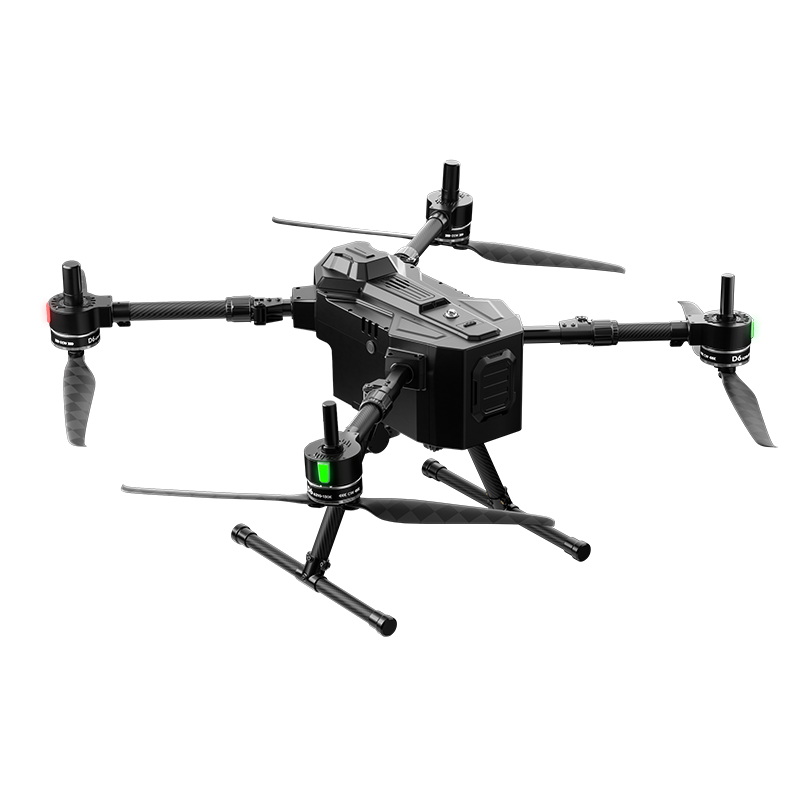

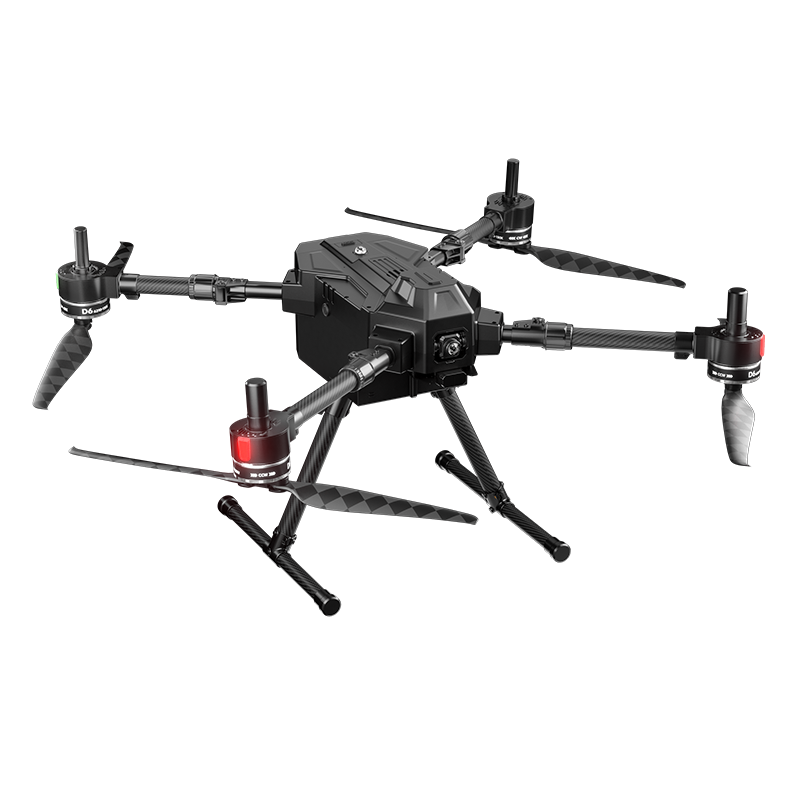

UniDrone E900 is a feature-rich drone with many practical features. It can be modified into a tethered drone. The fuselage is equipped with dual power plug input ports. The tethered module power can be connected through the XT90 power socket, and the tethered module can be placed in the battery compartment. The model is equipped with a forward laser obstacle avoidance system with an obstacle avoidance distance of up to 12 meters and an obstacle avoidance speed of 8 meters per second. In addition, UniDrone E900 has reserved installation holes and outlet holes at the front and bottom of the fuselage. The center board inside the fuselage also has reserved XT602 12S power interface and XT303 12V power interface, which can meet the needs of installing functional modules such as loudspeakers and lighting.
In terms of flight functions, UniDrone E900 can set up photo taking or video recording at the route node through the route planning function of the UniGCS ground station. Its remote control distance can fly smoothly for 10 kilometers at an altitude of 100 meters in the suburbs with few obstructions. The drone has IPX5 waterproof performance and can fly normally in rainy days, but the prerequisite is that the mounting module must also have the same level of waterproof performance. In terms of battery life, it can last for 56 minutes when equipped with a smart battery and 46 minutes when using the recommended soft pack battery. The recommended load range of UniDrone E900 is 0-2.1 kg, and the installation center of gravity should be as close to the middle of the fuselage as possible. In addition, this model is compatible with SIYI's full range of pod products and has good compatibility.
Features
55-min Max Flight Time
35-km Max Transmission Range
Powerful AI Recognition & Tracking

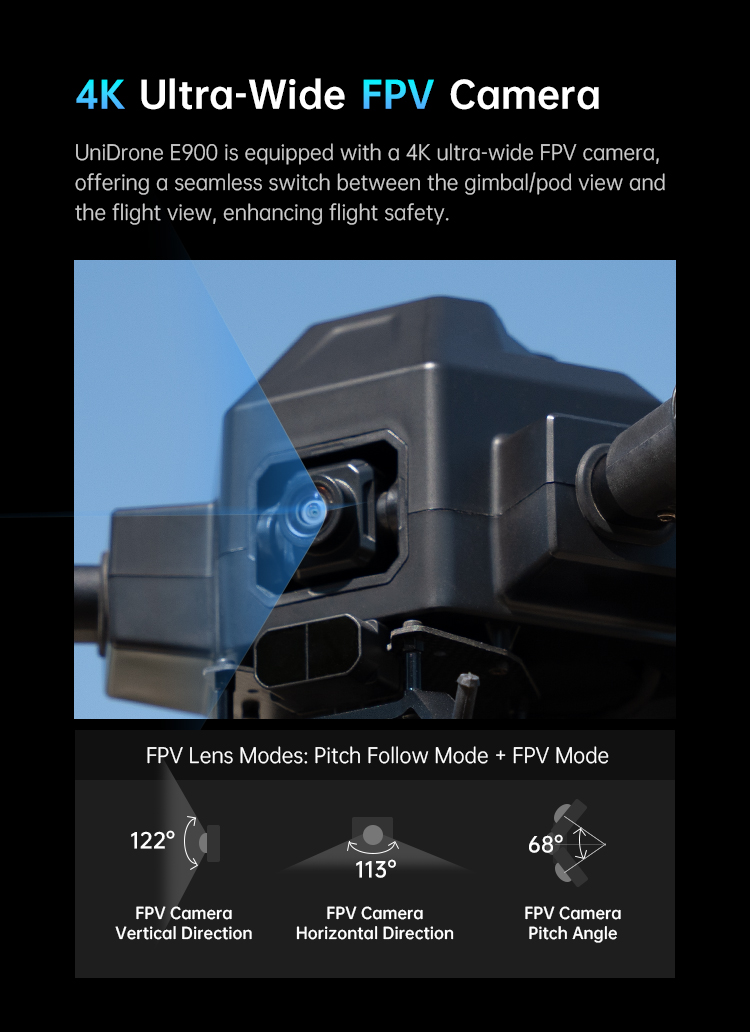

4K Ultra Wide FPV Camera

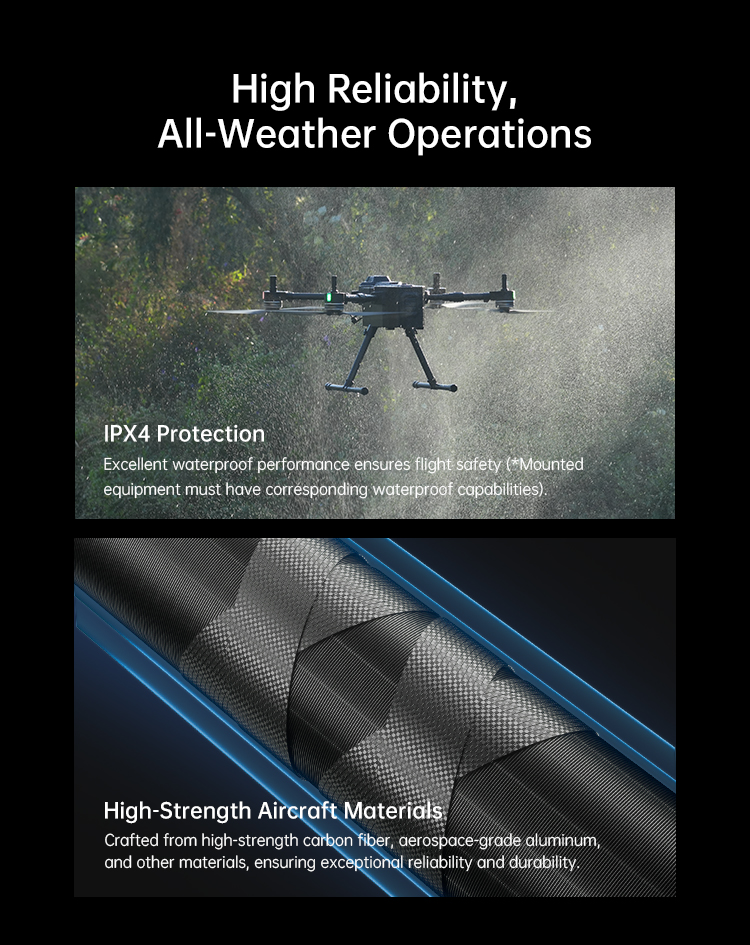

IPX4 Protection
Foldable Arms & Quick-Release Landing Gear
High-Strength Aircraft Body
Flexible Expansion for Diverse Application Scenarios

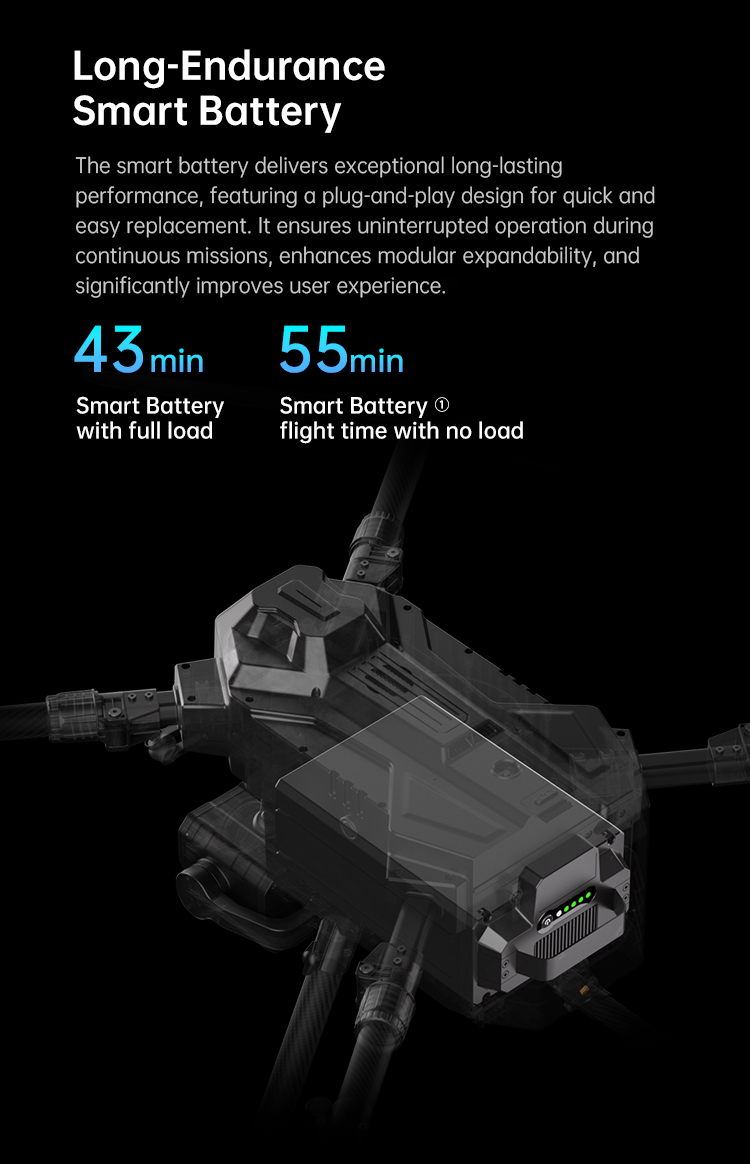

Long-Endurance Smart Battery

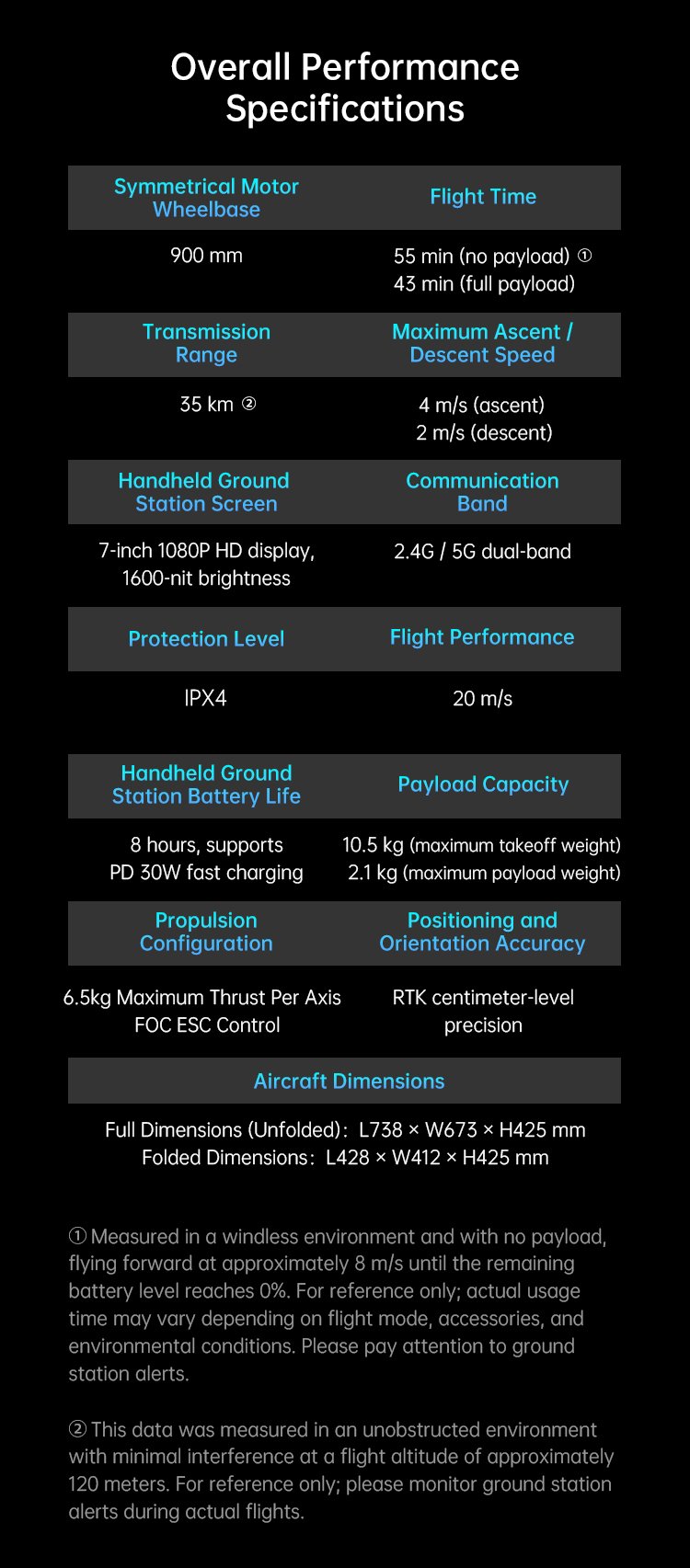

Specs
| Airframe Material |
High-strength engineering plastics, aviation aluminum |

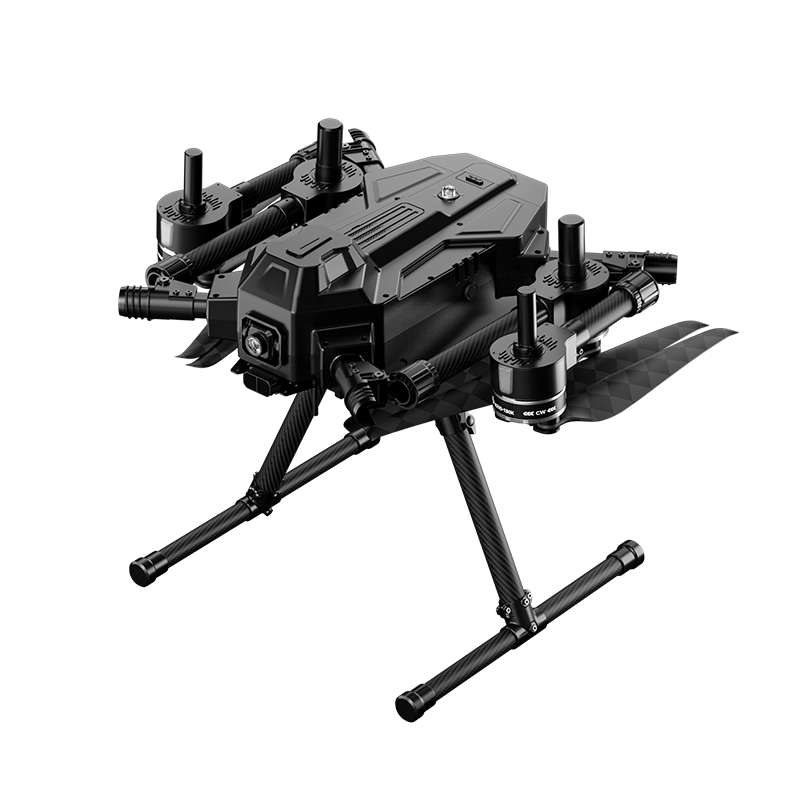

| Arm Folding Method |
Horizontal folding |
| Unfolded Dimensions (excluding propellers) |
L738mm * W673mm * H425mm |
| Folded Dimensions (including propellers) |
L428mm * W412mm * H425mm |
| Motor Diagonal Distance |
900mm |

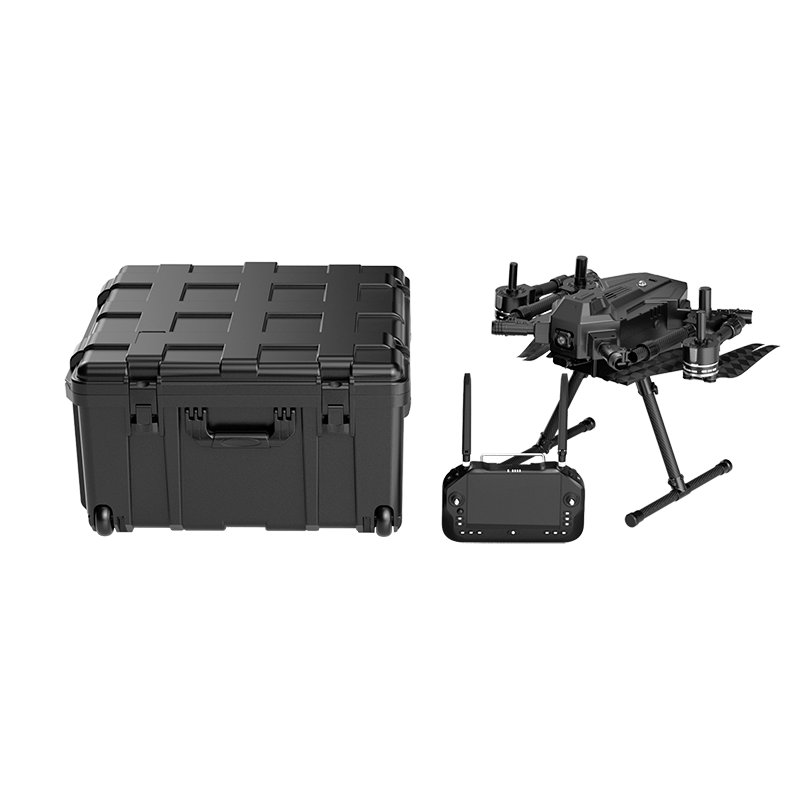

| Packaging Type |
IP67 Explosion-proof Safety Case |
| Propeller Size |
22-inch folding propellers |

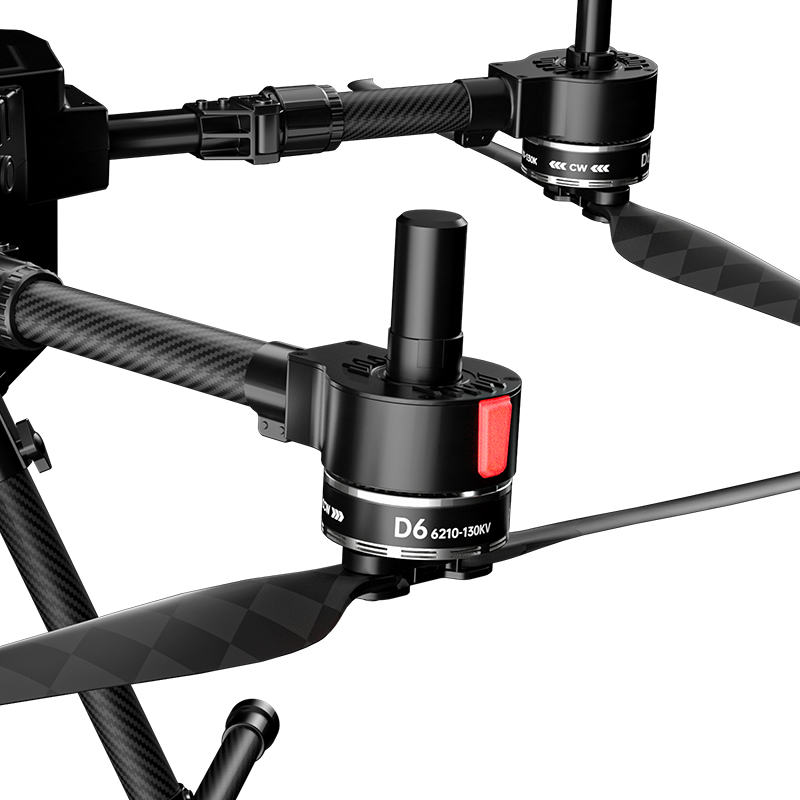

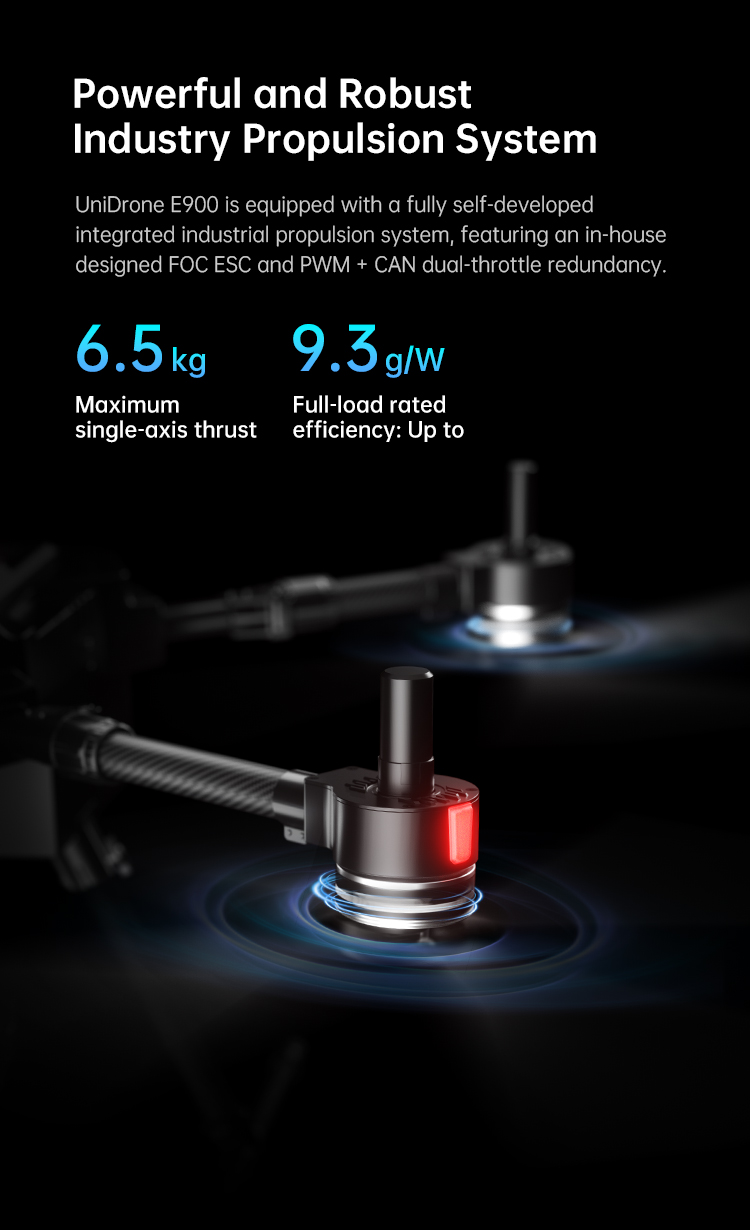

| Motor Model |
6210 Brushless Motor |
| Motor KV Rating |
130KV |
| ESC Control Mode |
FOC Control |
| ESC Maximum Current |
55A |
| Empty Weight (without battery) |
4.7 kg |
| Maximum Takeoff Weight (with smart battery) |
8.4 kg |
| Maximum Takeoff Weight |
10.5 kg |
| Maximum Ascend Speed |
4 m/s |
| Maximum Descend Speed |
2 m/s |
| Maximum Horizontal Flight Speed |
20 m/s |
| Maximum Flight Altitude |
5000 m |
| IP Protection Rating |
IPx4 |
| Wind Resistance |
11.5 m/s |
| Strobe Light Frequency |
1.5 Hz |

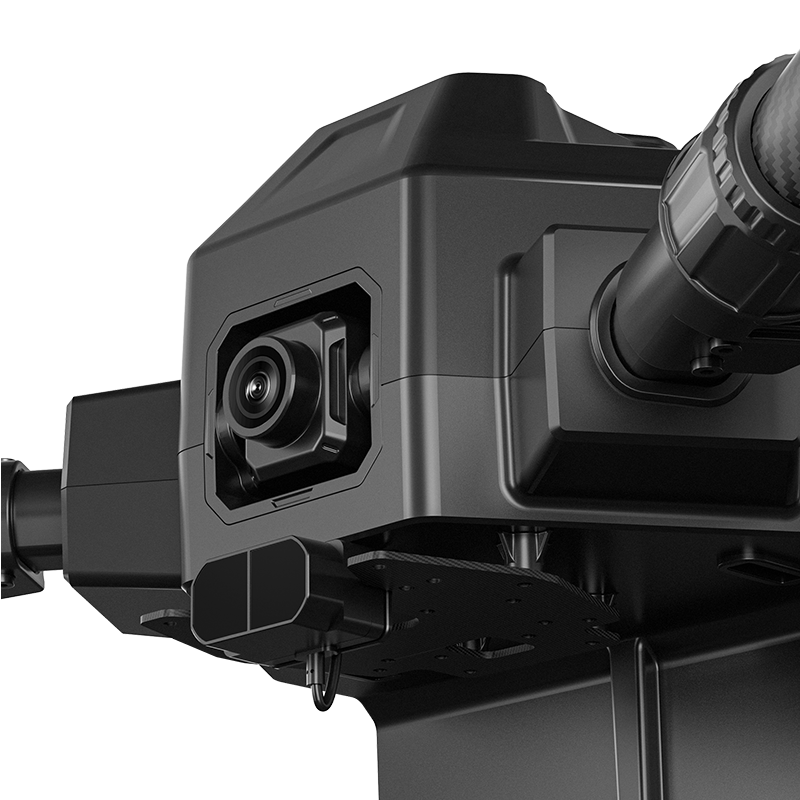

| FPV Camera |
Field of View (FOV): Horizontal 122°, Vertical 113° Controllable Tilt Angle: 68° |
| FPV Camera Recording |
Supports 4K SD card recording |
| FPV Mode |
Pitch Follow Mode + FPV Mode |
| Operating Voltage |
12S * Maximum Voltage 53.4V |
| Battery Type |
Smart Battery |
| Battery Compartment Dimensions |
L215mm*W144mm*H80mm |
| Mounting Installation Method |
Front + Rear Expansion Ports |
| Obstacle Avoidance Type |
LiDAR Obstacle Avoidance |
| Obstacle Avoidance Direction |
Forward-facing |
| Obstacle Avoidance Range |
0.1m to 12m (forward-facing) |
| Obstacle Avoidance Speed |
8 m/s |
| LiDAR Light Intensity Resistance |
70 Klux (kilolux) |
| Obstacle Avoidance Field of View |
3.6° |
| Capacity |
17,000 mAh |
| Single Cell Voltage |
4.35 V |
| Nominal Voltage |
47.4 V |
| Full Charge Voltage |
52.2 V |
| Discharge Current |
Continuous 57A, Peak 95A |
| Charge Current |
19A |
| Weight |
Approximately 3.7 kg |
| Operating Temperature |
-20°C to 50°C |
| Charging Cable |
AS150U connector to charger |
| Hover Endurance (with 17Ah Smart Battery) |
Approximately 55 min |
| Full Load Endurance (with 17Ah Smart Battery) |
Approximately 43 min |
| Endurance with SIYI ZT30 (with 17Ah Smart Battery) |
Approximately 50 min |
| Display |
7-inch touchscreen LCD display, 1080P, 1600 nits |
| Weight |
1.46 kg |

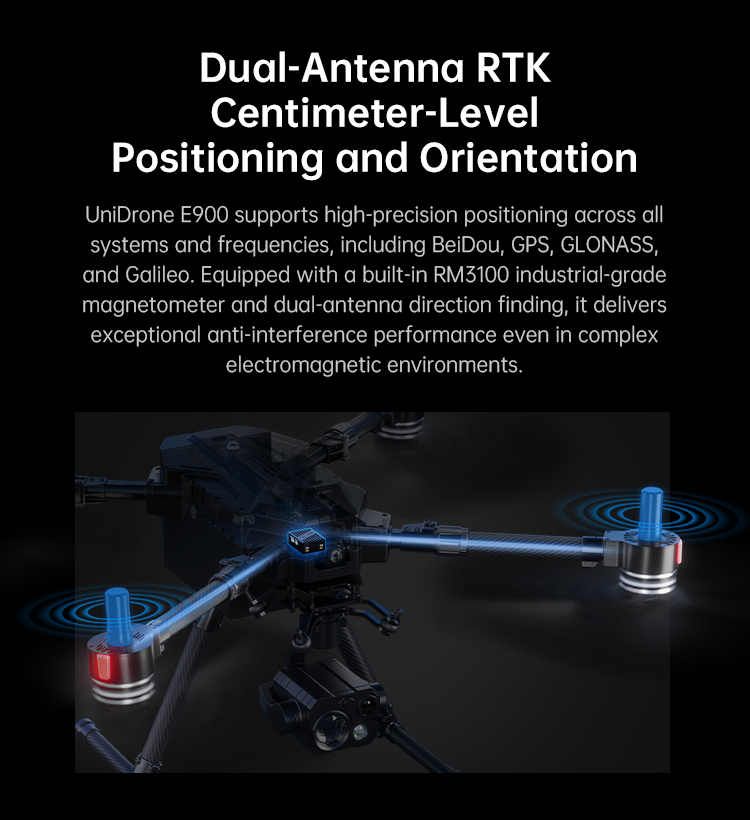

| GNSS |
GPS/GLONASS/BeiDou/Galileo/QZSS |
| Built-in Battery Capacity |
13,400 mAh |
| Endurance Time |
Approximately 8 hours |
| Protection Rating |
IP54 |
| Wi-Fi Protocol |
Wi-Fi 5 |
| Bluetooth |
BT 5.0 |
| Operating Frequency |
2.400 GHz - 2.476 GHz 5.725 GHz - 5.829 GHz |
| Maximum Effective Signal Range (No Interference, No Obstruction) |
35KM |
| Maximum Effective Signal Range (With Interference) |
Rural Area Flight Altitude (120 m), Few Obstruction & Medium Interference:10 to 15 km Above Sea Flight Altitude (150 m), No Obstruction & Low Interference:30 to 35 km |
| Storage |
4 GB + 64 GB |
| Physical Channels |
16 buttons, 2 large joysticks, 1 small joystick, 2 scroll wheels, 2 three-position switches |
| Charging Time |
Approximately 4.5 hours |
| Charging Method |
PD 30W |
| Android System |
UniGCS (Standard) |
| Windows |
UniGCS (Standard) |

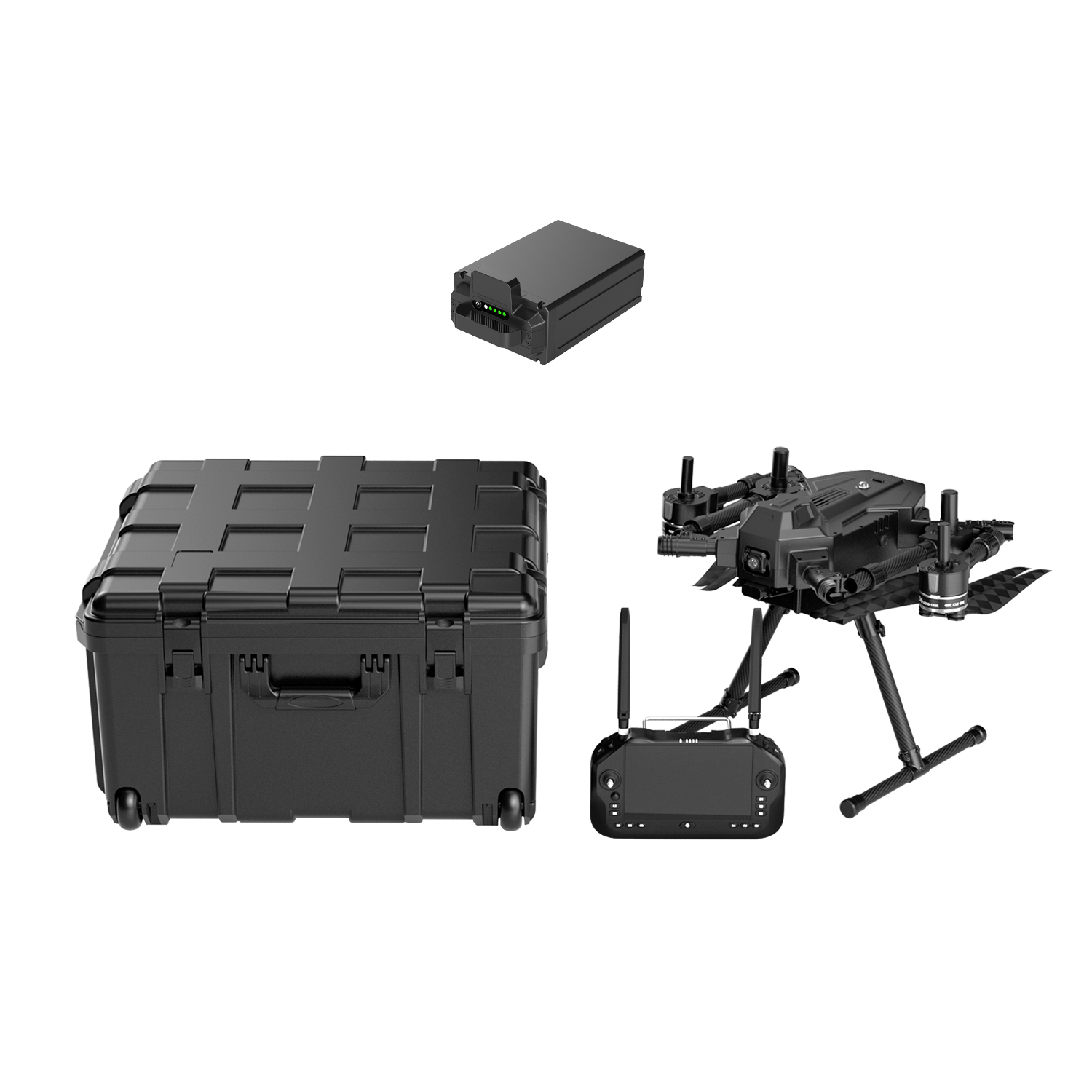

Includes
