About this product

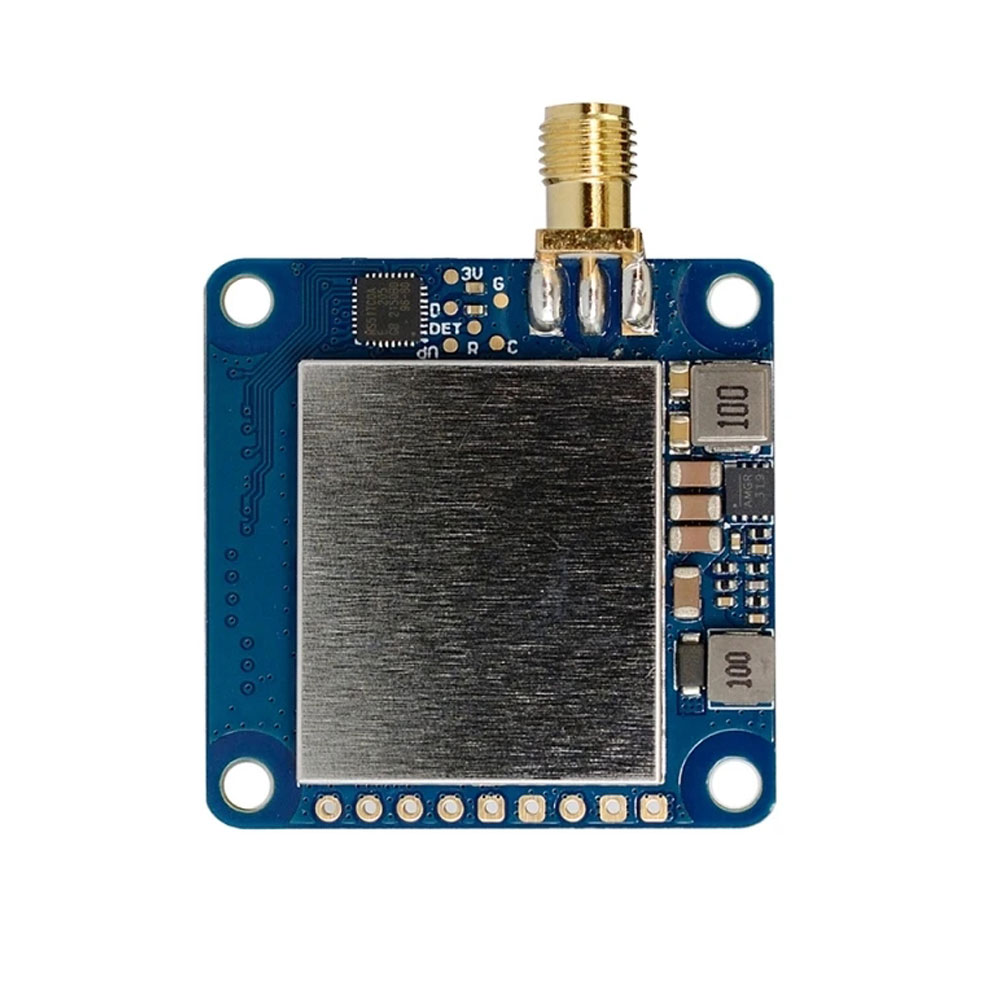

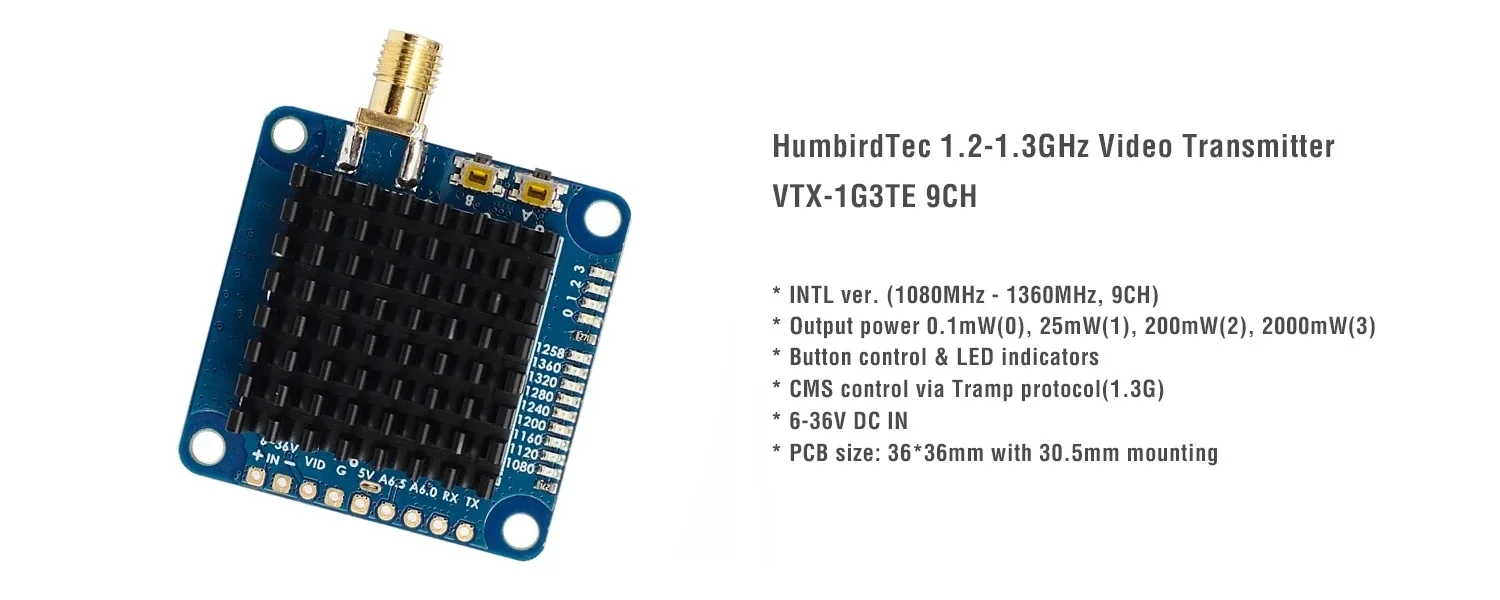

INTL ver.(1080MHz-1360MHz,9CH)
- Output power 0.1mW(0), 25mW(1),200mW(2),2000mW(3)* Button control & LED indicators
- CMS control via Tramp protocol(1.3G)* 6-36V DCIN
- PCB size: 36*36mm with 30.5mm mounting
Specifications
- 9CH_INTL version(1080,1120,1160,1200,1240,1280,1320,1360,1258MHz), -- RF power output: 0.1mw(0,pit mode), 25mw(1), 200mw(2), 2000mw(3) -- CMS control via Tramp protocol variant for 1.3G -- Button control and LED indicators -- 6-36V DC IN (2-8S LiPo)
- Power Consumption:0.04A(0.1mw), 0.1A(25mw),0.2A(200mw),0.8A(2000mw) @12V IN -- Video format:NTSC or PAL
- Audio Subcarrier: 6.5 MHz& 6.0MHz -- RF Connector:SMA

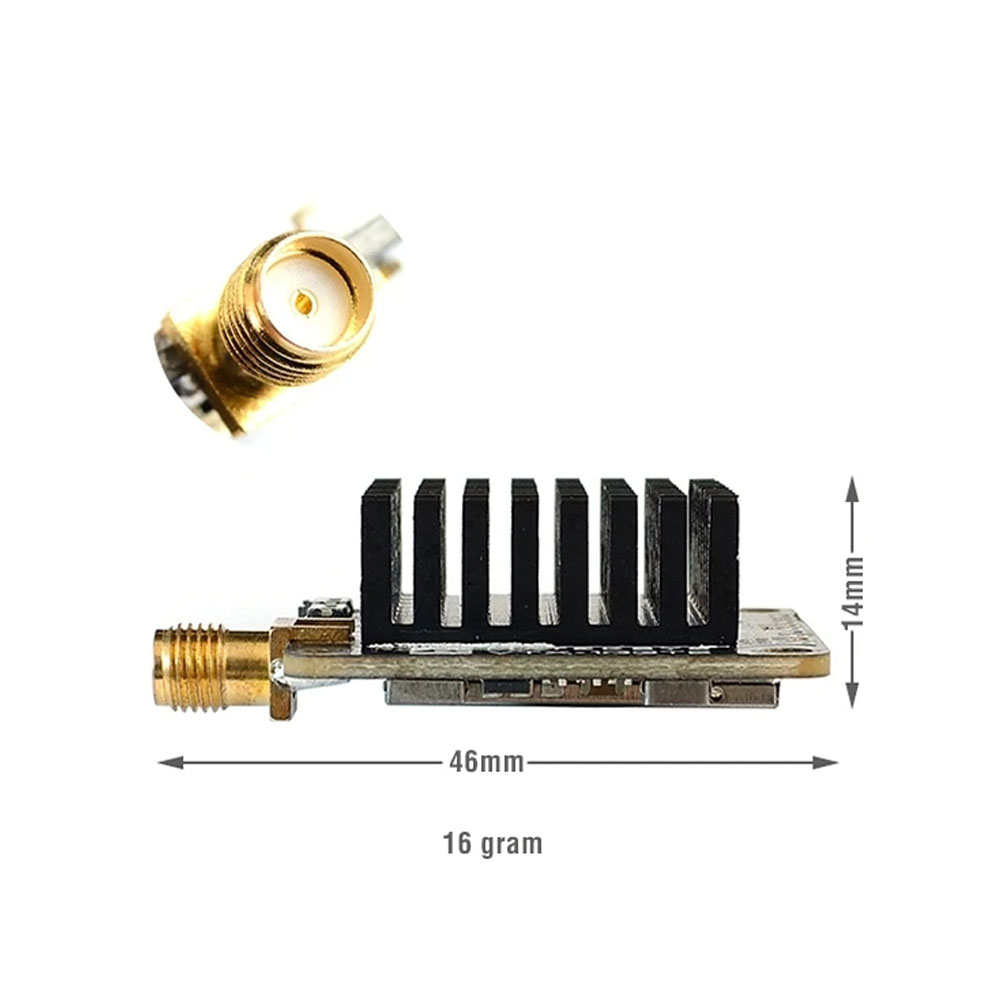

- Weight: 16g (w/o antanna) -- Size: 46*36*14mm
Packing
- 1xVTX-1G3TE

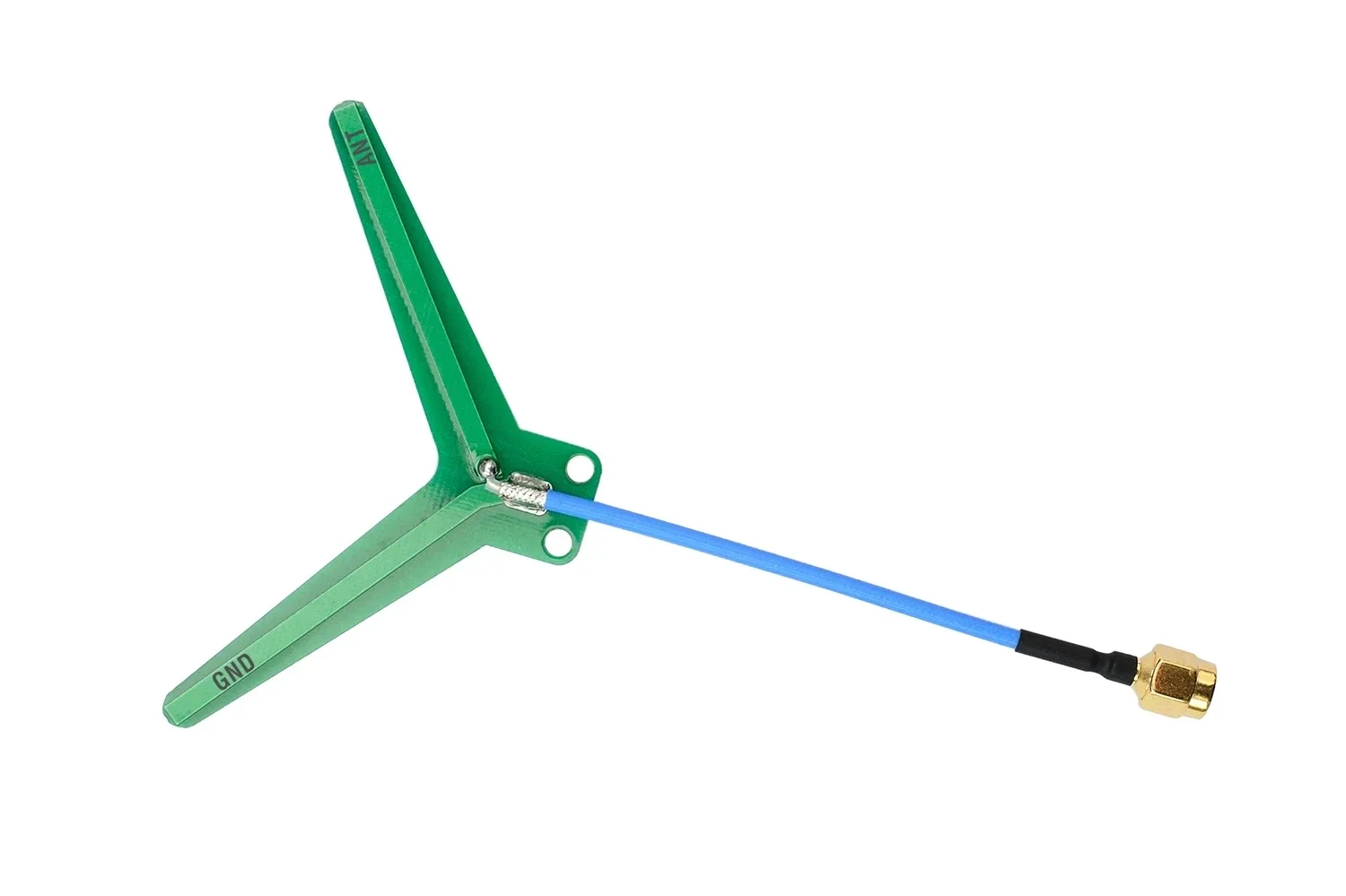

- 1x Dipole antenna_SMA Settings

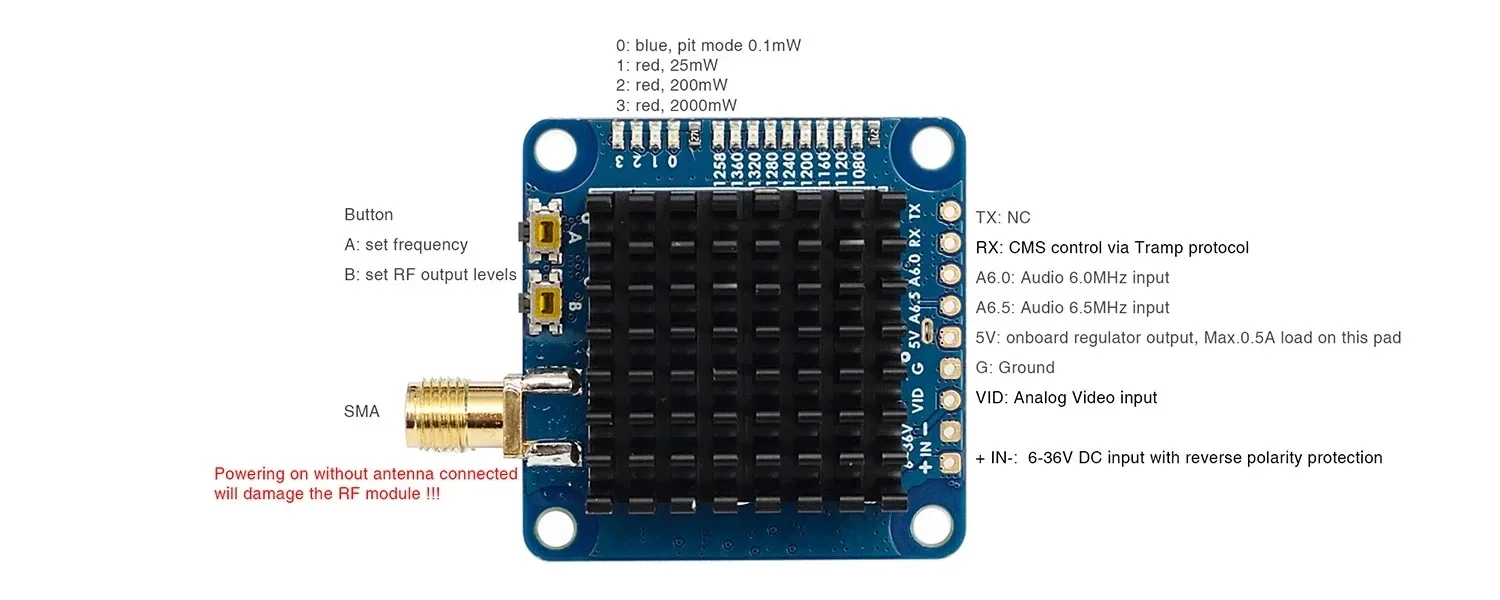

Press button-A to select RF output levels, 0(blue LED)= 0.1mw pitmode, 1=25mw.2=200mw,3=2000mw -- Press button-B to select the frequency.
CMS control
Connect "RX" to any spare UART-TX of flight controller, enable"VTX(Tramp) protocol" on corresponding UART. Copy and paste following command into CLI of BF4.1 or later release vtxtable bands 2 vtxtable channels 8
vtxtable band 1 1G3_AA 108011201160 1200 1240 1280 1320 1360 vtxtable band 2 1G3_B B 1080 1120 1160 1200 1258 1280 1320 1360 vtxtable powerlevels 3
vtxtable powervalues 25200 2000 vtxtable powerlabels 25 200 800
When CMS control is enabled, button control will be overridden.
INAV 6.1.1 or older versions don't support2000mW setup via Tramp protocol
