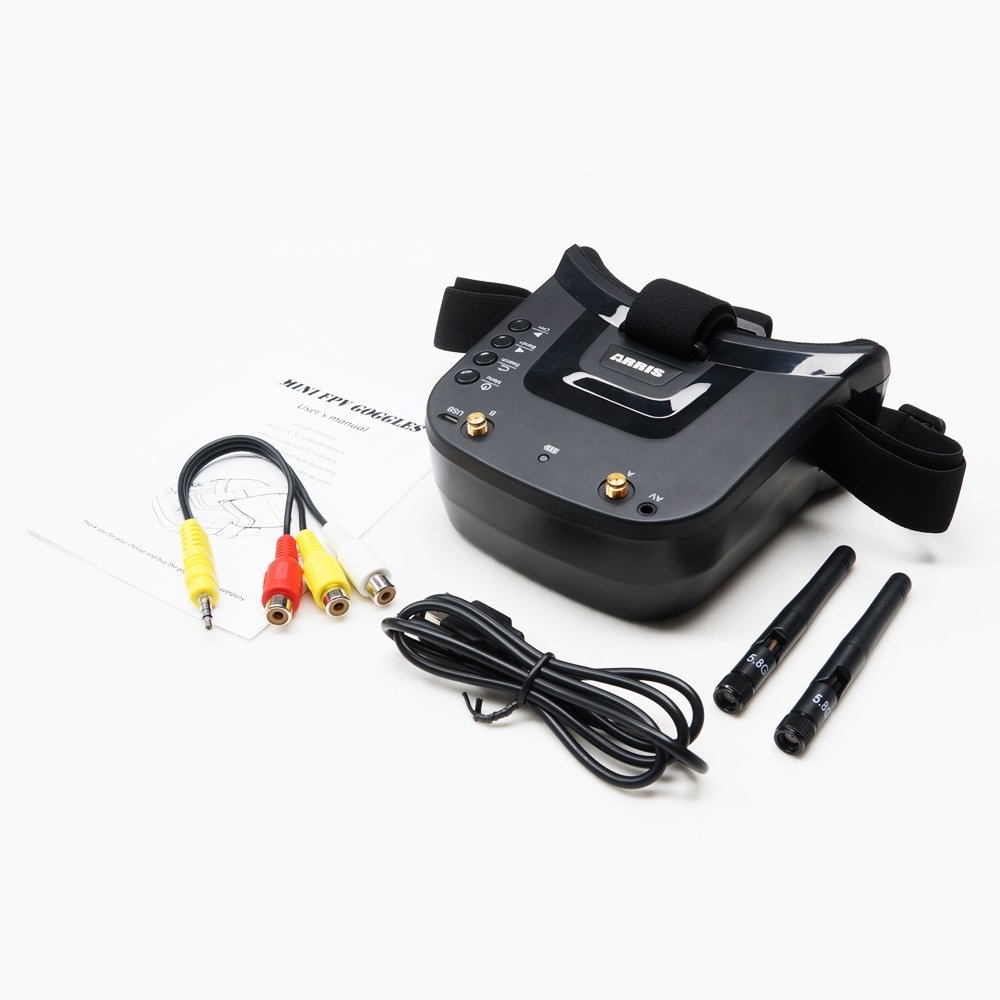

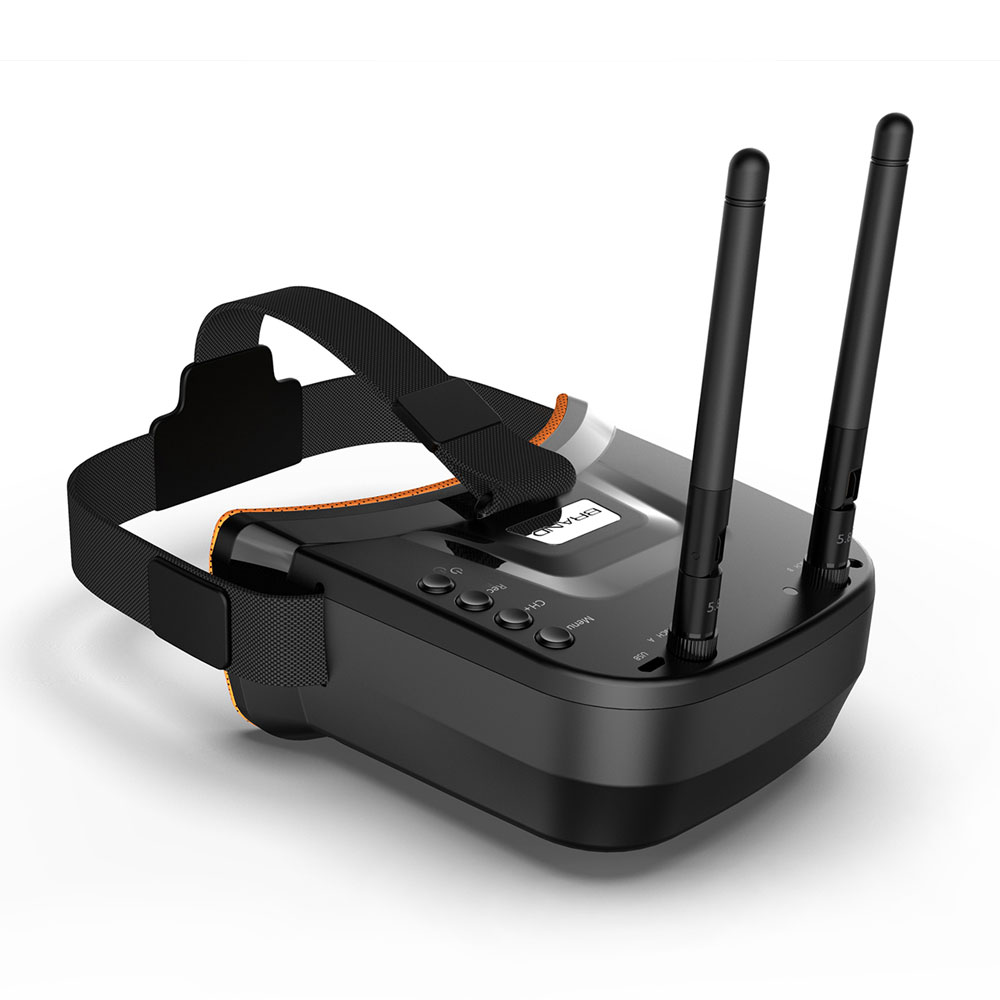

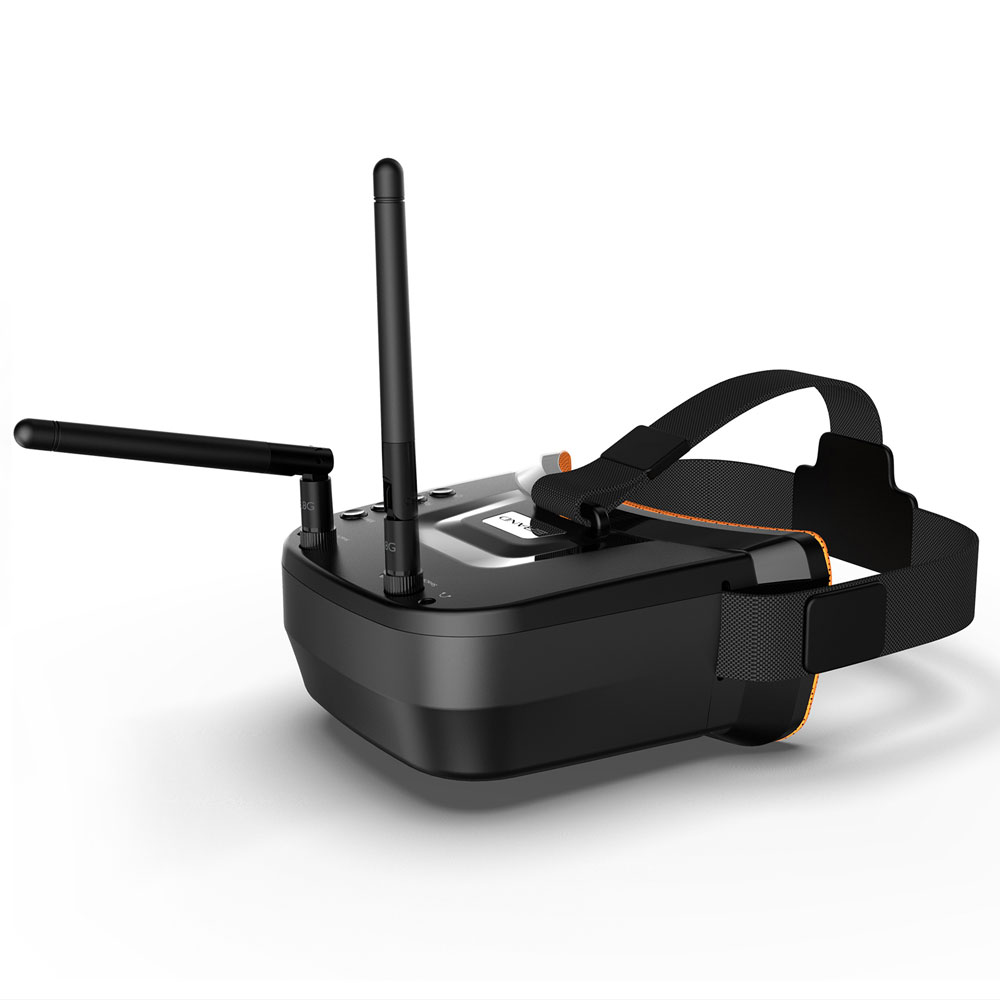

VR009 5.8G Mini FPV Goggles

VR009 FPV Goggles 5.8G 40CH 3 inch 480x320 Video Headset HD DVR Diversity FPV Goggles for Camera Drones & Accessories

Double Antennas

Built-in 3.7V 1200mAh Battery

Support a key search frequency

RaceBand 40 channel Auto-Searching

Real-time video return 5.8G FPV Receiver

Feature:

• Small size and light weight;
• Low power consumption, Working current 360~400mA;
• Double antenna reception to make the signal more stable;
• RaceBand 40 channel, Auto-Searching;
• 3.0 Inch 480*320 dot high brightness LCD screen;
• Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
• Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
• Universal USB charging interface;
• Real-time video return, Very low time-delay;
• Bilingual menu in support of Chinese and English;
• Support external video signal input;
• Support AV signal output (Connect external DVR);

Specification:

Controls Diagram:

Description:

① Key 1: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.

② Key 2: Short press for Auto-Searching (Automatic selection of the strongest channel).

③ Key 3: Short press for Band+ (Change bands A-B-E-F-R circularly).

④ Key 4: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).

⑤ Eye ring: protect the surrounding parts of the eyes, so that the wear more comfortable.

⑥ Micro-USB Charging port: Supports DC5V only.

⑦ Antenna port A: RP-SMA male.

⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.

⑨ Antenna port B: RP-SMA male.

⑩ AV Jack: In RFreceiving mode can output AV signal; In AV mode can enter the video signal.

⑪ Head band: Adjustable headband.

Menu Operation Instructions:

 In normal mode, press Key 1 to enter the MENU mode.

In MENU mode:

① Key 1: Select the option bar.

② Key 2: Return to normal mode.

③ Key 3: Value -.

④ Key 4: Value +.

AV port Instructions:Dimension Diagram:Dimension Diagram:

Not included antennas and headband.Safety instruction:

1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years old.Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard USB charger, charging voltage can only be 5V.
5. AV output and Video input cannot work at the same time,It is forbidden to insert external video in RF receiving mode.
